Landpower Aluminium Ground Mounting System is equipped with components which made of aluminum for mounting on concrete strip foundations or ground screw. This system highlight quick installation, delivered by preassembled parts, it highly minimized the installation processes. It provides a strong and sturdy mounting structure that is suitable for use in high wind and snow load environments.
Technical Information
Installation Site: Open field
Module Type: Framed or Frame-less
Module Arrangement: Portrait or Landscape
Tilt Angle: Design on Request
Foundation: Ground Screw or Concrete
Wind/Snow Load: Design on Request
Main Material: 100% Anodized Aluminum
Fastener Material: Stainless Steel
Design Standard: AS/NZS 1170,DIN 1055, IBC 2006
Warranty: 10 years

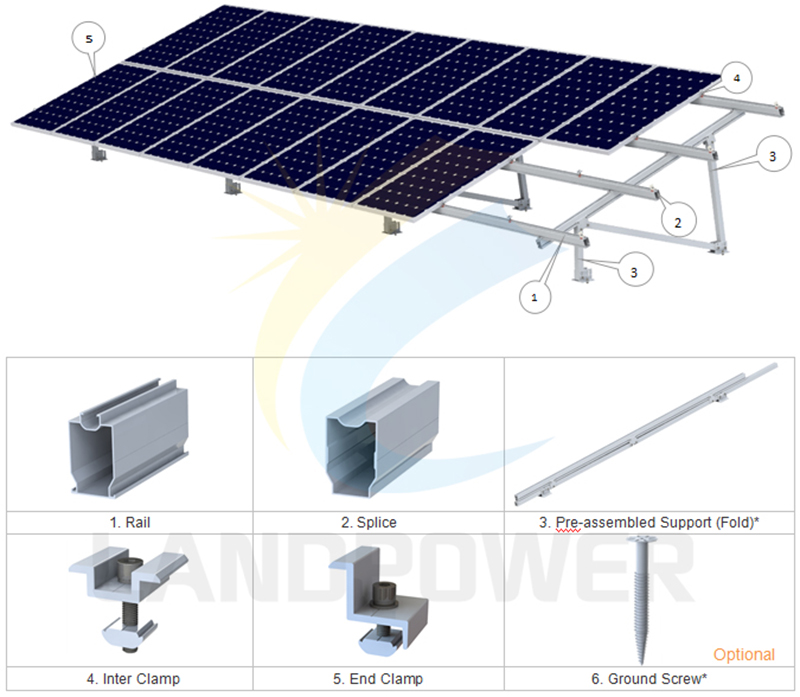

Portrait Ground Mounting Main Components

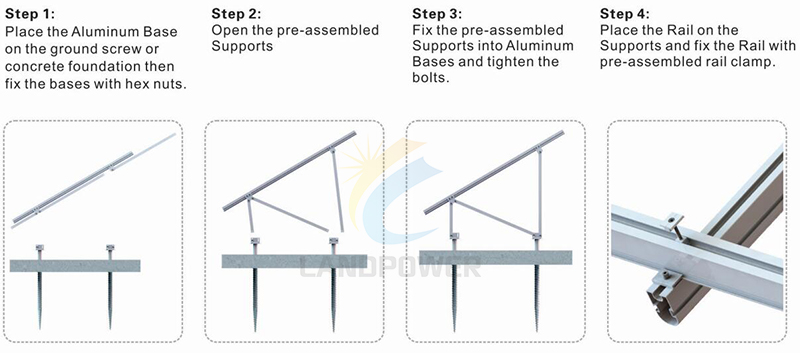

Fast Installation
Just unfold the pre-assembled Triangle and fix with ground screw or concrete foundation,it just takes 4 steps to get the installation completed.

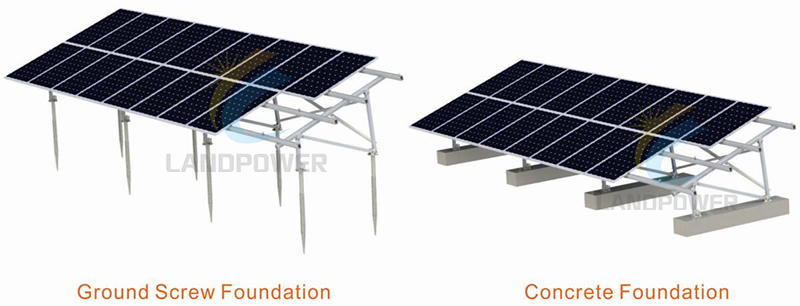

Foundation Option

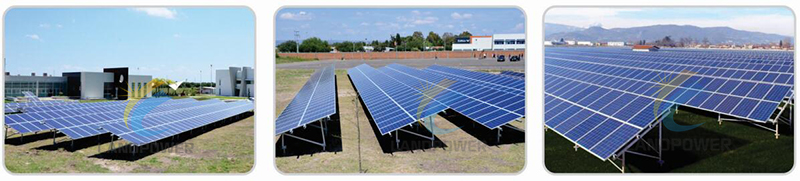

Solar Ground Mounting Project
We engineer and design various ground solar mounting solutions,please feel free to email us your projects details,we will design specific solutions for you.
