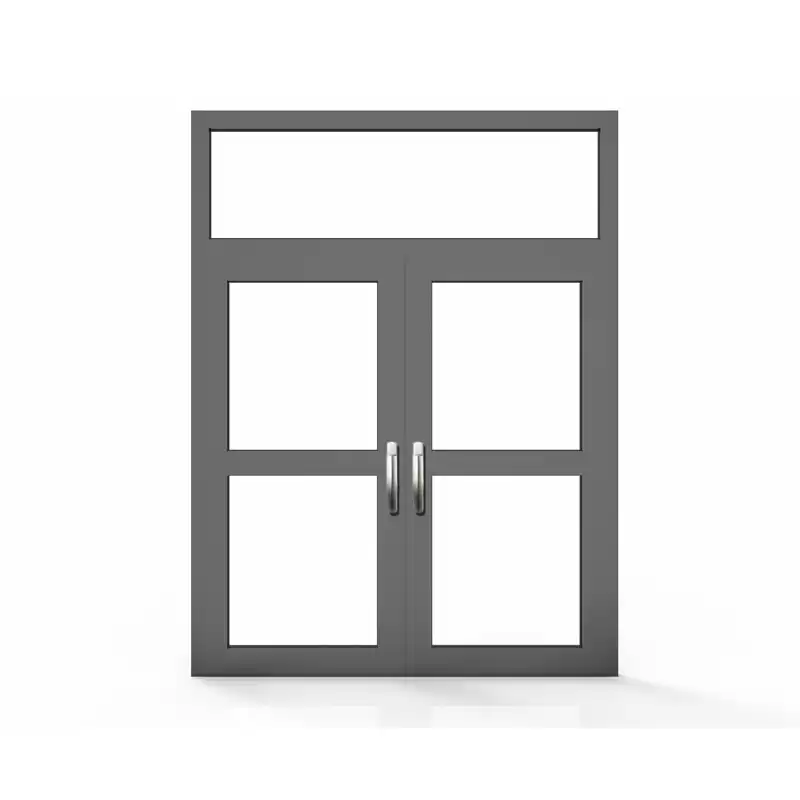

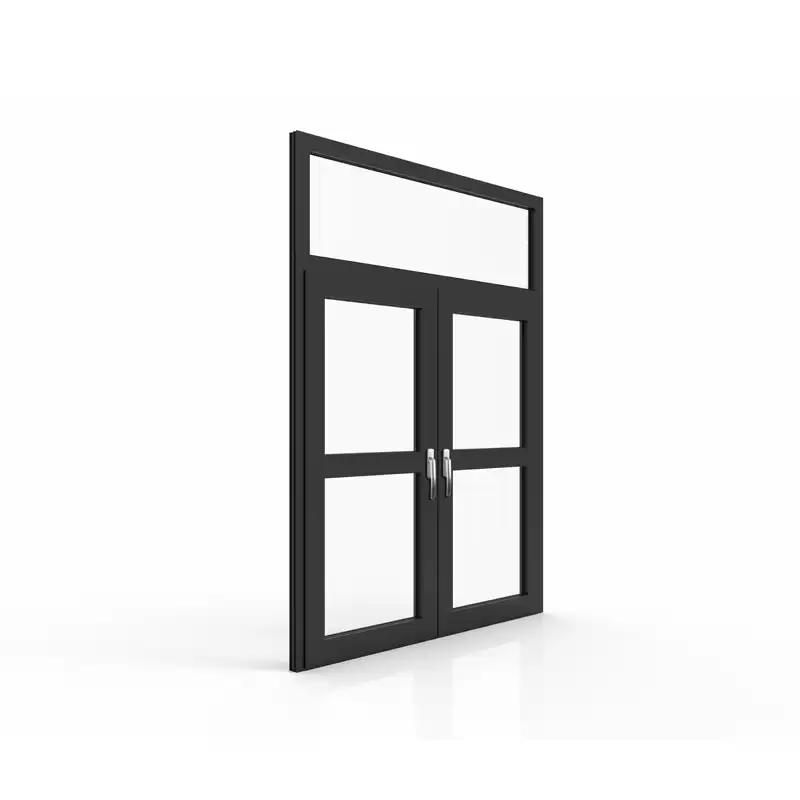

Aluminium Inward Opening Door(kpm46) With Anti-Theft Screen
Our double glazed entry hinged door is a simple and elegant flat-out design that not only works well as an entry door but also works well in public and commercial buildings.
- HD49&125 is a outside inside casement system for elegant door, having multi opening ways of opening outside, inside.
- HD49&125 series can be 3 options depend on customers' different demands and performance. Casement door with security screen and casement door with single/double window.

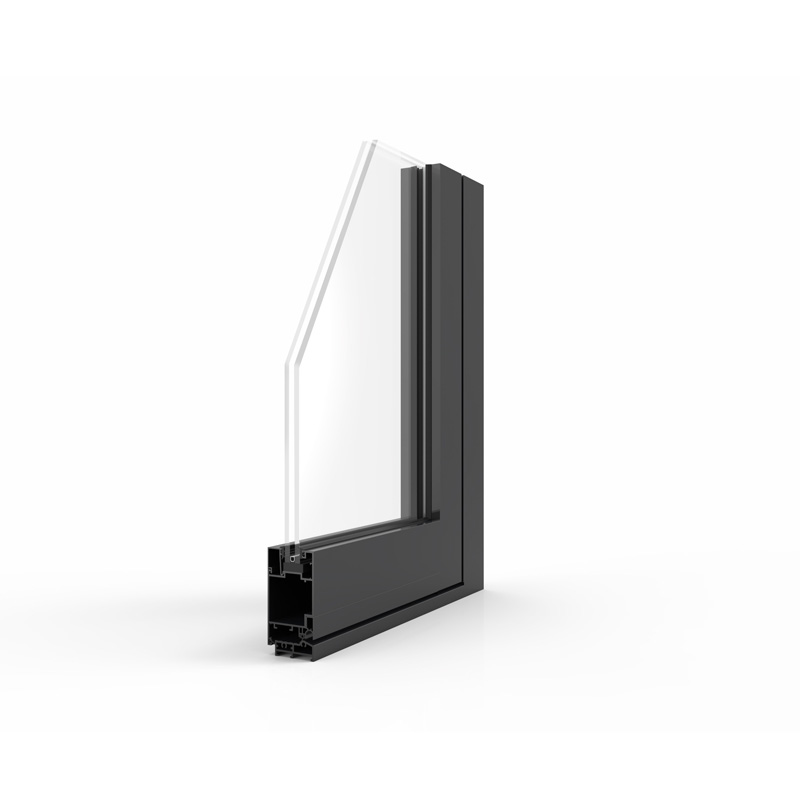

- HD system is a simple and elegant design of flat outward with frame and sash profiles. The max load had reaches to 140kgs per sash.
- It's not only be used as the entrance door but also can be well used in public and commercial buildings.
| Performance |
Heat Preservation Performance
W(m2.k) |
Sound Insulation Performance
(DB) |
Watertight Performance
(Pa) |
Airtight Performanc |
Wind Load Resistance
(KPA) |
|
6+12A+6 Low-E,2.3-2.8,
level 5/6
|
35DB
level 4
|
500PA
level 5
|
level 5 |
4.1KPA
level 7 |
| Parameters |
|
Suitable Width/Height of Sash
(mm)
|
Visible Width/Height
(mm)
|
Aluminium width
(mm)
|
Glass(Thickness) |
|
Hinged Door
-Width 500-1200mm
-Height 1920-3000mm
-Weight 140kg
|
HCD49
Frame Width 65mm;
Sash Width 91mm.
HCD125(with steel fly screen sash)
Frame Width 57mm
Sash Width 91mm
|
HCD49
Frame Depth 49mm
Sash Depth 58mm
HCD125(with steel fly screen sash)
Frame Depth 125mm
Sash Depth 58mm
|
SGU:
5-10mm
DGU:
19-35mm |
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
