Product Item

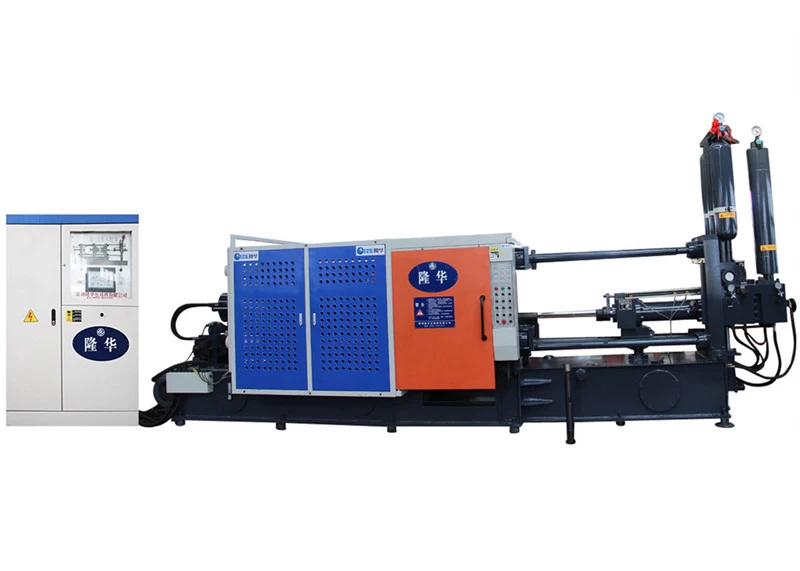

aluminium pressure die casting machine（LH-400T）
Product Description
This die casting machine adopts excellent internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
LH SERIES OF STANDARD PARAMETER TABLE (LH-400 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
4000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
620*620
|
|
TIE BAR DIAMETER
|
MM
|
￠125
|
|
DIE OPENING STROKE
|
MM
|
450
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
415
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
200
|
|
INJECTION POSITION
|
MM
|
0 -- 175
|
|
PLUNGER DIAMETER
|
MM
|
￠60----￠80
|
|
INJECTION STROKE
|
MM
|
500
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
141/104/80
|
|
CASTING FIANGE PROTRUSION
|
MM
|
12
|
|
CASTING FIANGE DIAMETER
|
MM
|
130
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
1008
|
|
LNJECTION WEIGHT(AL)
|
KG
|
5
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
300～750
|
|
EJECTOR FORCE
|
KN
|
180
|
|
EJECTOR STROKE
|
MM
|
140
|
|
MOTOR CAPACITY
|
KW
|
18.5
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
7.3*2*2.8
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
16.5
|
|
OIL TANK CAPACITY
|
L
|
1000
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Peripheral robot supporting die casting machine include:
Automatic Ladling Machine
Servo Sprayer
Automatic Extractor
Conveyor
Particles machine
Company Information
Longhua Die Casting Machine Co., Ltd is a professional high-tech enterprise engaged in design,manufacture and sale of cold chamber die casting machines and die-casting peripheral equipments.
We have 37 years experience in "LONGHUA” brand die casting machine production and have many engineers who are responsible for the technical improvement in order to provide better machines for our customers.
Longhua’s quality goal is that “Today’s quality means tomorrow’s market”.
RFQ
Our customers
Customers from more than 60 countries and regions all speak highly of Longhua brand die casting machines.
Contact Us
If you have any questions please contact us immediately.
