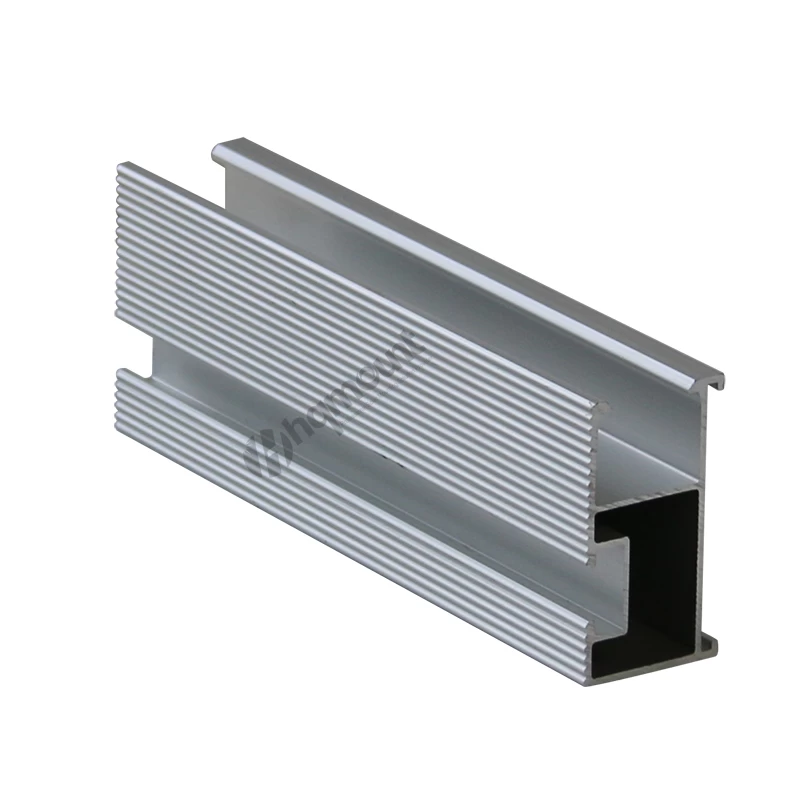

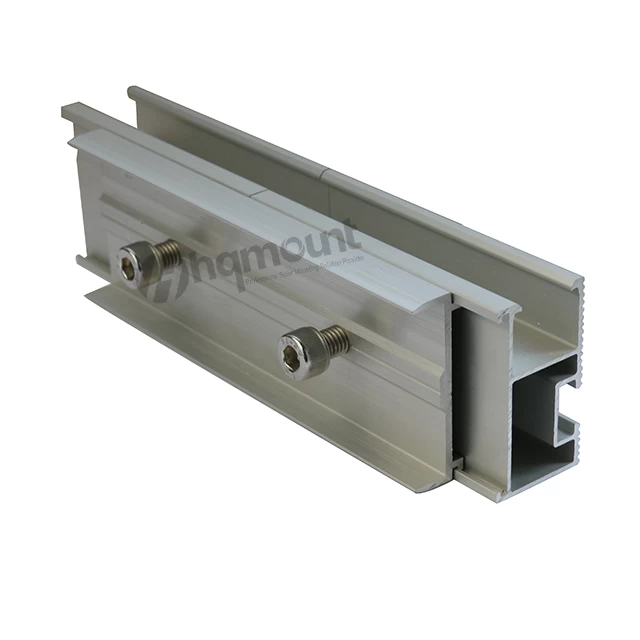

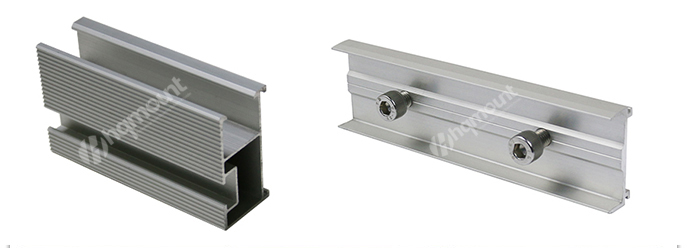

W52 Aluminium rail is high strength extrusion aluminium 6005-T5 material. The reduce waste design and change the position of connector to increase strength design can ensure the lower cost. It fit on the roof site can be matched with L feet and a variety of Klip Lok.
Packaging&Delivery
Lead Selling Units:Multiple of
Package size per batch: 100X11X11 cm
Gross weight per batch:6.0 kg
Package Type:kraft paper cartons,8pcs/cartons, wooden pallet, container.
Lead Time :
|
Quantity(Meter)
|
1 - 10000000
|
>10000000
|
|
Est. Time(days)
|
10
|
To be negotiated
|
Product Description
HQ Solar panel mounting rails are suited for different solar panels. Less material but stronger.
Easy and quick to install, save your manpower and cost.
Features as below:
Quality: Anodizing layer ≥ 12 μm
Tensile Strength≥ 260N/MM2
Non-proportional elongation strength ≥ 240N/MM2
Elongation after break ≥8%
SGS, ISO approved
|
Product Name
|
Solar Panel Mounting Rails.
|
|
Material
|
Aluminium 6005-T5
|
|
Color
|
Sliver or customized
|
|
Standard
|
AS/NZS1170
|
|
Applicatio
|
Solar mounting system
|
|
Specification
|
1000m/2000m/3000m, can be customized
|
|
Wind speed
|
60m/s
|
|
Snow Load
|
1.4KN/m2
|
|
Warranty
|
12 year
|
|
Service life
|
25 years life time.
|

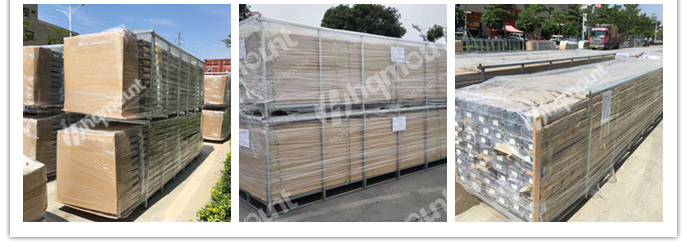

Packing
