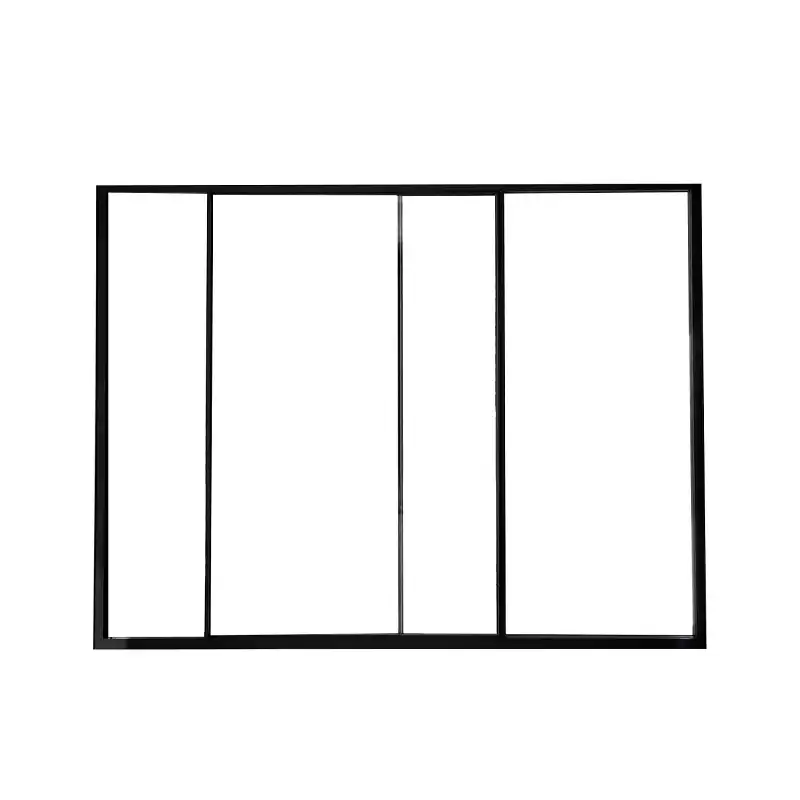

Aluminium Slim Sliding Door with 38mm Thick Double Glass and Heavy Duty Bottom Rollers
HOMI aluminium glass sliding door design offers flexibility, where one panel can move while the other stays static. You could also have both panels of the door slide independent of each other. These residential aluminum sliding glass doors offer wide, uninterrupted views and save space as they won’t encroach on your balcony or interiors of a home. The commercial aluminum sliding glass doors move on 2 or 3 or even 4 tracks. Customization is possible: glazing & glass options, robust hardware, mesh, grill, choice of colours and sizes.
- Highly durable and can withstand extreme temperatures
- This double glass sliding door made from high performance aluminium can endure heavy wind load&ensures safety even when subjected to severe weather condition.
- Our range of exceptionally slim framed, high performing sliding glass door systems are designed to offer the largest structural openings with the most minimal design. the systems are manufactured to the highest specification, on a completely bespoke basis, offering unique designs and adaptable solutions to suit your project requirements.
| Heat Insulation W(m2.k) |
2.5
level 5 |
| Sound Insulation(DB) |
42DB
level 4 |
| Water Tightness(PA) |
500PA
level 5 |
| Air Tightness |
level 6 |
| Wind Load(KPA) |
4.0KPA
level 7 |
| Sash Width/Height(mm) |
Width 1000-3000mm
Height 1800-3500mm
Weight 500KG(MAX) |
| Visible Width(mm) |
Frame Width 40mm
Visible Sash Width 30mm
Visible sash width 20.6mm |
| Depth (mm) |
Frame Depth 125mm
Sash Depth 57mm |
| Glass Thickness(mm) |
SGU:8-12mm
DGU:19-38mm |
| Maximum size |
10meters wide*5meters high |
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
