Truck description:
CNCSC Aluminium alloy fuel tank semi trailer(include oil tanker trailer,tank semi trailer,fuel tank trailer,trailer,diesel semi trailer,gasoline semi trailer,oil semi trailer,oil fuel tank semi trailer) is applies to transport different type of media,such as chemical liquid ,water,crude oil,lubricant, gasoline,diesel,propane,coal oil,and so on.
Structure:
Chassis frame,tank body,landing gear,euro standard manholes,kingpin,emergency venting device,fire extinguisher,anti-slip walkway,ladders,etc.
Advantage:
1.Nice and suitable tank shape: Straight-through structure or Goose neck tank.
2.FUWA ,BPW,and other famous brand Axles.
3.FUWA ,JOST,and other famous brand Landing gear,two-speed manually operating, heavy duty.
4.Different King pin size : 2˝ or 3.5˝ ( 50# or 90 # ).
5.Painting: beautiful and durable.Pretreatment is first step,mechanical sandblasting to remove rust before painting,then two-component paint, two layers of primer and two layers of coat painting.
6.Steel net lay down floor anti slide
7.Safety Anti-static System
Technical Specification:
We are able to custom manufacture Aluminium truck in a wide range of sizes and capacities as per customers' requirement.

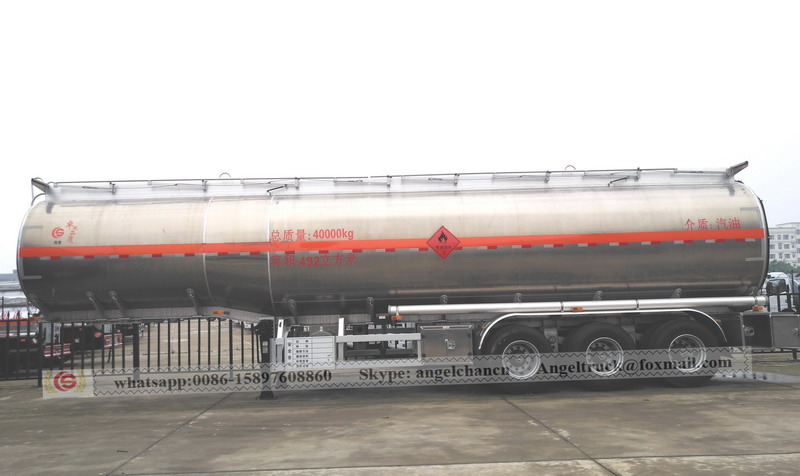

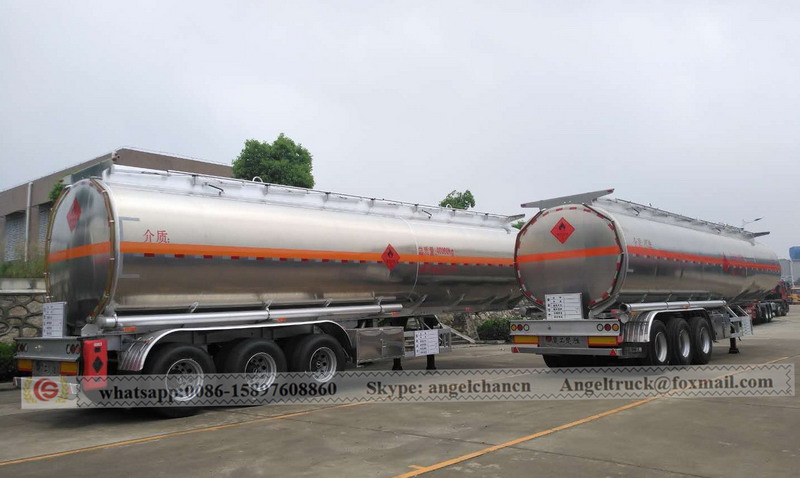

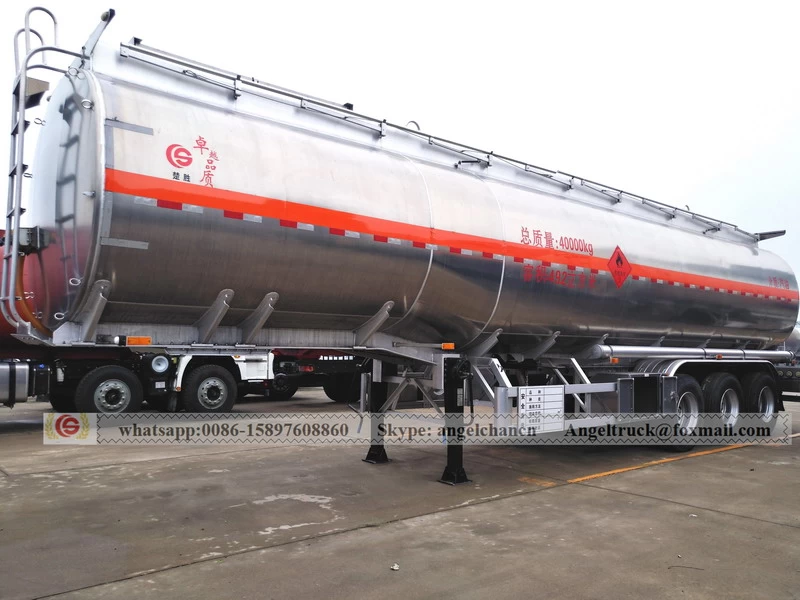

Aluminium tank semi trailer ( 49,500 Litres)
|
Truck
Description
|
GVW (kg)
|
40000
|
|
Kerb weight (kg)
|
6990
|
|
Axles
|
3 axles , 13 Ton,FUWA
or BPW brand,or as your request
|
|
Overall
dimension (mm)
|
Length
|
12800
|
|
Width
|
2500
|
|
Height
|
3900
|
|
Tank dimension (mm)
|
Length
|
12300
|
|
Width
|
2495
|
|
Height
|
2070
|
|
Tank and
skeleton
|
Wheel base(mm)
|
7000+1360+1360 or as request
|
|
Tank material
|
Aluminium alloy
|
|
King pin
|
90# or 50 #
|
|
Landing gear
|
28T
|
|
Tire specification
|
11.00-20,12.00-20,12.00R20 for option
|
|
Paint spraying method
|
Overall spraying machines
|
|
Ladder
|
1 unit,flat steps, fixing
|
|
Fire Extinguisher Carrier
|
2 units, include 2 units dry powder type fire extinguisher inside
|
|
Tool Box
|
1 pc
|
|
Other remark
|
Above specification is just for reference,please send us your request details.
|
|
Contact us
|
Ms.Angel chan E-mail:Angeltruck@foxmail.com
whatsapp: 0086 15897608860 Skype: angelchancn
|
Optional parts and more information for your reference
1.Reliable API valves.
2.WABCO Valve or other brand .
3.Oil pump can be installed in traction head.
4.Tank can be divided into several compartments to transport different fuels.
5.Gas recovery system,sea valve,fuel charging and discharging system.
6.Anti-corrosion painting for inner tank.
