Product description

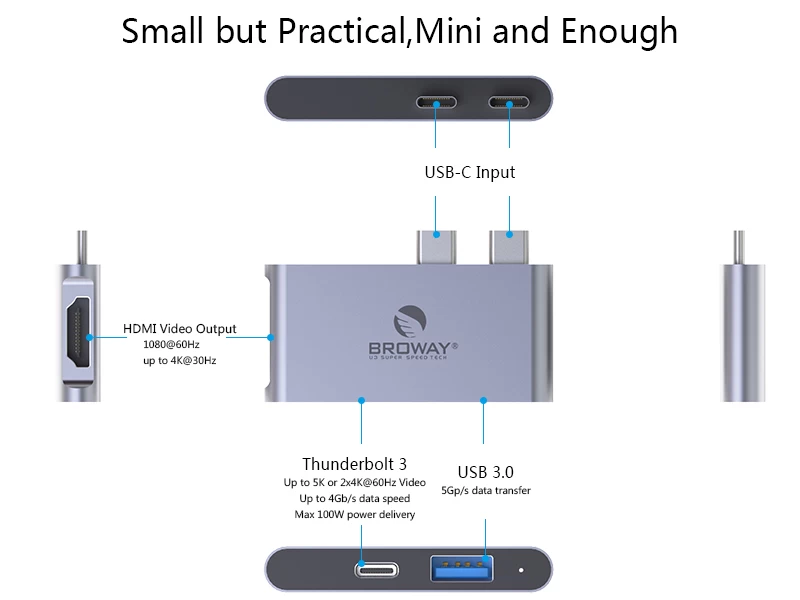

1.This Usb C adapter enabled 1 HDMI ports, 1 standard USB 3.0 ports, USB-C power delivery pass though charging port - all in one hub.

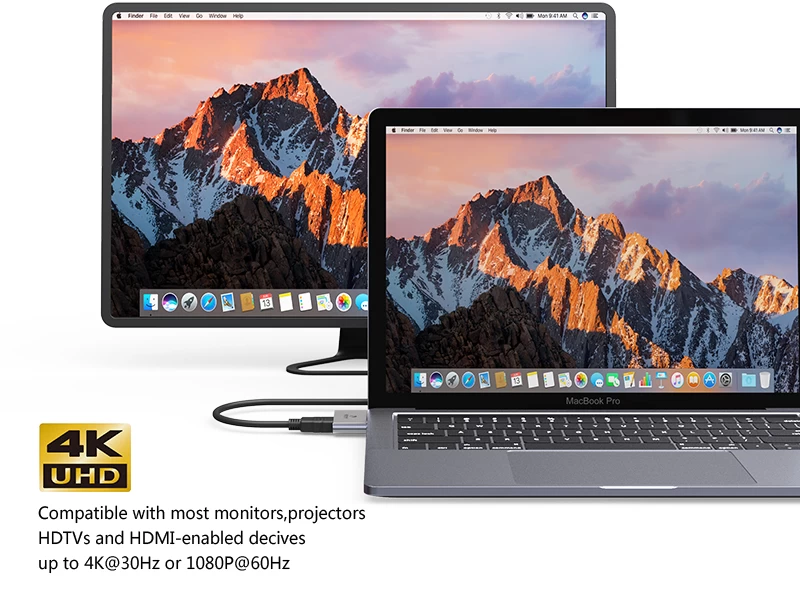

2.Support the HDMI ports allows to mirror or expand your new Macbook Pro/Macbook Air to 2 monitors, TTVs,or projectors simultaneously with resolution up to 4K@30Hz or 1080p@60 Hz, supports display 2 screens in mirror or expand mode.
3.USB 3.0 Ports at 5 Gbps:Allow you to connect keyboard, mouse, thumb drive to your laptop; provide high speed rate of up to 5Gbp.

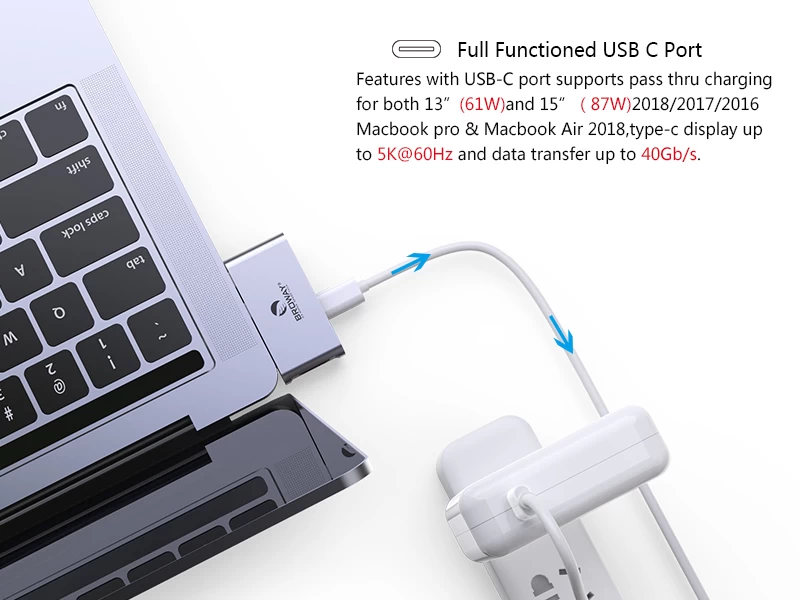

4.Power delivery port:Power is shared between all dock-connected USB-C devices and adjusted based on needs,This USB C adpter delivers about 52W for charging a connected laptop and 8W for powering the hub
5.Specially Designed for Macbook Pro :This USB C Docking Station fits perfectly on MacBook Pro 2019/2018/2017/2016 13&15'', MacBook Air 2019/2018
Interface
1*USB-A 3.0
1*HDMI@30HZ
1*PD 3.0
Details Display
Specification
|
Brand:
|
Broway
|
Item Name:
|
BD31117E
|
|
Color:
|
Sliver &Grey
|
Material :
|
Aluminum+Acrylic
|
|
Product size:
|

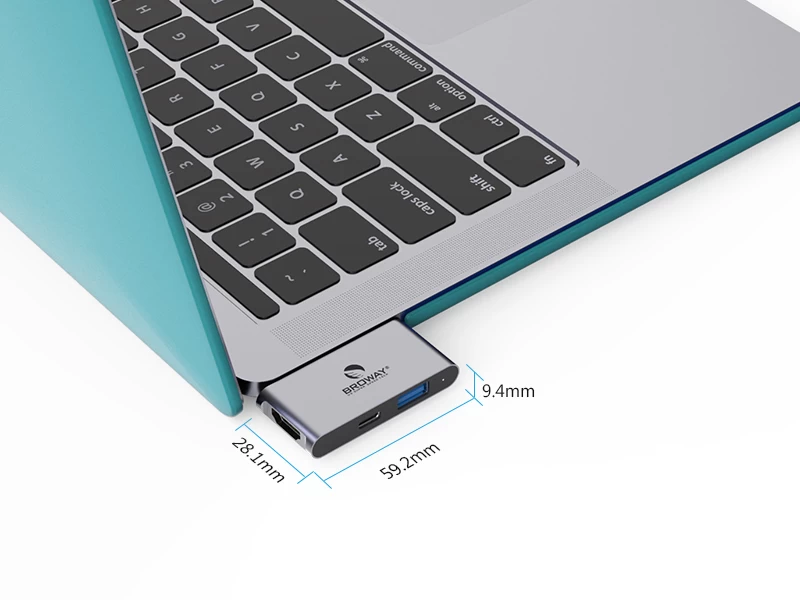

59.2*28.2*9.4MM
|
Working Temperature:
|
0℃~40℃
|
|
Weight:
|
---
|
Storage temperature:
|
-20℃~60℃
|
|
Supported Systems:
|
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
|
Humidity:
|
25%RH.~93%RH.
|
|
Incompatible Devices:
|
iPad Pro 2018；Nintendo Switch; Apple USB Super Drive
|
Compatible Devices :
|
Macbook Pro 2016/2017/2018,New Macbook Air
|
Notice
1, For a stable connection, connected devices should not exceed a combined current of 900mA.
2, Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended that you connect only one HDD/SSD at a time.
3, 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may not be supported.The extended cable is 0.5 ft long.
Service
Warranty:14 month warranty
Service: OEM &OEM Support is available
FAQ
1,Does it support 4K@60hz or just 30hz?
Supports 4K@30hz.
2, This type-C PD Port can be used for data transfer as well ?
No,it just be used for charging 60W max
3,Will this usb c adapter work well with all ports together?
Yes,all ports work perfectly at the same time
4, Does this require driver install ?
No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
