Description

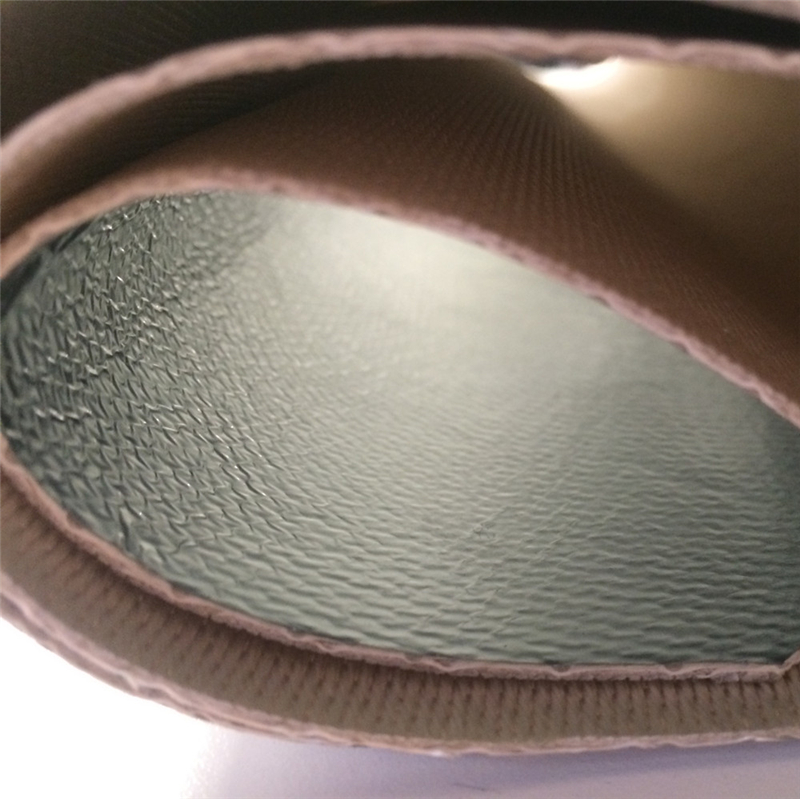

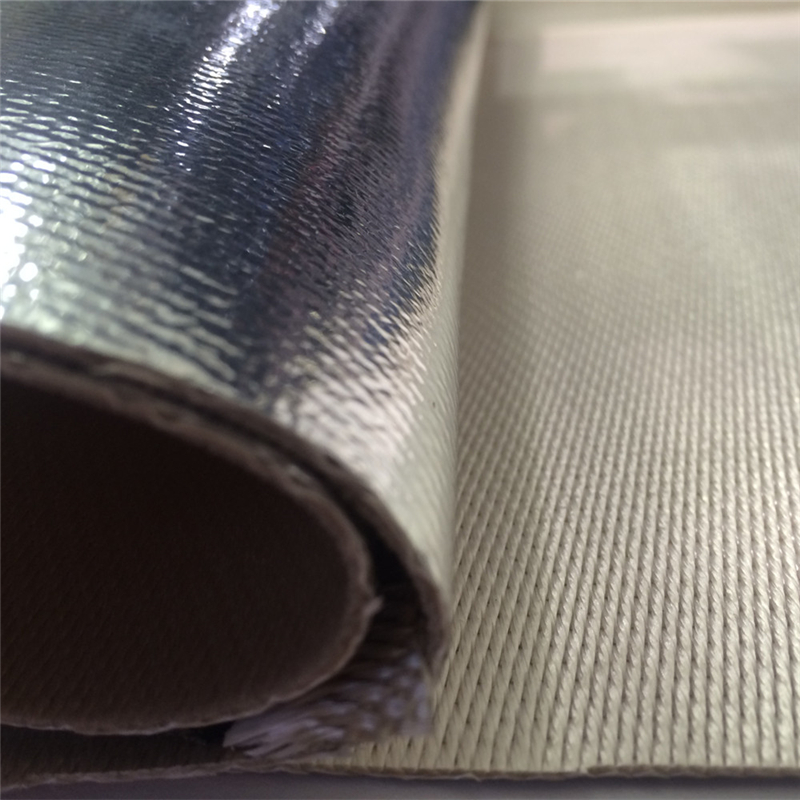

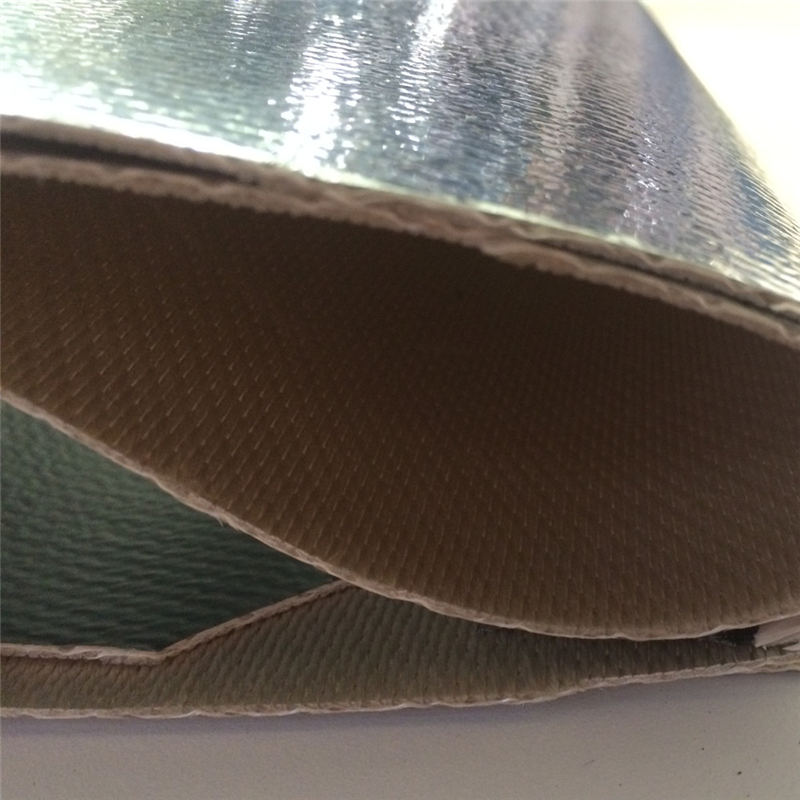

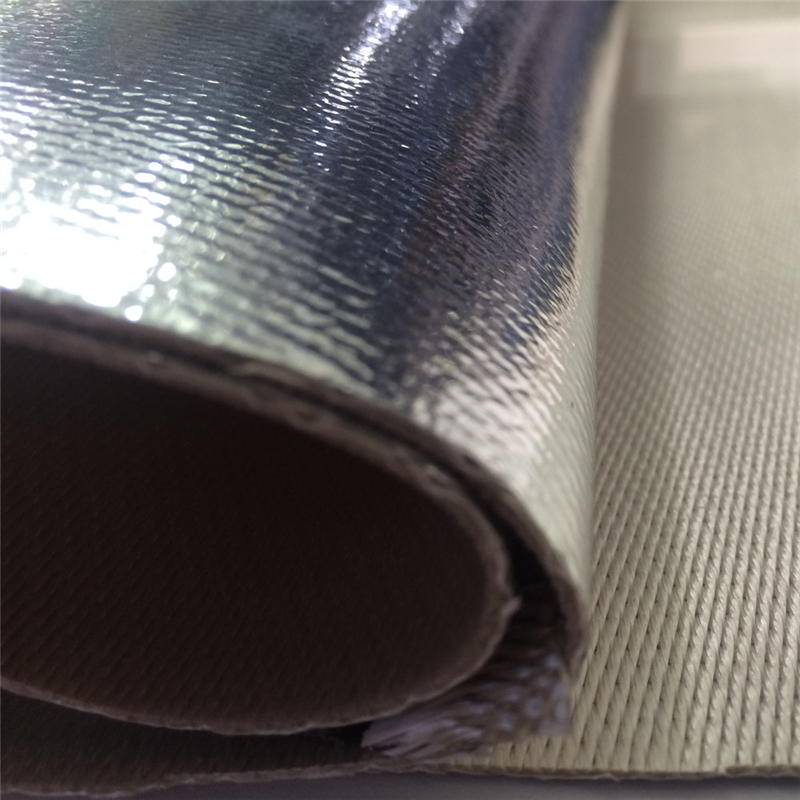

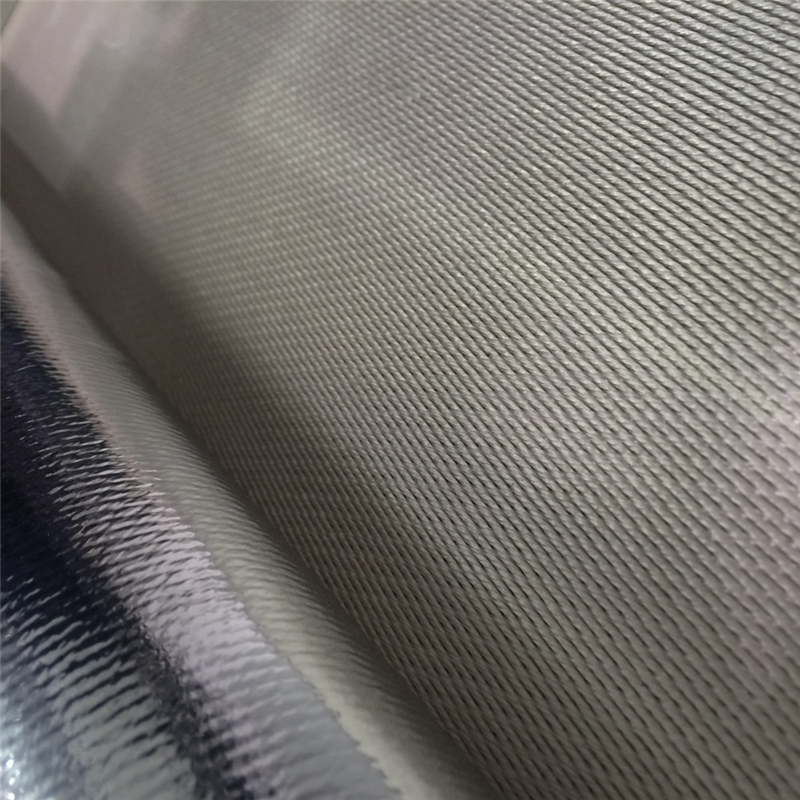

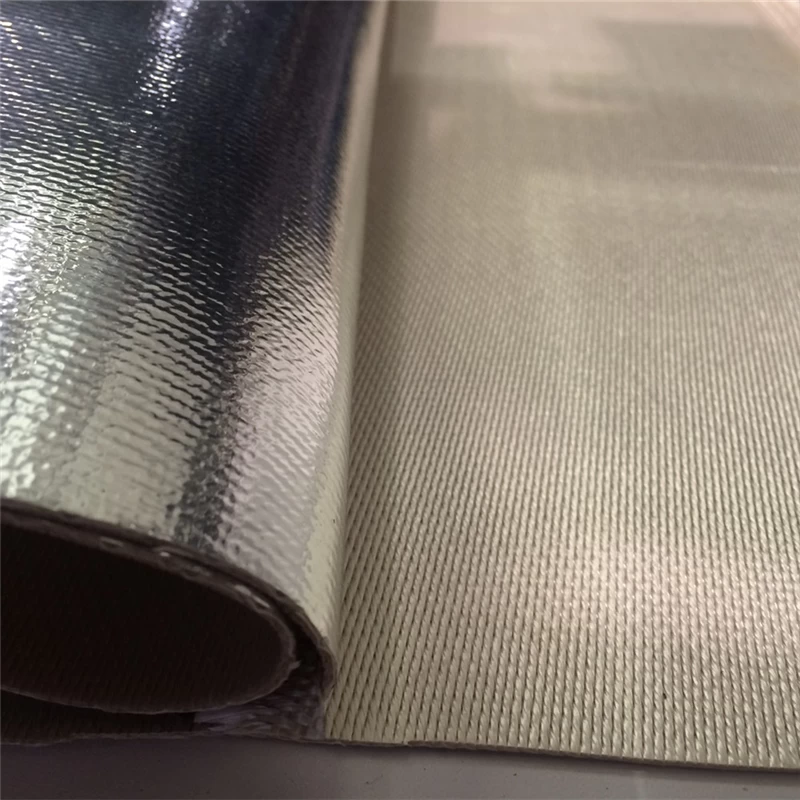

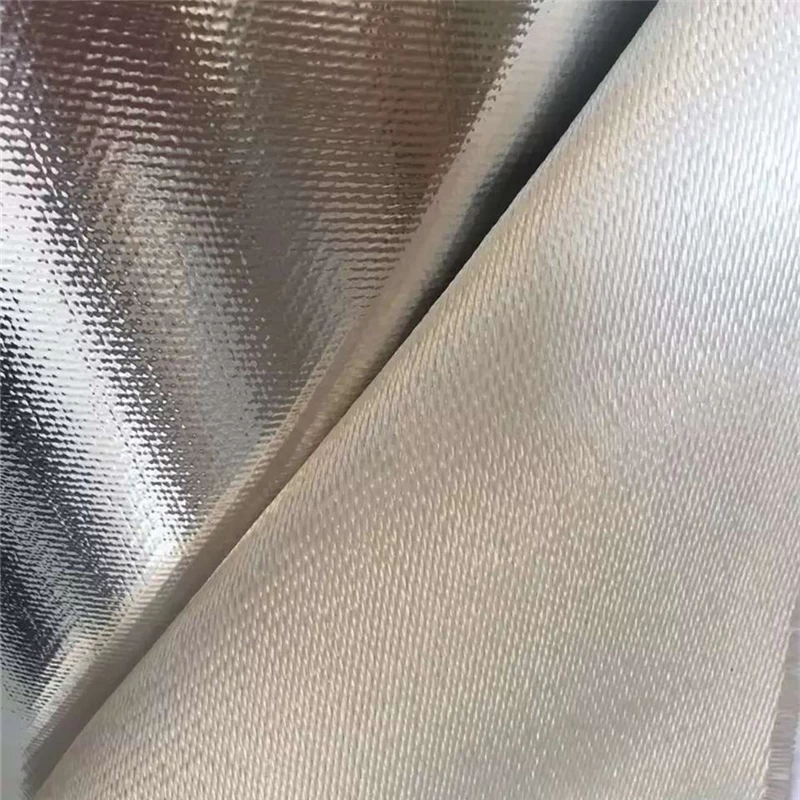

This Aluminized Silica Heat Shield Barrier is made from woven silica and aluminum mylar finish.
This shield is capable of reflecting 90% of radiant heat. Face the aluminized side toward the source of radiant heat to shield heat away.
Feature
Aluminized radiant heat barrier can withstand up to 2000 degrees F of radiant heat and can withstand direct contact up to 1200 degrees F.
Application
Use heat barrier on Firewall, floor pan, under cab (above: muffler, catalytic convertor, DPF, exhaust system), fuel cel.
Specifications
|
Datasheet
|
|
Material
|
Aluminum, silica
|
|
Continuous Temperature
|
2000 °F
|
|
Melt Temperature
|
3000 °F
|
|
Standard Thickness
|
0.75mm
|
|
Thickness
|
0.75mm, 1.3mm
|
|
Length
|
MAX 50 meter/roll
|
|
Color
|
Silver
|
|
Cutting Tool
|
Scissor
|
|
Part Number
|
Description
|
|
281212
|
12 in × 12 in
|
|
281224
|
12 in × 24 in
|
|
281280
|
12 in × 50 in
|
|
281818
|
18 in × 18 in
|
|
282424
|
24 in × 24 in
|
|
282448
|
24 in × 48 in
|
|
282640
|
26 in × 40 in
|
|
283658
|
36 in × 58 in
|
|
284036
|
40 in × 36 in
|
|
284050
|
40 in × 50 in
|
|
284046M
|
40 in × 164 ft
|
Notes:
Special size and color upon request.
