Description

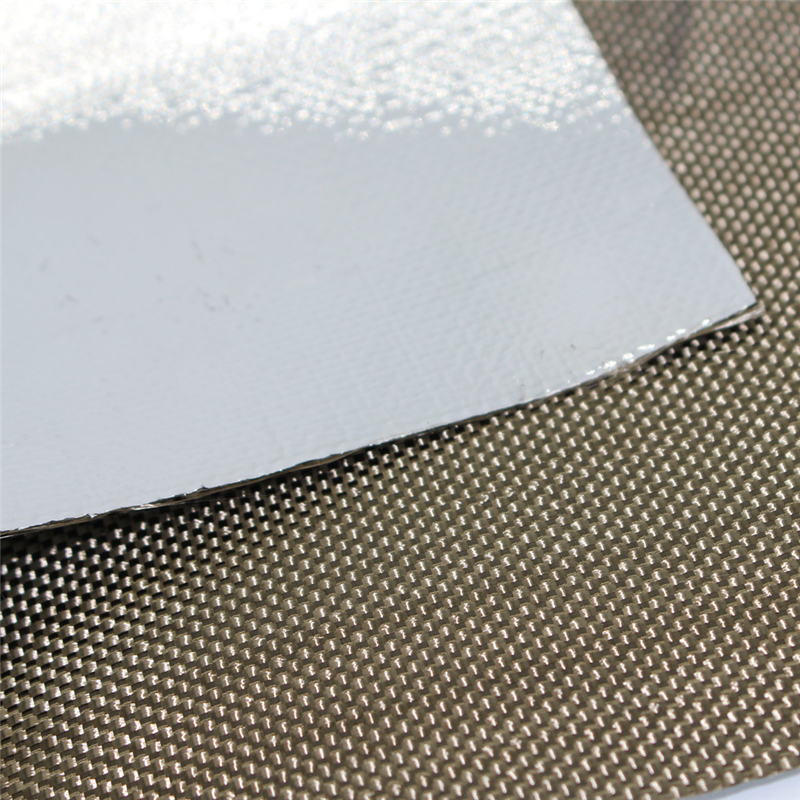

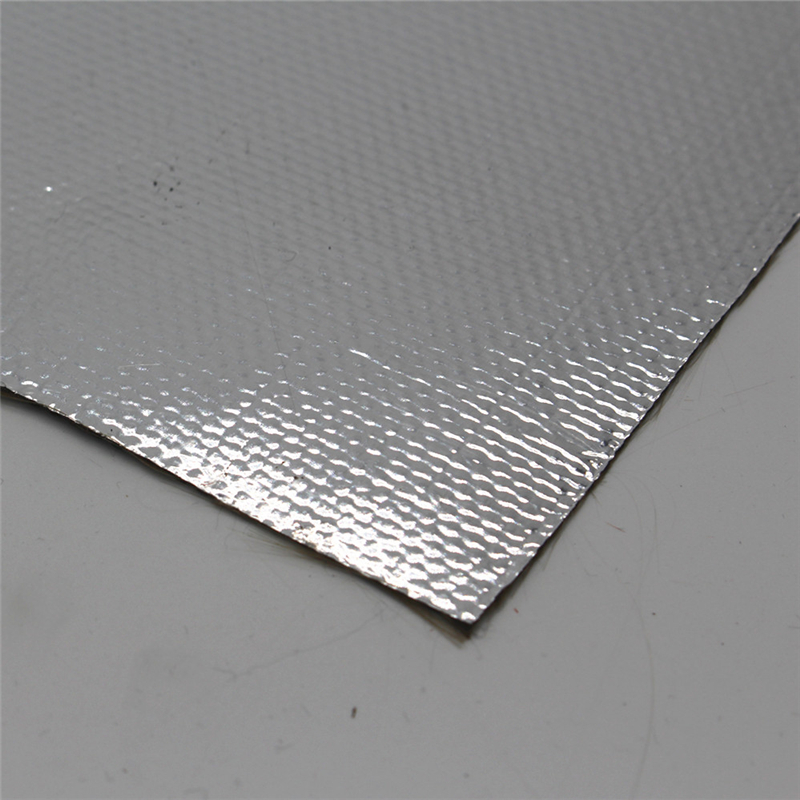

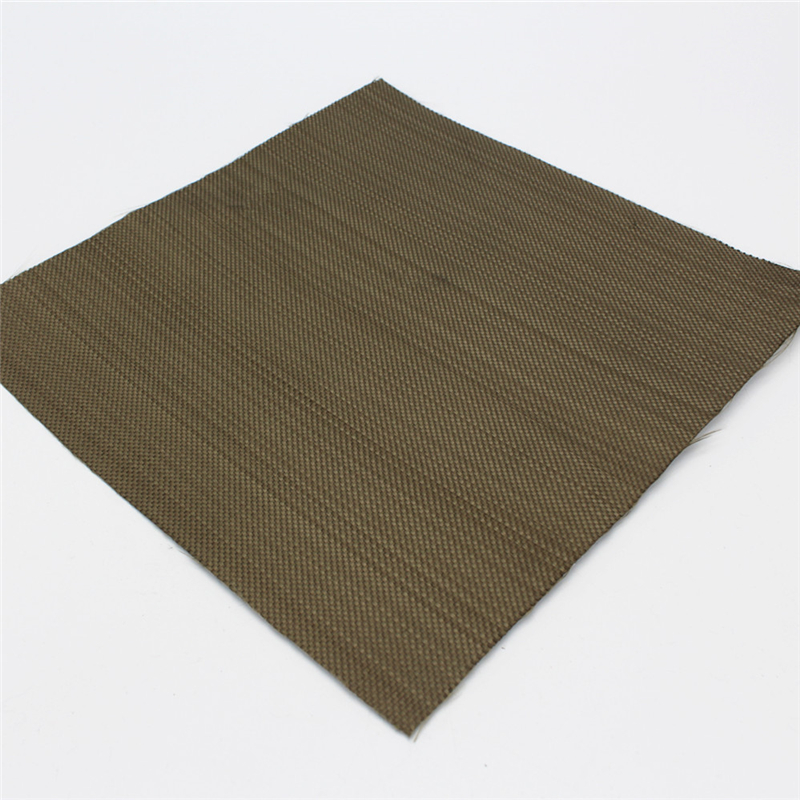

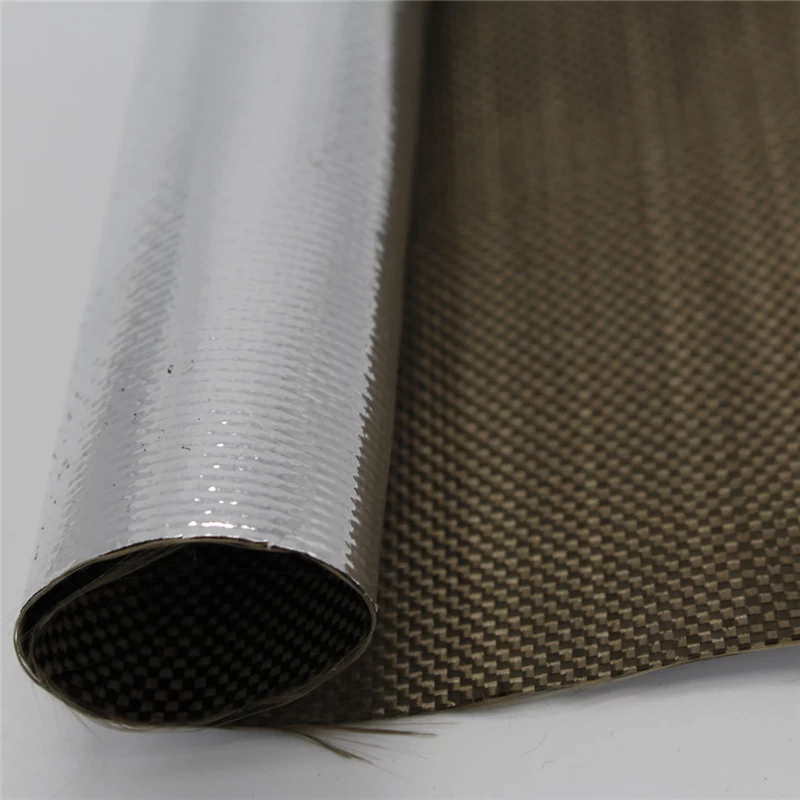

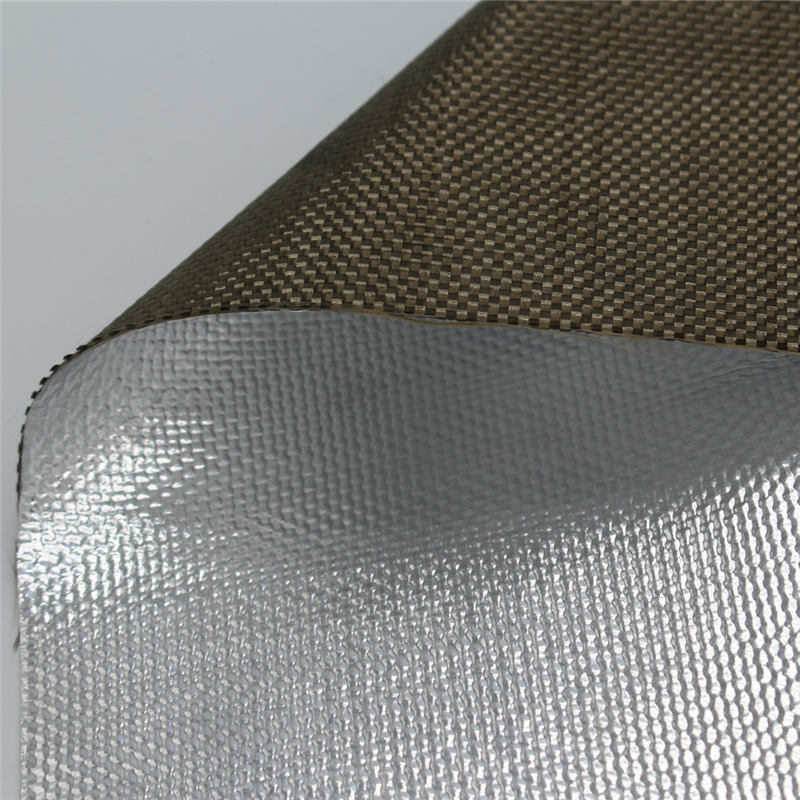

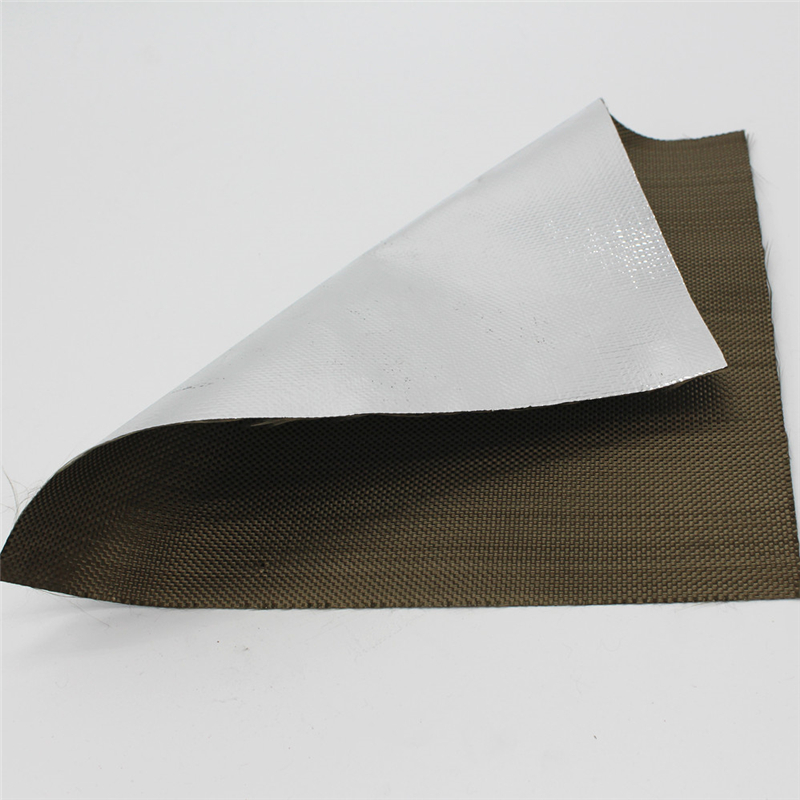

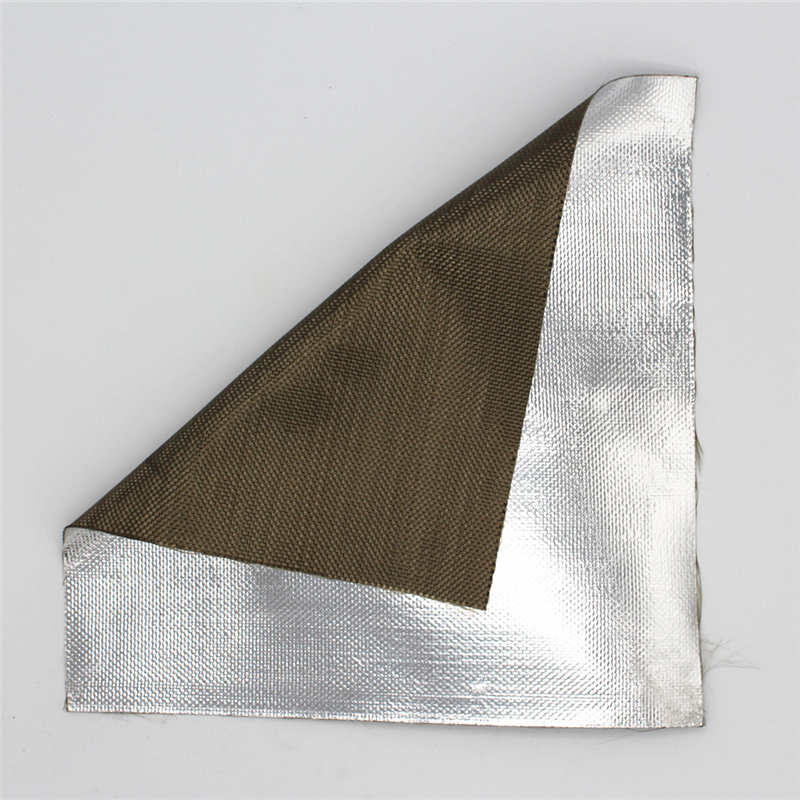

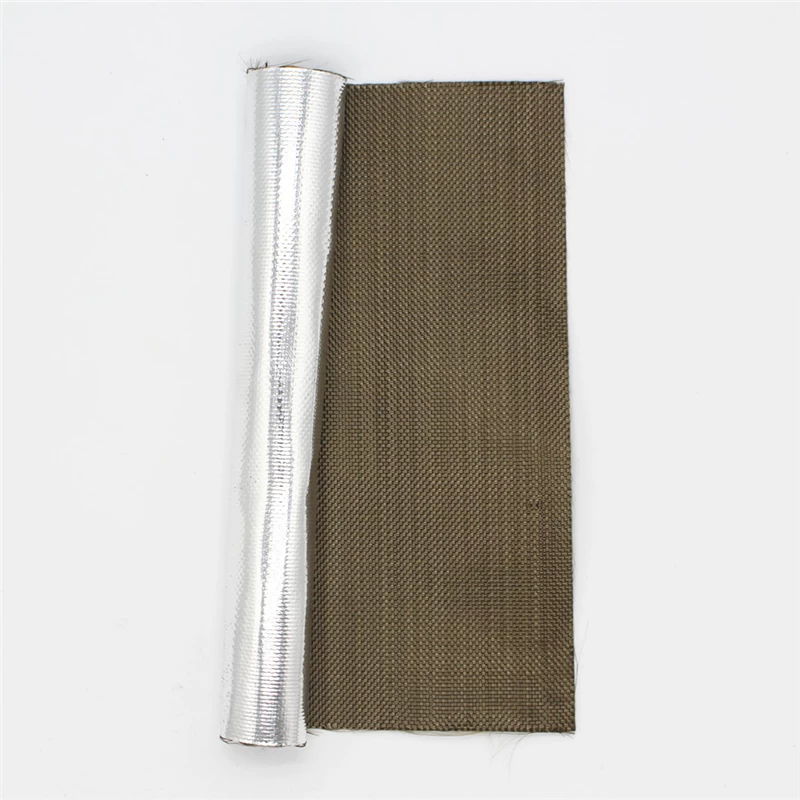

Aluminized Titanium Heat Shield Mat is made by heat reflective aluminum and volcanic rock fiber. This shield is capable of reflecting 90% of radiant heat. Face the aluminized side toward the source of radiant heat to shield heat away.
Feature
Aluminized radiant heat barrier can withstand up to 2000 degrees F of radiant heat and can withstand direct contact up to 1200 degrees F.
Application
Use heat barrier on Firewall, floor pan, under cab (above: muffler, catalytic convertor, DPF, exhaust system), fuel cel.
Specifications
|
Datasheet
|
|
Material
|
Aluminum, LAVA rock fiber
|
|
Continuous Temperature
|
1800 °F
|
|
Melt Temperature
|
2000 °F
|
|
Standard Thickness
|
0.6mm
|
|
Thickness
|
0.2, 0.6, 0.8 mm
|
|
Length
|
MAX 50 meter/roll
|
|
Color
|
Nature
|
|
Cutting Tool
|
Scissor
|
|
Part Number
|
Description
|
|
373060
|
300MM*600MM
|
|
376090
|
600MM*900MM
|
|
3790120
|
900MM*1200MM
|
|
371850M
|
1800MM*50M
|
Notes:
Special size and color upon request.
