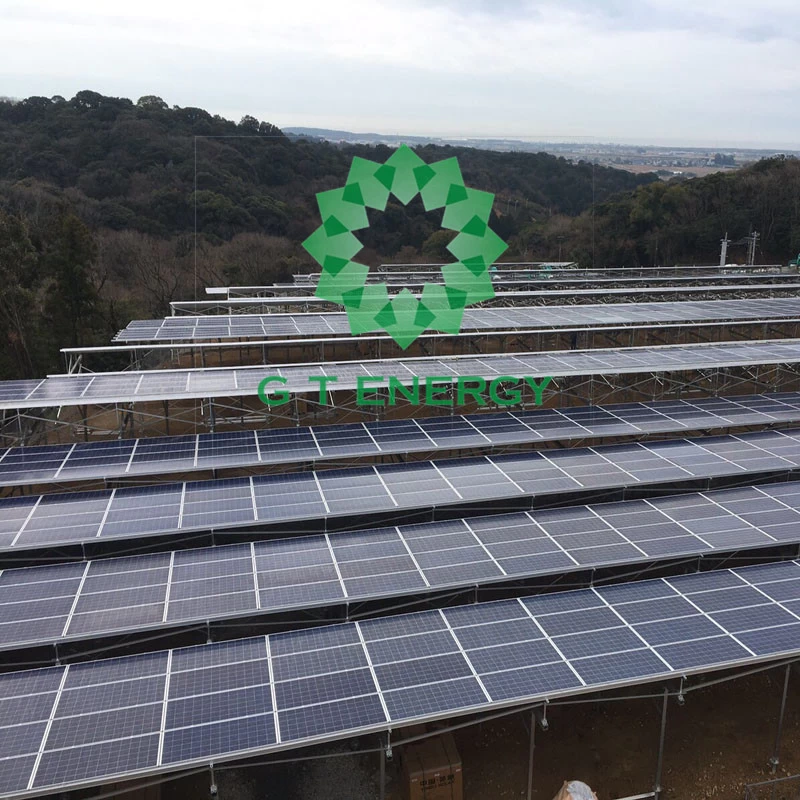

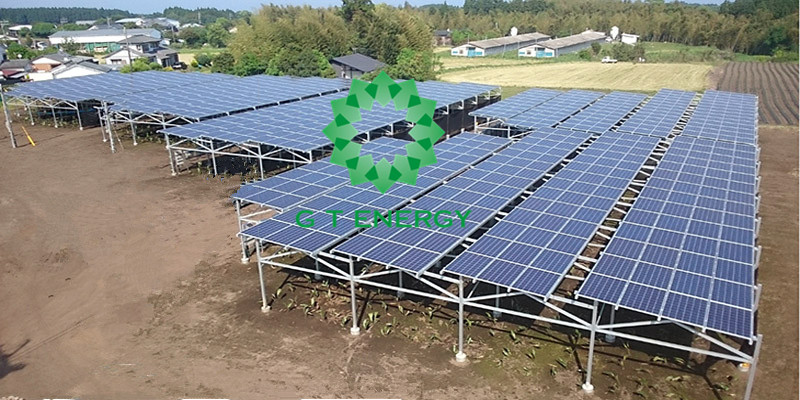

Aluminum agriculture ground mounting system is high from the ground, the whole bracket is connected into one piece, and the structural stability is greatly improved, which does not affect the growth of the underlying crops, but also can use solar power to generate electricity.
Technical Parameters
|
Installation Angle
|
5-40°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Aluminum agriculture ground mounting system
Feature:
1. Tilt aluminum agriculture ground mounting system saving more materials,with lower price;
2. Ground clearance of agricultural mounting system
is high, people could well plant crops, shading rate can be adjusted, do not
affect the growth of crops;
3. Installed angular aluminum before and after,
which makes the whole platform more stable
Advantage
High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed: up to 60m/s;
Material: Al 6005-T5;
Anti-corrosive: anodized;
Warranty: 12 years;
Duration: 25 years.

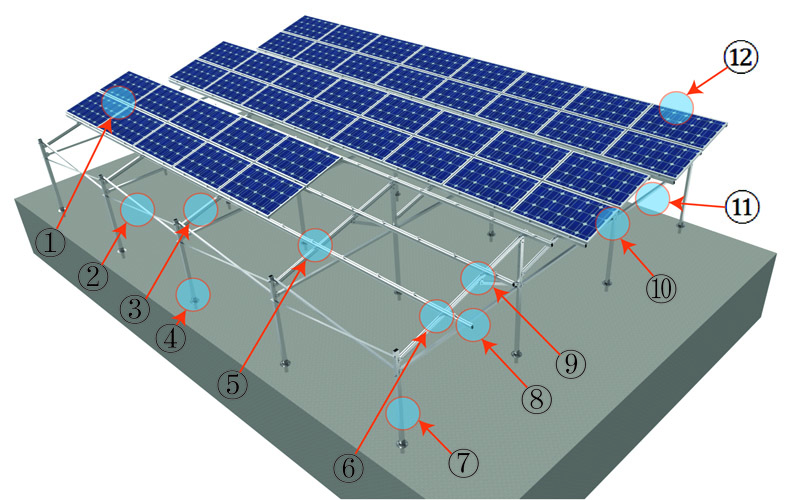

Component photos of aluminum agriculture ground mounting system
1. Solar inter clamp 2. Angular aluminum 3. Solar support beam 4. Solar bracket base
5. Solar rail splice 6. Solar rail clamp 7. Square tube of agriculture 8. Solar Rail
ground mount
9. Solar connecter 90 10. Solar connecter 120 11. Aluminum alloy 12. Solar end clamp
square tube
Installation steps of tilt aluminum agriculture ground mounting system

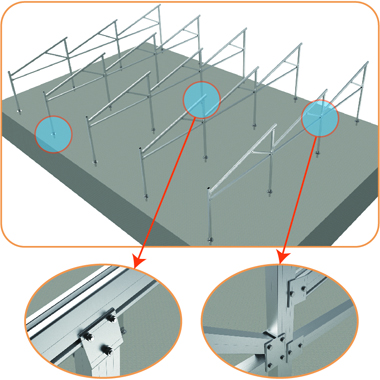

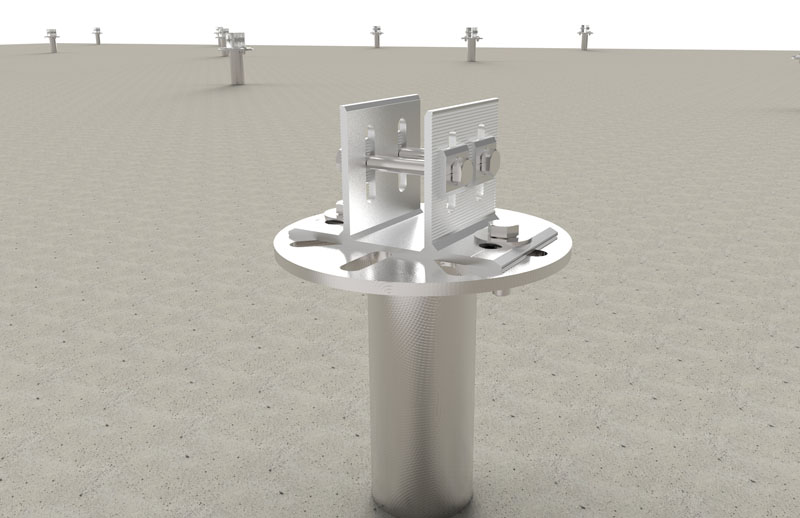

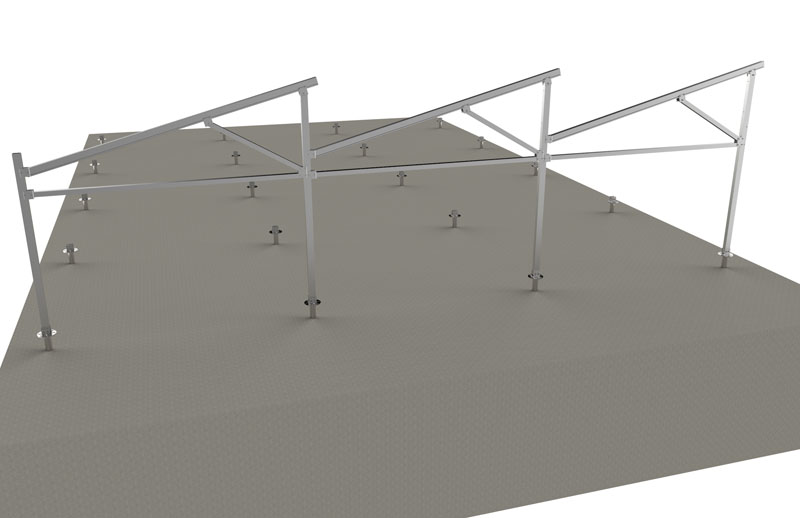

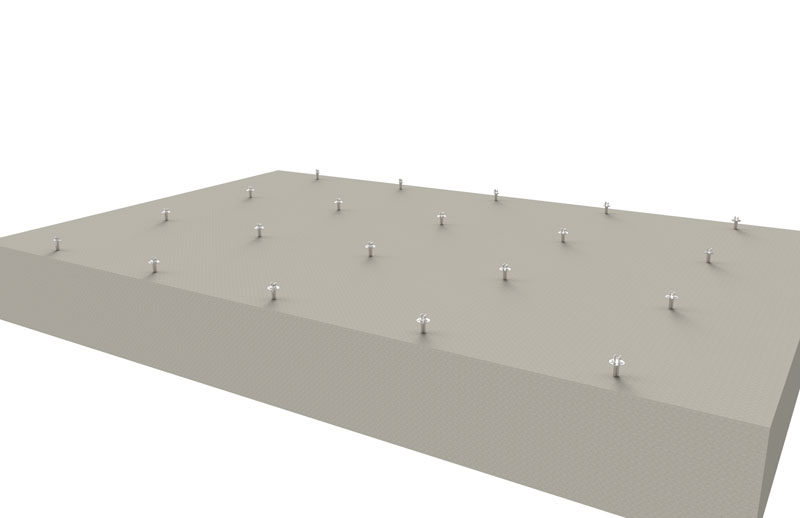

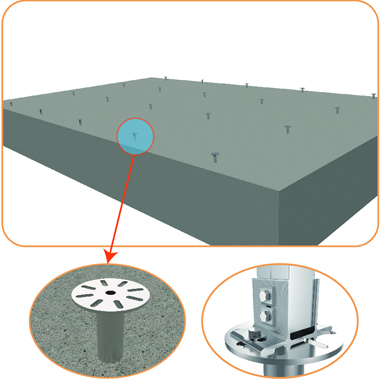

Step1：Install ground screw according to Step2： Install the pre-assembled support beam
distance marked in drawing on the ground screw
Install ground screw Install base Details of support Details of pole
beam and clilp and connecter

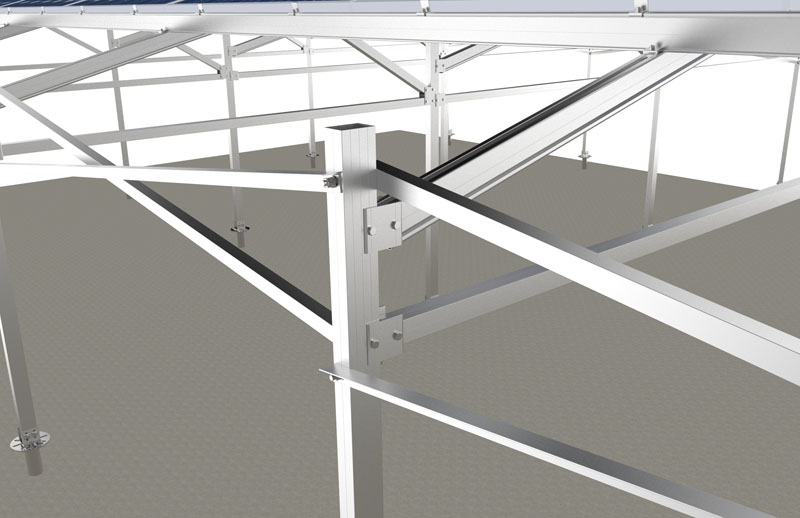

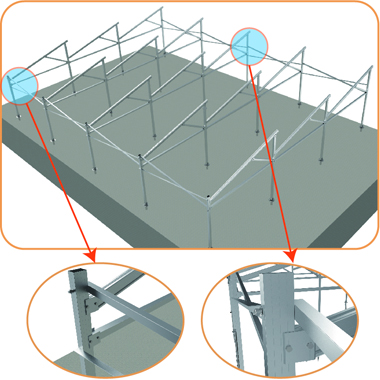

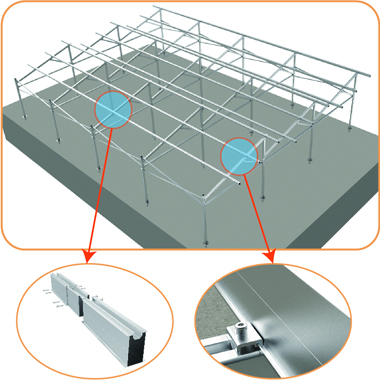

Step3：Install angular aluminums Step4：Install rails and rail splices
Connect angular aluminum Rail splice Rail clamp

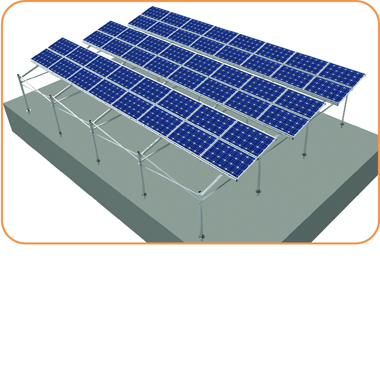

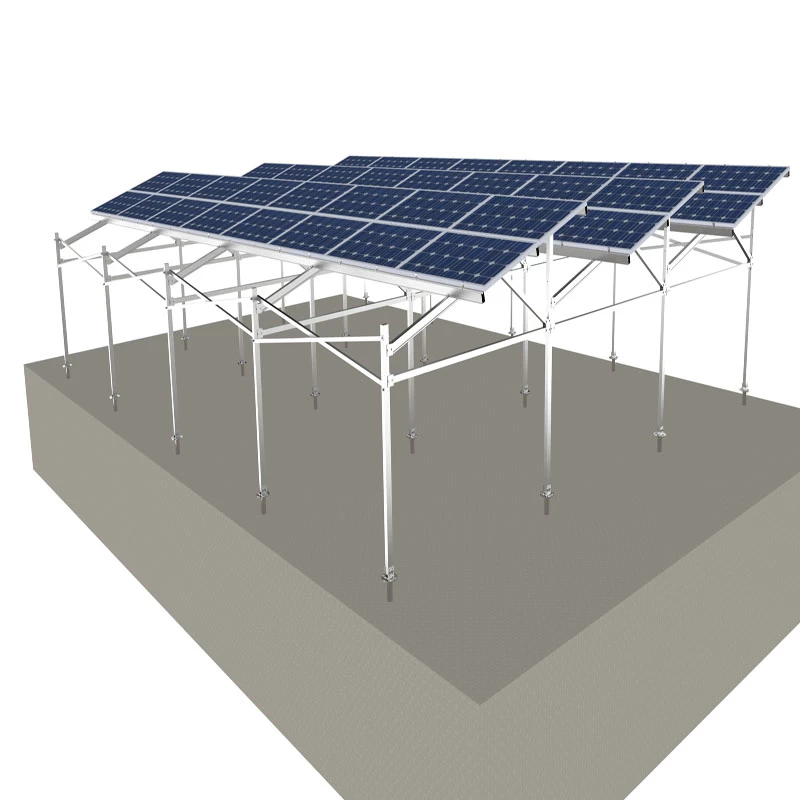

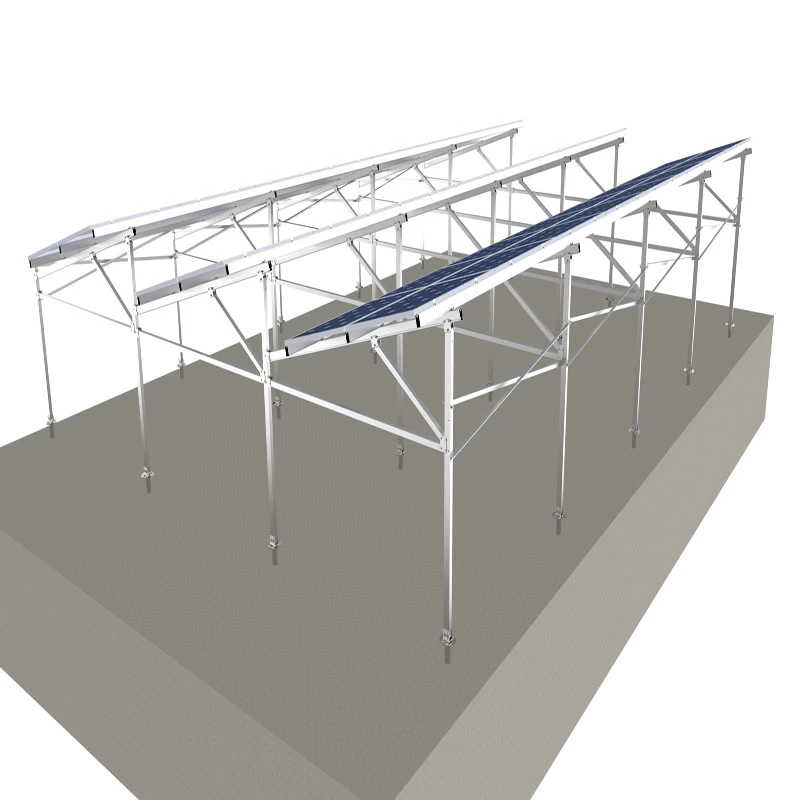

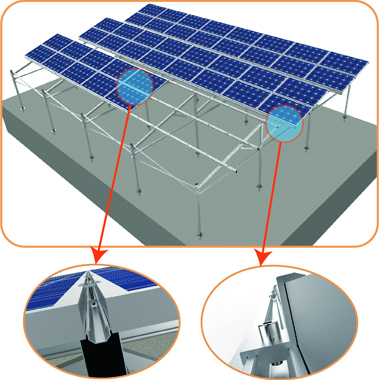

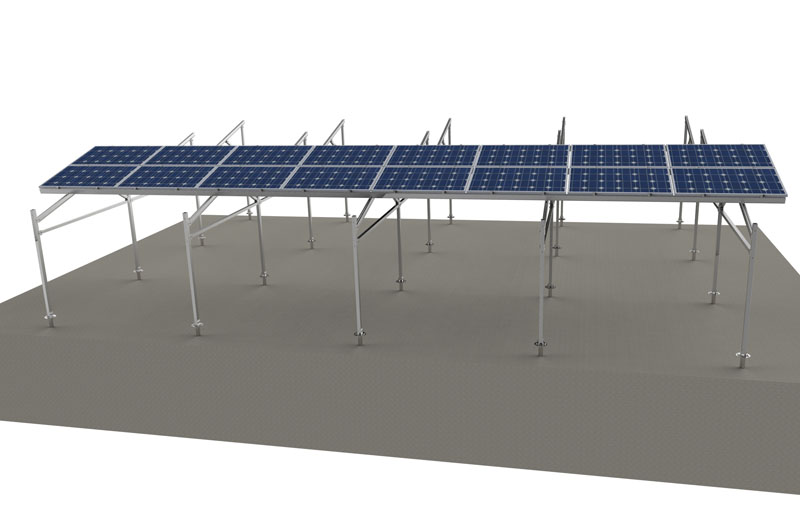

Step5：Fasten panel by inter clamps and end clamps Step6：Installation completion diagram
Inter clamp End clamp
Installation steps:

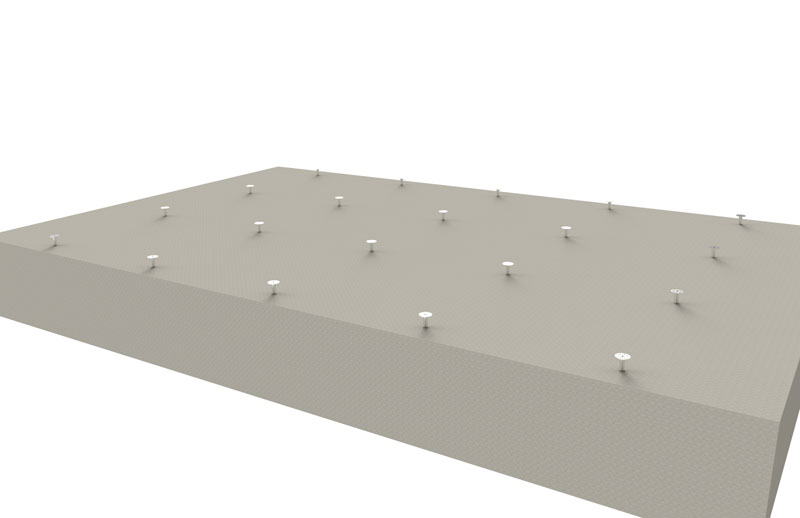

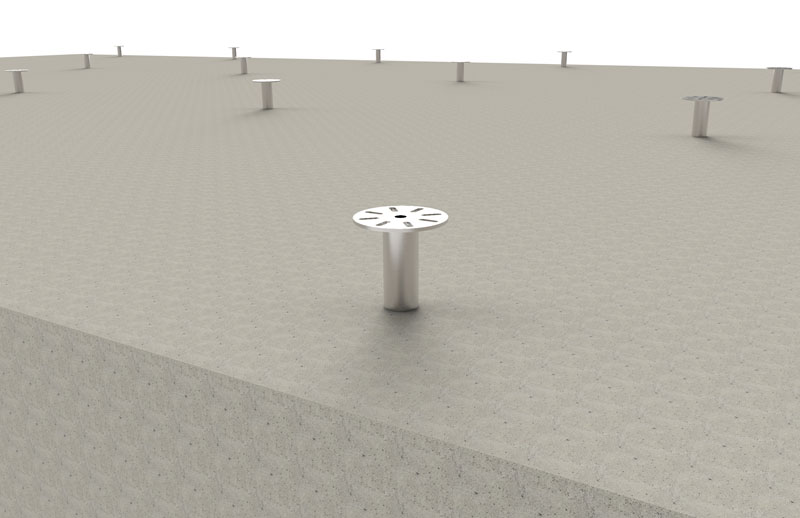

1.install the ground screw;

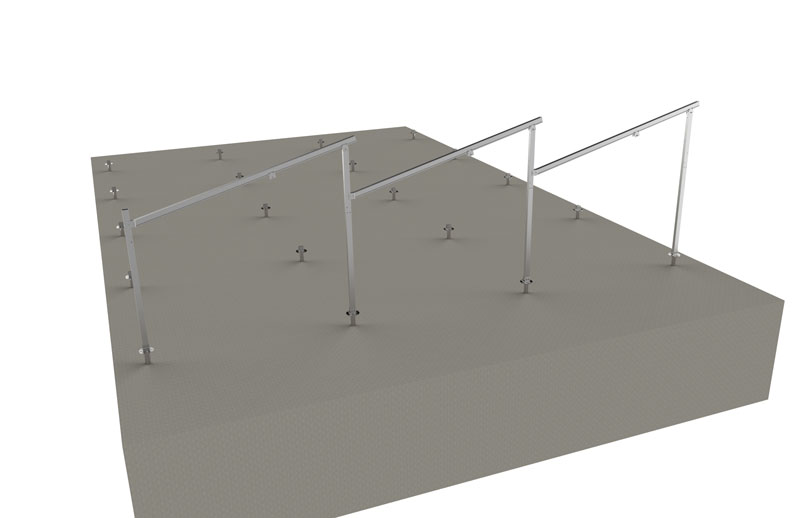

2.Install the base;

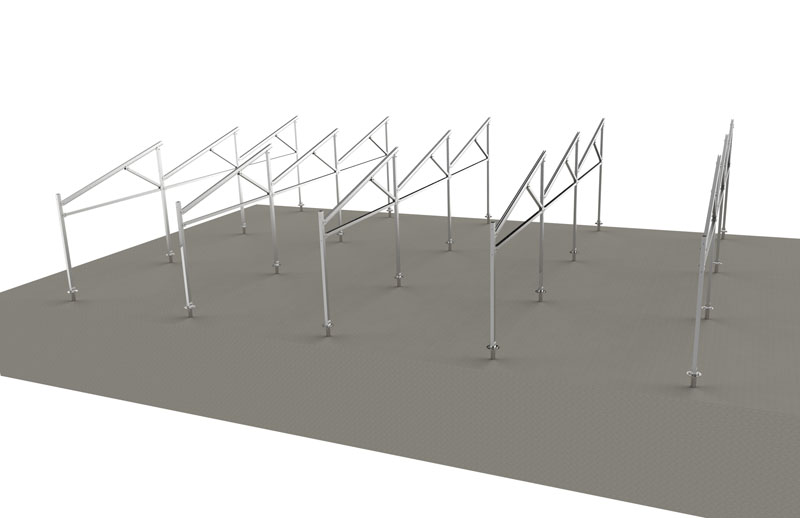

3.Install l the beam;

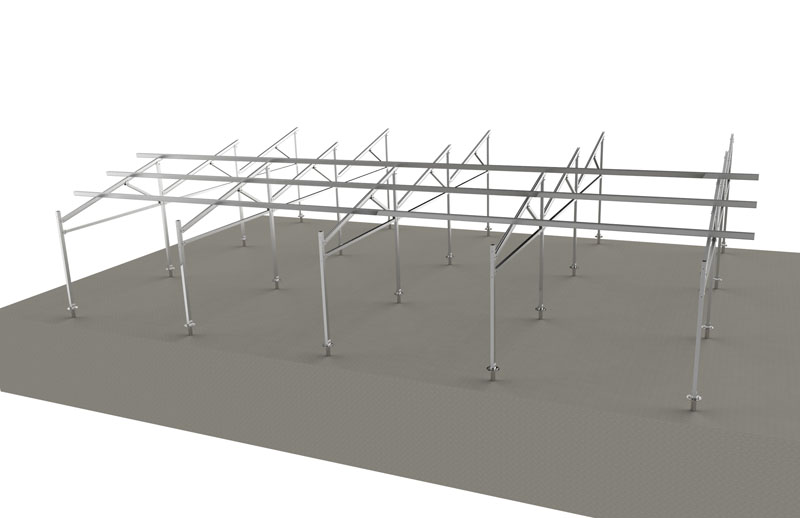

4.Install the rail;
