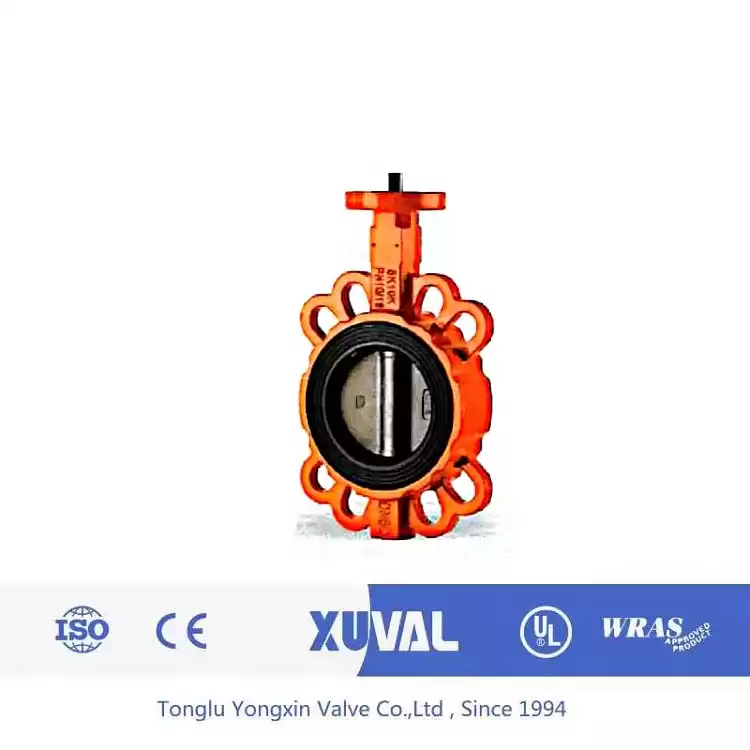

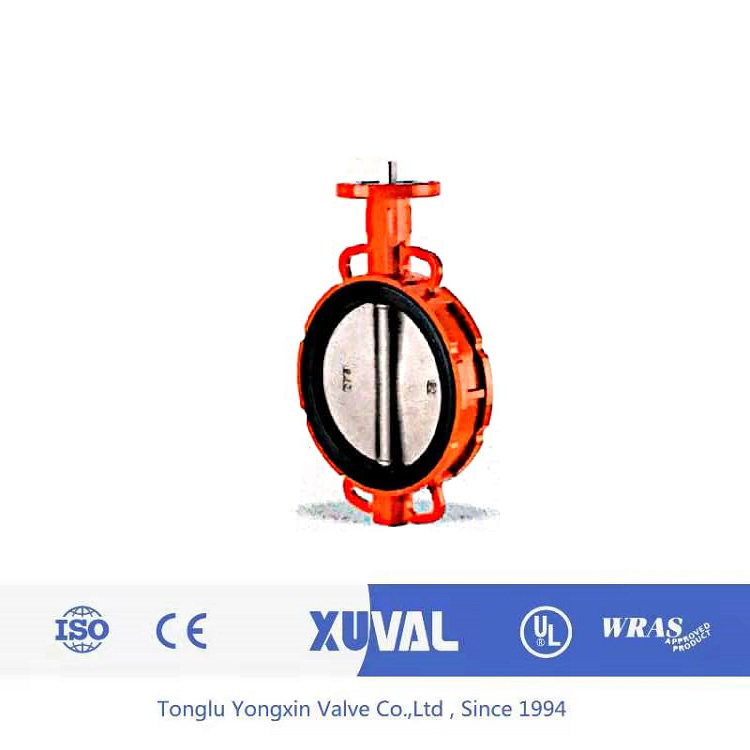

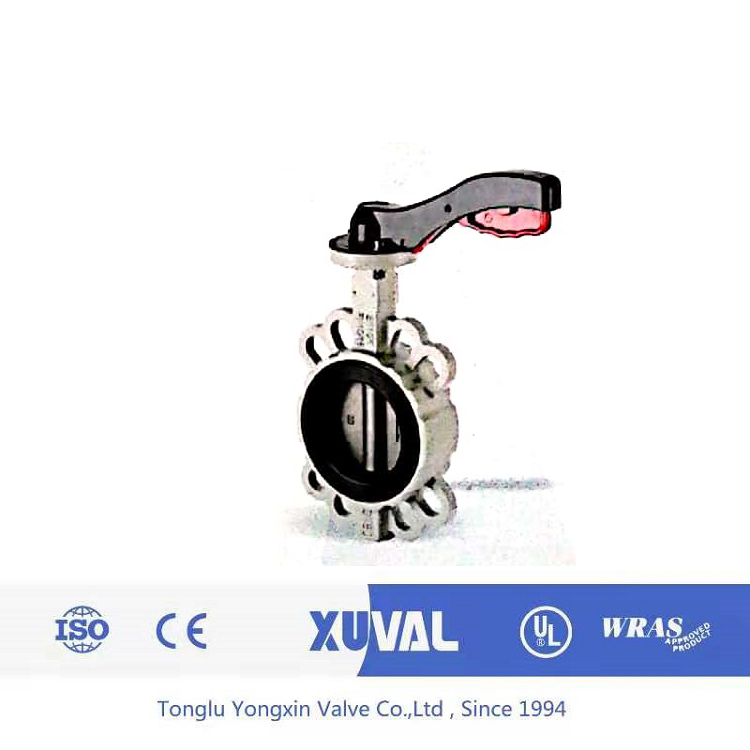

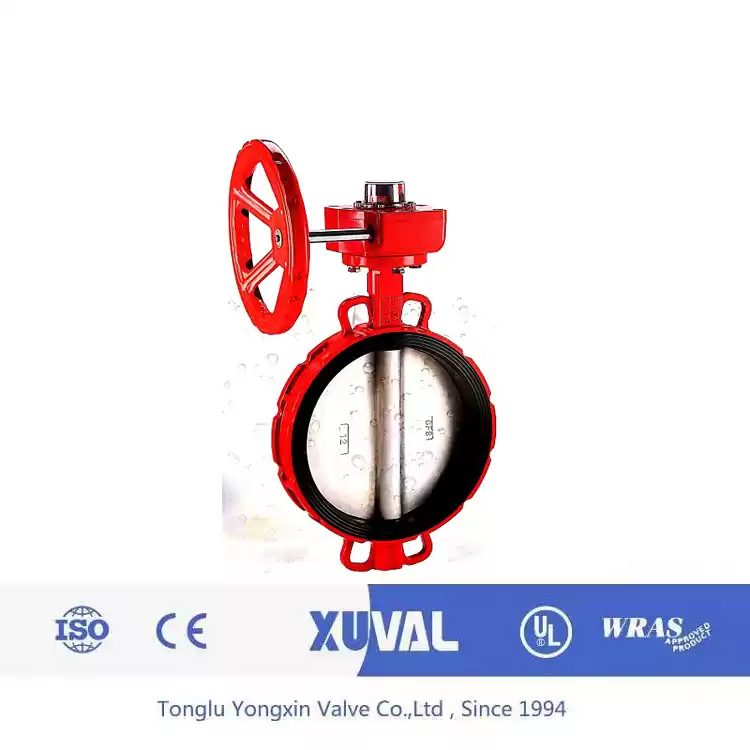

Aluminum Alloy Butterfly Valve Series

Aluminum alloy characteristic ability of high temperature butterfly valve, apply pressure range is higher also, nominal valve size is big, the body is made of carbon steel, the valve plate seal aluminum ring is used to replace the rubber ring, apply to the hvac, central air conditioning, fluctuation of complete sets of equipment, lack of application in the: water, gas, oil, chemical industry, metallurgy, energy, shipbuilding, electric power, petroleum, water treatment, construction and other industries.



Aluminum Alloy Butterfly Valve Series

Aluminum alloy butterfly valve refers to the closing piece (disc or butterfly plate) for aluminum alloy material.

Aluminum alloy characteristic ability of high temperature butterfly valve, apply pressure range is higher also, nominal valve size is big, the body is made of carbon steel, the valve plate seal aluminum ring is used to replace the rubber ring, apply to the hvac, central air conditioning, fluctuation of complete sets of equipment, lack of application in the: water, gas, oil, chemical industry, metallurgy, energy, shipbuilding, electric power, petroleum, water treatment, construction and other industries.



Product features

1 The structure is simple and the shape sesign is novel and unique. Font clear, smooth surface,spray treatment of valve body.

2 Light torque, light weight, various colors, easy to transport and install.(if equipped with electric actuator,lower gear can be selected).

3 the top flange adopts ISO5211 and GB/T12223 double position installation without adapter plate.

4 The valve rod is precision processed to ensure concentricity,with anti flying groove to prevent the valve rod from flying out.

5 The butterfly valve adopts non pin shaft plate connection,rotation and bidirectional butterfly valve installation to provide reliabilirty and easy installation.

6 Valve seat design provides complete separation of valve body and valve stem from medium, with pressure of 18kg and no leakage.

7 Site maintenance provides convenience to remove the damaged valve seat.Replace the vavle seat with a new one.

8 The valve body is made of high-pressure standard aluminum alloy die-casting,which is fast in delivery,free from environmental impact and anti condensation.The pressure of clamp is 60 tons without deformation,and the pressure bearing pressure can reach 3.5tons.


Technical Parameter
Nominal Diameter Nominal Pressure Body Material Valve Plate Material Seat Material Using Media Driving Mode
DN25-DN300

PN10-PN16,

5K-10K

Aluminium Alloy

Nodular Iron Zinc Plating,

Ductile Iron,304,316,316L,

2507,1.4529.

EPDM,Nbrtemperature

Resistant Ethylene

Propylene,Wear-resistant Ethylene Propylene Fluororubber,Silicone Rubber.

Water,Sea water,

Air,Food,Oil,Slurry,

Dust,Ect.

Manual,Electric,Pneumatic And Hydraulic.




PN10&PN16&150LB/5K~10K
Main Dimensions
NPS
DN
L
150LB PN16 PN10 5K 10K 150LB PN16 PN10 5K 10K
D1A D1B D1C D1D D1A n-φd n-φd
n-φd
n-φd
n-φd
1/1.25 25/32 33 98.4 110 110 90 105 4-19 4-18 4-18 4-12 4-16
1.5/2 40/50 42.5 120.7 125 125 105 120 4-19 4-18 4-18 4-15 4-16
2.5 65 46 139.7 145 145 130 140 4-19 8-18 8-18 4-15 4-16
3 80 46 152.4 160 160 145 150 4-19 8-18 8-18 8-19 8-16
4 100 52 190.5 180 180 165 175 8-19 8-18 8-18 8-19 8-16
5 125 55.4 215.9 210 210 200 210 8-22 8-18 8-18 8-19 8-20
6 150 55.8 241.3 240 240 230 240 8-22 8-22 8-11 8-19 8-20
8 200 60 298.5 195 295 280 290 8-22 12-22 8-22 8-23 12-20
10 250 66.5 362 355 350 345 355 12-26 12-26 12-22 12-23 12-22
12 300 77.5 413.8 410 400 390 400 12-26 12-26 12-22 12-23 16-22


PN10&PN16&150LB/5K~10K

Main Dimensions
NPS DN H1 H2 H3/Square shaft H4/Circular shaft S*S/G K D3 D4 n-φd1
1/1.25 25/32 56 96 14 28 9*9/12.6 3 72 50/57 8-7
1.5/2 40/50 72 133 14 28 9*9/12.6 3 70 50/57 8-7
2.5 65 86 142 14 28 9*9/12.6 3 70 50/57 8-7
3 80 95 149 14 28 9*9/12.6 3 70 50/57 8-7
4 100 108 173 18 28 11*11/15.8 5 90 70/70 8-10
5 125 125 182 18 28 14*14/18.9 5 90 70/70 8-10
6 150 139 199 18 28 14*14/18.9 5 90 70/70 8-10
8 200 170 238 25 35 17*17/22.1 5 125 102/89 4-12/14
10 250 207 283 30 40 22*22/28.45 8 125 102/89 4-12/14
12 300 236 309 30 40 22*22/31.6 8 140 102/108 4-12/14

Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by  packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
