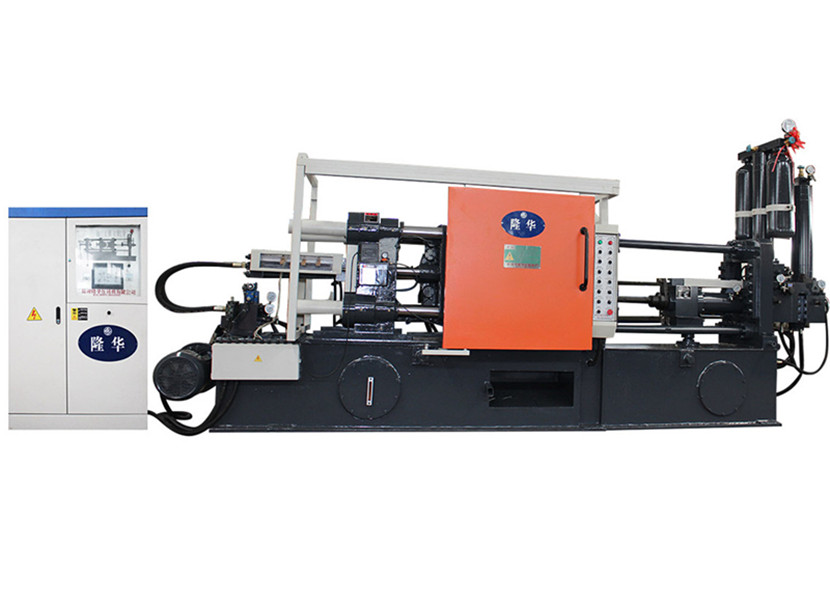

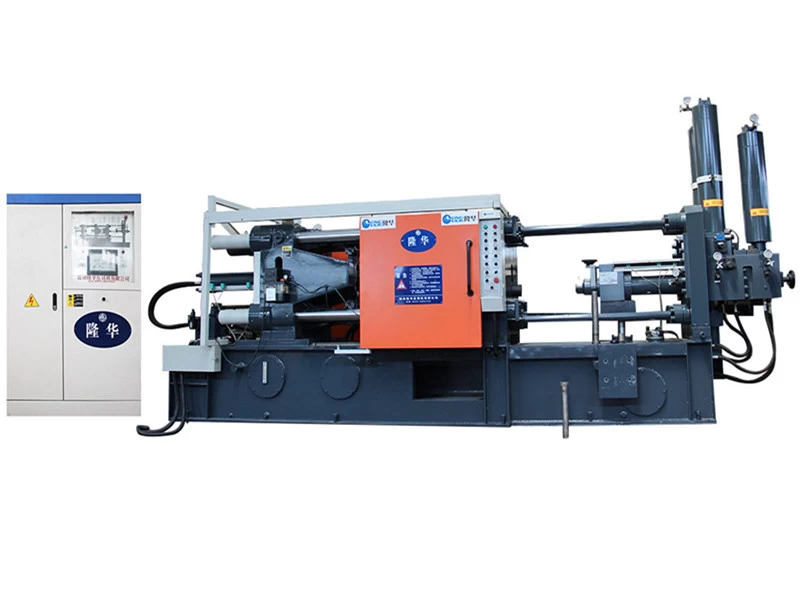

This die casting machine has the advantages of few and simple operation, high production efficiency and easy automation.The technology of injection system is high.The injection position of the machine is easy to be adjusted to accommodate the opening of eccentric gate, and the center gate can also be used.
Product parameters
LH series of standard parameter table (220 t)
|
ITEMS
|
Unit
|
Specification
|
|
HYDRAULIC WORKING PRESSURE
|
MPa
|
14
|
|
CLAMPING FORCE
|
KN
|
2200
|
|
SPACE BETWEEN TIE BARS
|
mm
|
510*510
|
|
Tie Bar Diameter
|
mm
|
￠90
|
|
DIE OPENING STROKE
|
mm
|
400
|
|
INJECTION FORCE(intensify)
|
KN
|
270
|
Plunger launch distance
|
mm
|
140
|
|
Injectionposition
|
mm
|
0 -- 140
|
|
PLUNGER DIAMETER
|
mm
|
￠50----￠70
|
|
INJECTION STROKE
|
mm
|
345
|
Casting pressure (intensify)
|
MPa
|
112/78/57
|
Casting Fiange Protrusion
|
mm
|
10
|
Casting Fiange Diameter
|
mm
|
110
|
|
MAX CASTING AREA UNDER 40Mpa
|
CM2
|
160-679
|
|
lnjection Weight(Al)
|
Kg
|
3
|
|
Die Height(Min--Max)
|
mm
|
220～600
|
|
EJECTOR FORCE
|
KN
|
120
|
|
EJECTOR STROKE
|
mm
|
90
|
|
Motor Capacity
|
Kw
|
15
|
|
Machine Dimensions (L*W*H)
|
m
|
5.6*1.6*2.4
|
|
Referential Machine Weight For Uplifting
|
T
|
8.2
|
|
Oil Tank Capacity
|
L
|
680
|
WE reserve the right to make any technical improvement without further notice
Product packaging:
Related products
Related product description

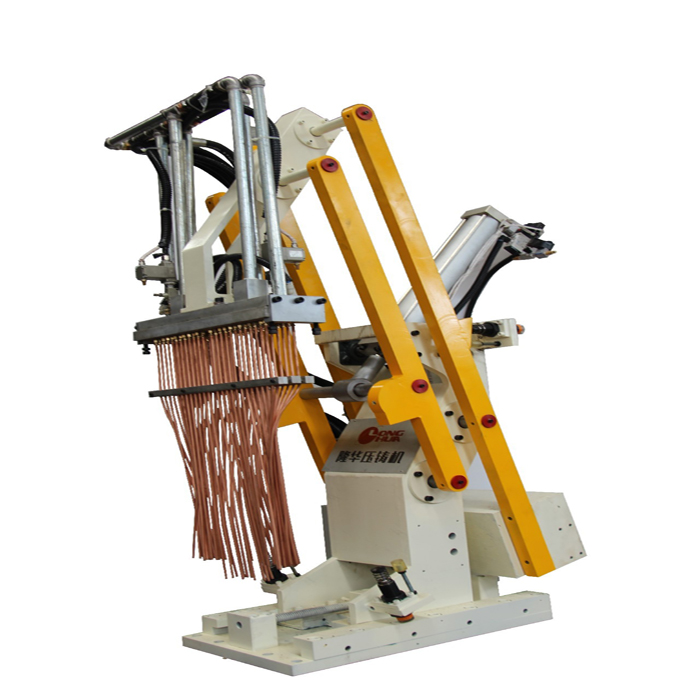

1.Unique design of circuit, uniform atomization, good effect
2.Spray amount is controlled by time and flow valve
3.Copper tube test design, can set the direction freely
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Please contact me
