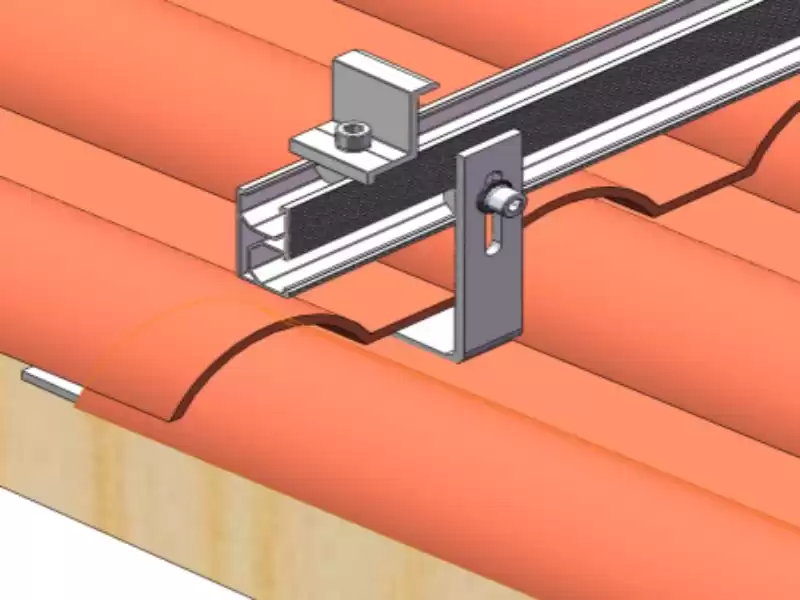

Our aluminum alloy tile roof solar mounting system is a good solution for pitched roofs. It's easy to install, simple, beautiful, strong wind resistance and durable.
The structure is mainly made of stainless steel hook and aluminum alloy track which is light weight and adjustable.
Due to these good functions and features, it's widely exported to different markets, such as the USA, Australia, Africa, Mid-East Asia and Europe.

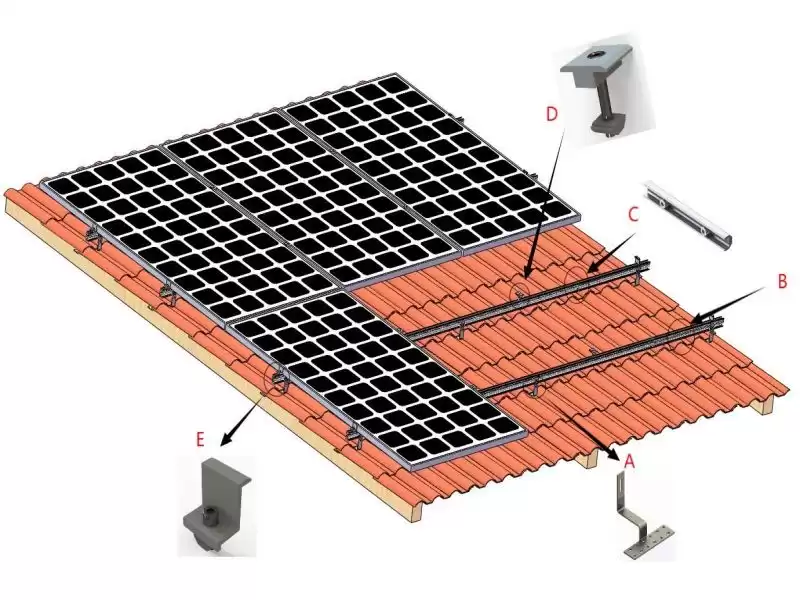

Aluminum Alloy Tile Roof Solar Mounting System components
|

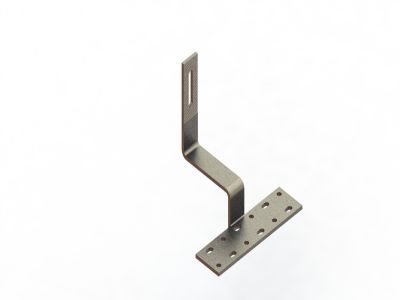

A
XHF-RH-CTl#
(Tile hook with 3pcs M6.3x80 mm screw + 1 T module set.)
|
B

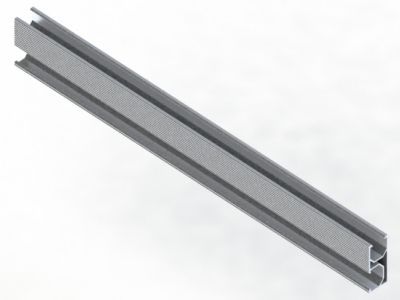

XHF-R02
(Extruded AI6005-T5 rail profile to support solar panel )
|
C

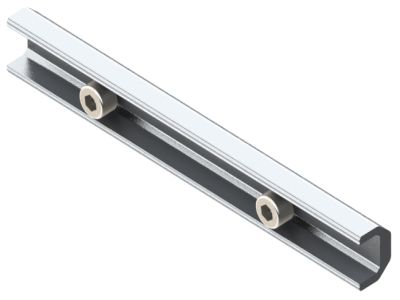

XHF-R01-S
(Rail Splice, AI6005 & SUS304 to extend rail length.)
|
|
D

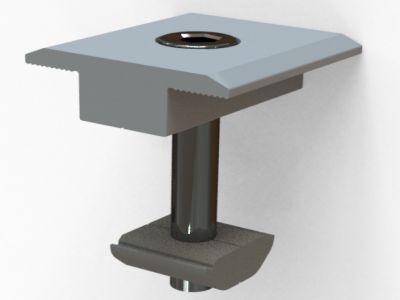

XHF-SC-40
( Side clamp, AI6005 & SUS304 To fix framed panel on rail.)
|
E
XHF-IC-40
(Mid clamp, AI6005 & SUS304 To fix framed panel on rail.)
|
|
Parameters
|
|
Application:
|
Light Weight, Convenient and Durable.
|
Max Wind Speed:
|
60 m/s
|
Max Wind Speed:
|
1.4 KN/m2
|
Material:
|
Aluminum 6005-T5 & Stainless Steel 304
|
Warranty:
|
10 years warranty; 25 years service life.
|
Our roof solar mounting system components are lightweight.
The pre-assembled design is time and cost-effective to install.
We ues tile Roof Solar Mounting System which is good solution for both home and commercial projects,
With these years experiences, the many selection of different accessories and system enable with XHF systems to enable almost any PV module configuration on each roof.
Widely used for inclined roof surfaces;
Non-adjustable roof hook, anti-corrosion and wind resistance;
High-quality stainless-steel and aluminum alloy material, easy installation;
Suitable for framed/frameless photovoltaic modules to install vertical/horizontal arrays;
|

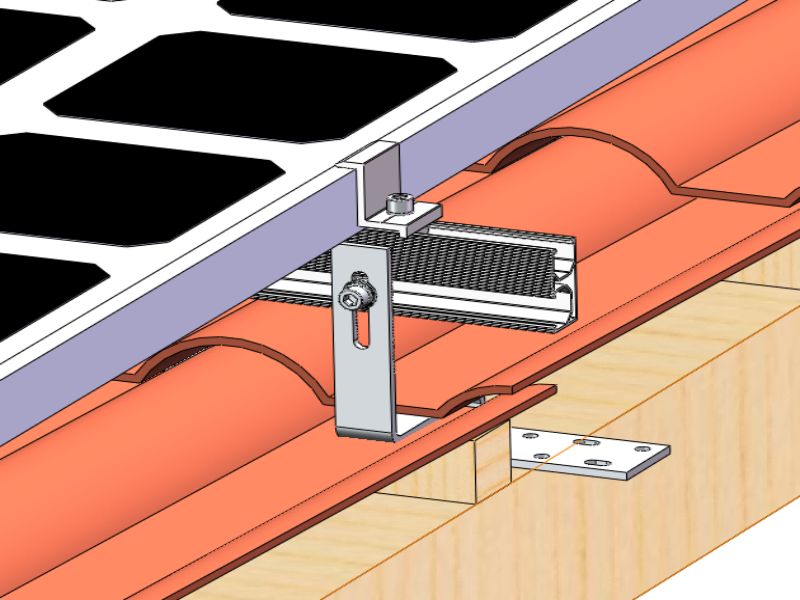

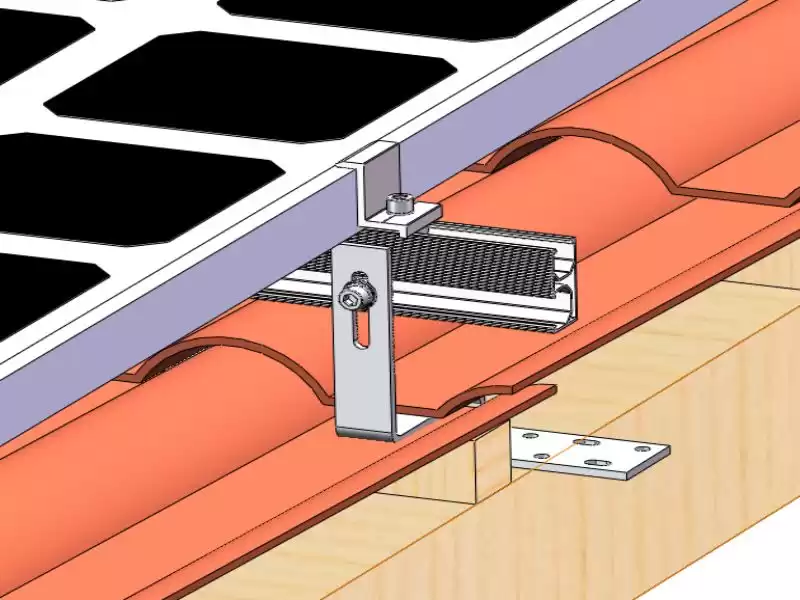

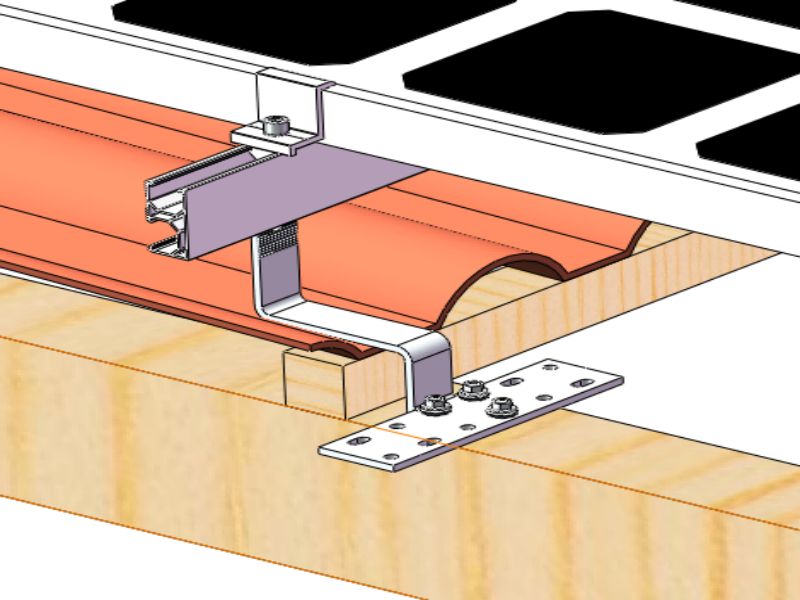

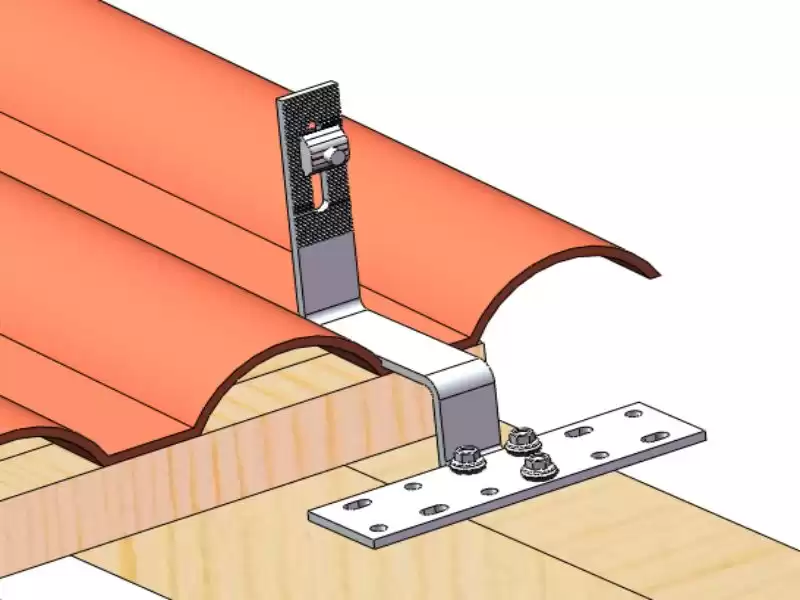

Step 1:Fix the tile hook on the beam by M6.3 x 80mm wood screw
|
Step 2:Fix the solar rail on the tile hook and lock tightly by M8 x 25mm T module set
|
|
Step 3:Put the solar panel on the rail
|
Step 4:Fix the solar panel with mid clamp or end clamp
|

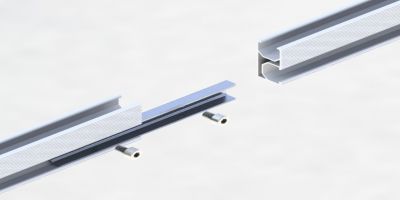

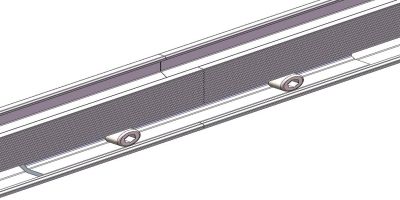

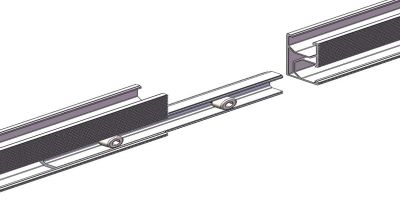

If the rail is not long enough,you can install the rail connector as bellow:
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
