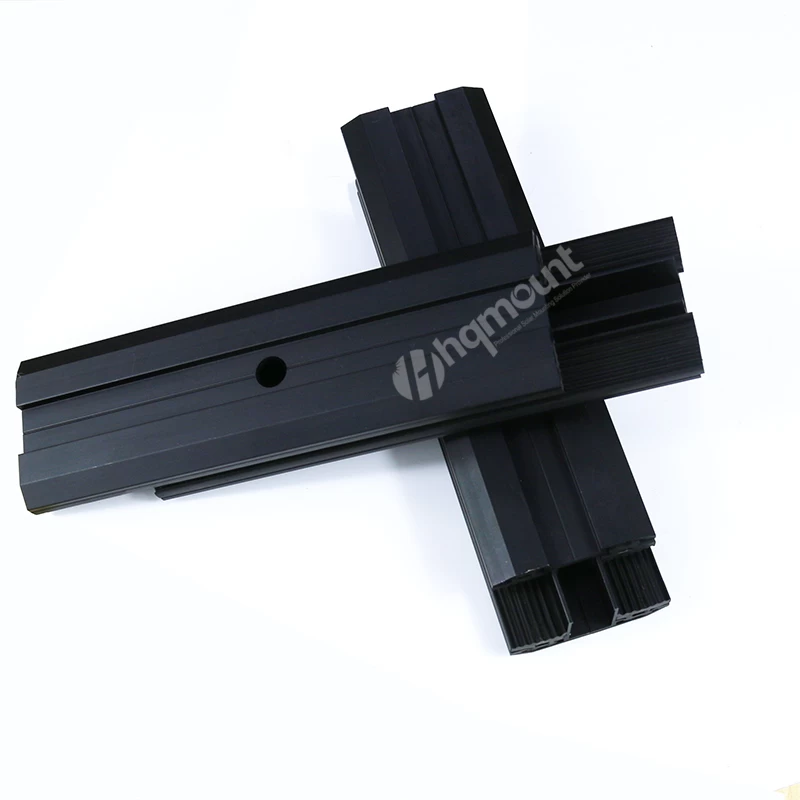

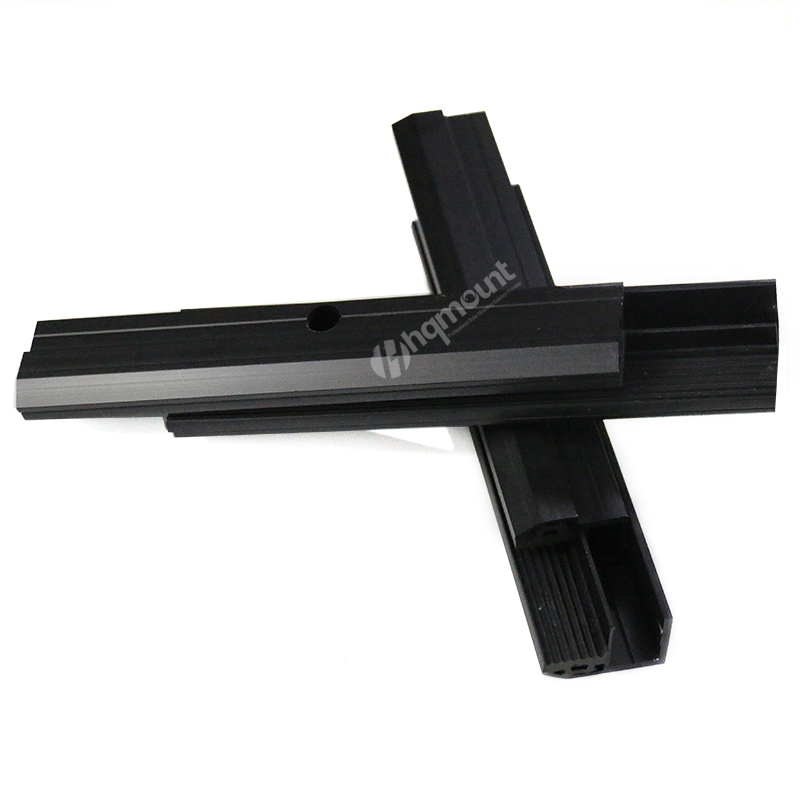

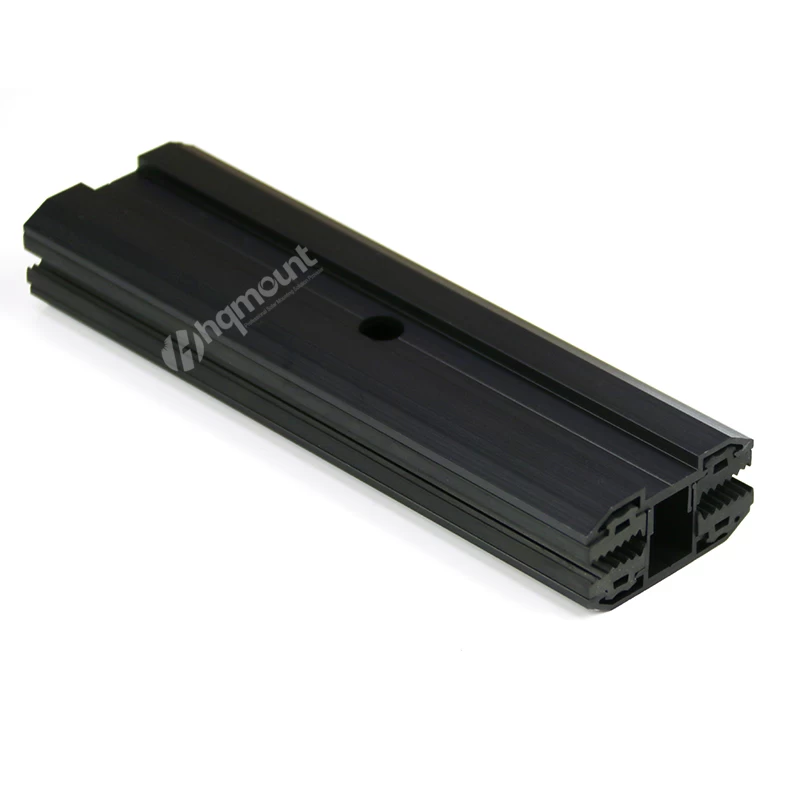

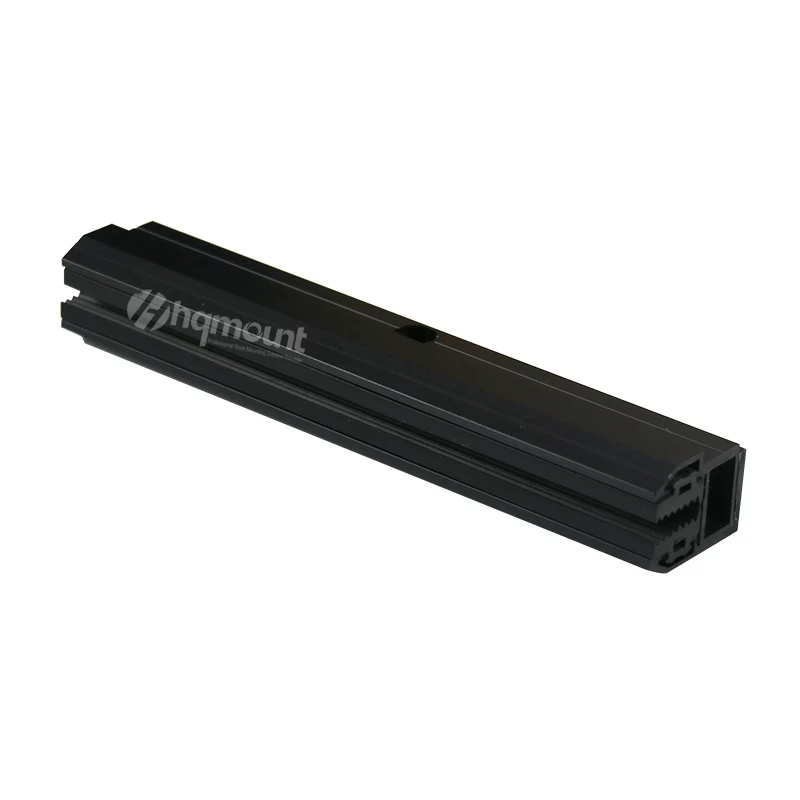

HQ Mount Frameless Aluminum black solar thin film mid clamps
Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules.
Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can
prevent the solar panel moving effectively.
Features of black thin film mid clamps & end clamps:
1.Lower cost,incomparable value
2.Fast installation, Flexible attachment
3.More perfect services and compete technical support.
Brief introduce:
Installation site:Flat roof system&ground mount system.
Material:Al 6005-T5
Surface Finish:Natural Anodizing, black anodizing or other color.
Accessories:Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
Applicable Module:6-9mm frameless thin film solar module
Length:80mm, 120mm, 150mm,200mm,ect. can be customized.
Wind Speed:Up to 60m/s
Snow Load:Up to 1.4KN/m2
Warranty:12 years warranty,25 years life time.
Standard:AS/NZS 1170.2, JIS C 8955:2011
Our solar mounting
clamps exceed attachment standards while also protecting panel surfaces
from rotational forces and sharp edges that have been shown to cause
certain types of damage that can become a nightmare for contractors .
Our uniquely manufactured solar mounting clamps provide the best
protection from mounting damage.
