Structure:
Product Features:
1. Waterproofing
2. Fire Retardant B1 Grade
3. Thermal Insulation
4. Sound Insulation
5. Non-corrosion
6. Non-toxic
7. Tough, Rigid with High Impact Strength
8. Stable Color Retention
9. Moisture-proof
10. Anti-deformation
Specification:
|
Name
|

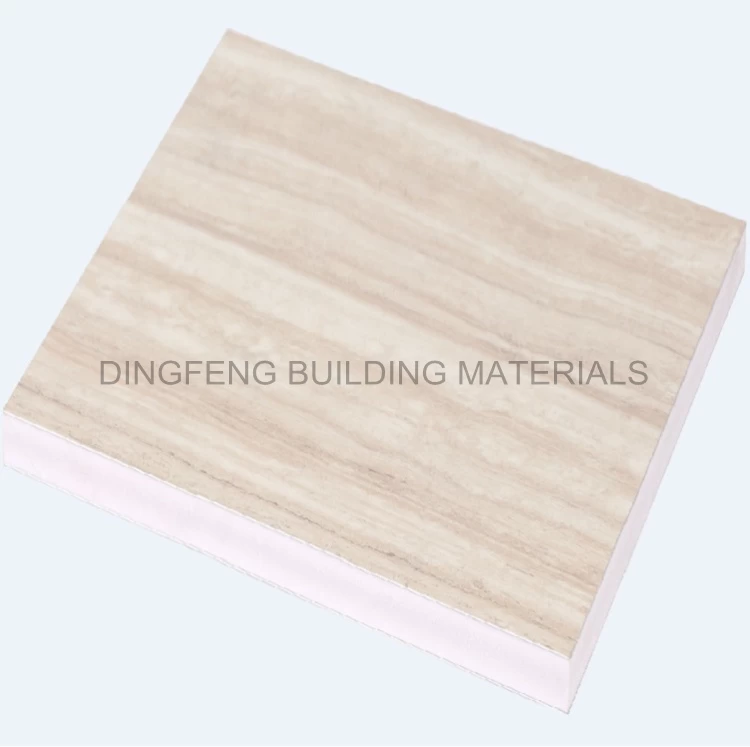

Aluminum decorative panel
|
|
Brand
|
DINGFENG
|
|
Material
|
polyvinyl chloride (PVC) + Aluminum
|
|
Color
|
Wooden marble, solid, metallic etc.
|
|
Surface
|
Glossy, Matte, Sand, sparkle, embossed
|
|
Package
|
PE BAG & Cartons & Wooden pallet
|
|
Length
|
2440mm (Standard), Can be customized
|
|
Width
|
1220mm
|
|
Thickness
|
From 2mm to 25mm
|
|
Density
|
0.4-0.9 g/cm3
|
Technical Parameters:
|
ITEM
|
UNIT
|
PERFORMANCE INDEX
|
|
Apparent Density
|
Kg/m3
|
450 - 800
|
|
Tensile Strength
|
Mpa
|
≥8
|
|
Elongation at Break
|
%
|
≥7
|
|
Bending Strength
|
Mpa
|
≥16
|
|
Elasticity Modulus of Bending
|
Mpa
|
≥800
|
|
Impact Strength
|
Kj/m2
|
≥7
|
|
Shore Hardness (D)
|
----
|
≥60
|
|
VICAT Softening Point
|
℃
|
≥70
|
|
Size Variation Rate of Heating
|
%
|
≤1.7
|
|
Water Absorption
|
%
|
≤1
|
|
Screw Hold Force
|
N
|
≥800
|
|
SGS Test
|
2011/65/EU (ROHS)
|
Qualified
|
|
Phthalate Content
|
2015/863/EU
|
≤0.01
|
|
Fire Behavior
|
GB8624-2012
|
Class B1
|
|
Safety Criteria
|
Standard
|
Value
|
|
Flammability
|
EN 13501-1
|
Bf1
|
|
Slip Resistance
|
EN13893
|
DS
|
|
Formaldehyde Emission
|
EN717-1
|
None
|
|
Color Fastness
|
ISO 105-BO2
|
≥ 6
|
|
Castor Wheel Test
|
EN425
|
Pass
|
|
Performance
|
Standard
|
Value
|
|
Wear Resistance
|
EN-660-2
|
≤ 0.015g
|
|
Flexibility
|
EN435
|
No Damage
|
|
Peel Resistance
|
EN431
|
≥ 2.8Kgf/2cm
|
|
Residual Indentation
|
EN434
|
≤ 0.1mm
|
|
Curling After Exposure To Heat
|
EN434
|
≤ 1.2mm (80°C, 6hrs)
|
|
Dimensional Stability
|
EN435
|
≤ 0.12% (80°C, 6hrs)
|
