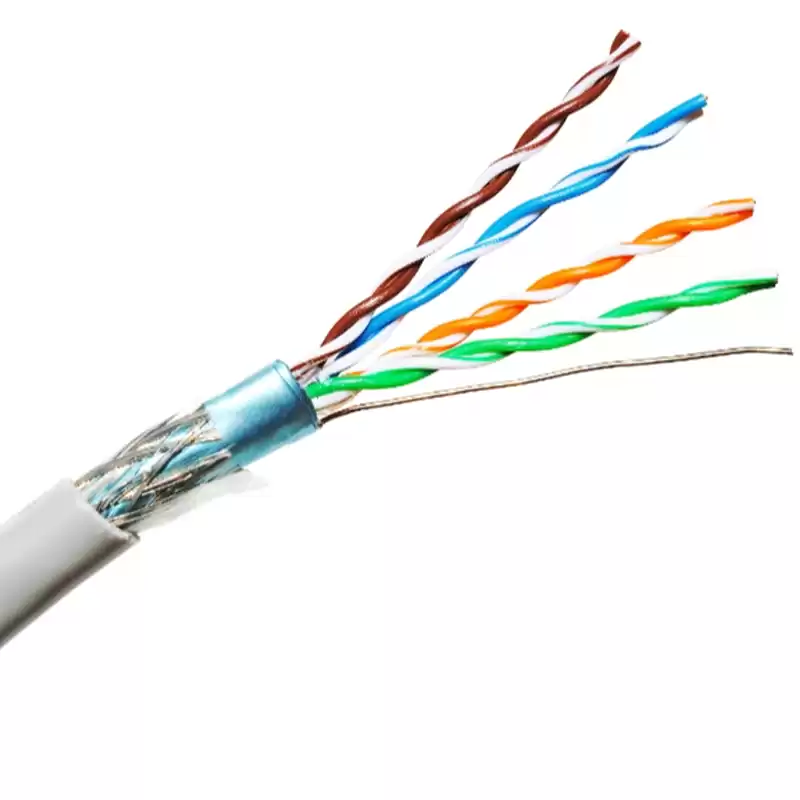

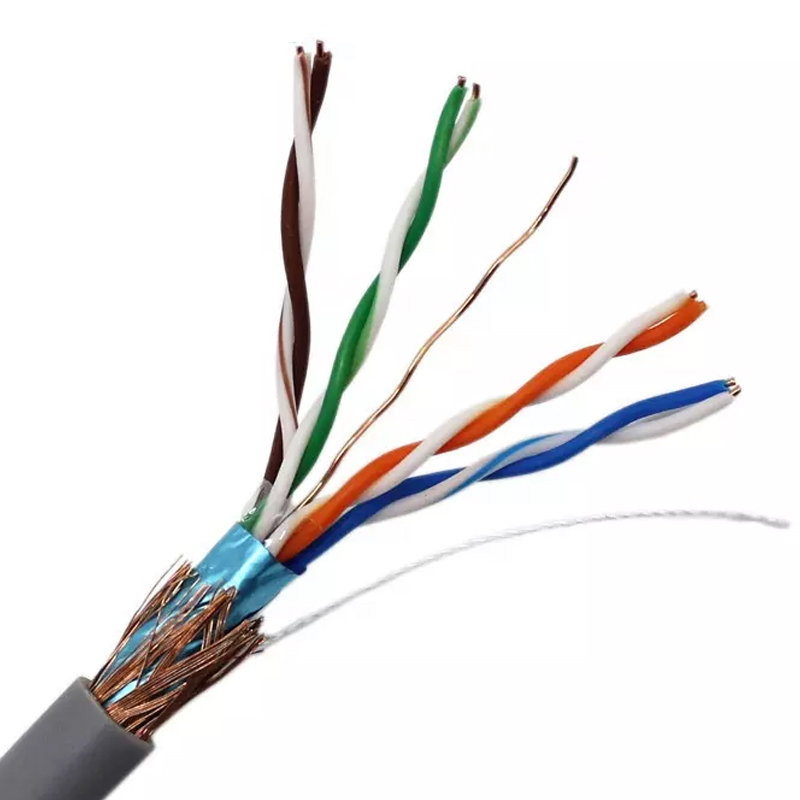

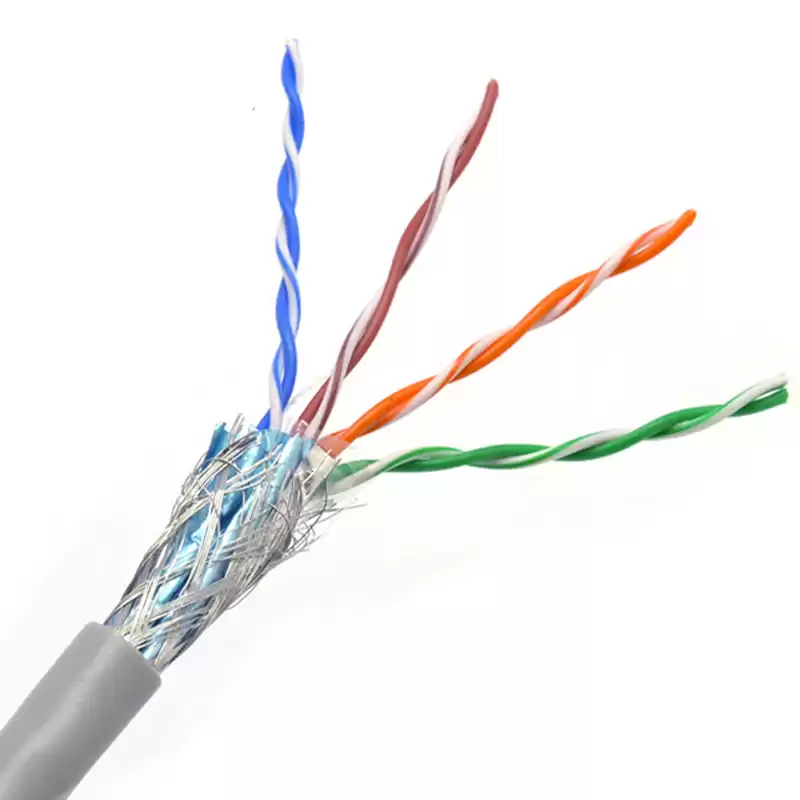

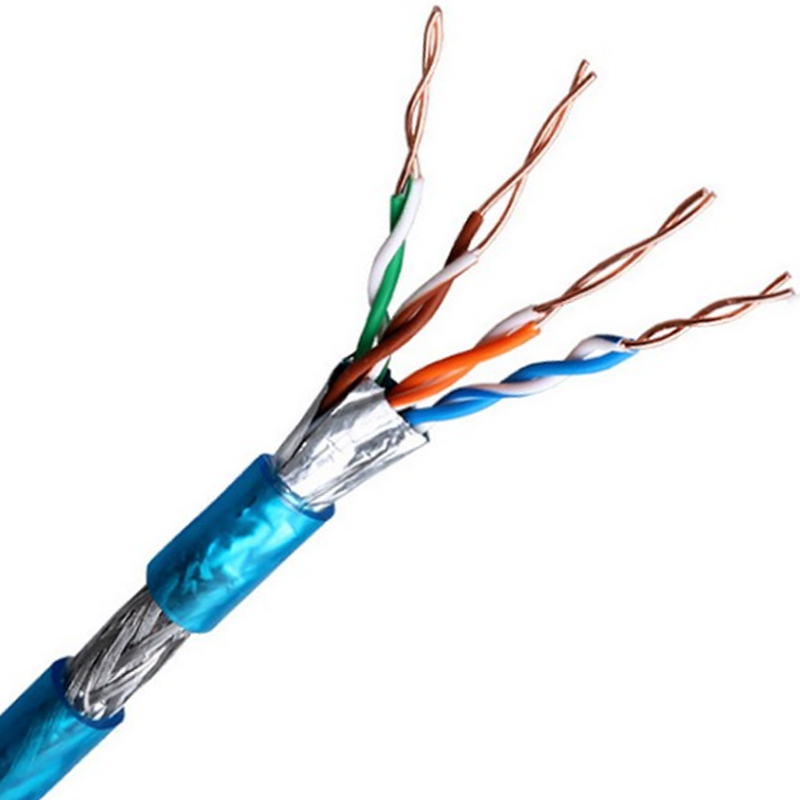

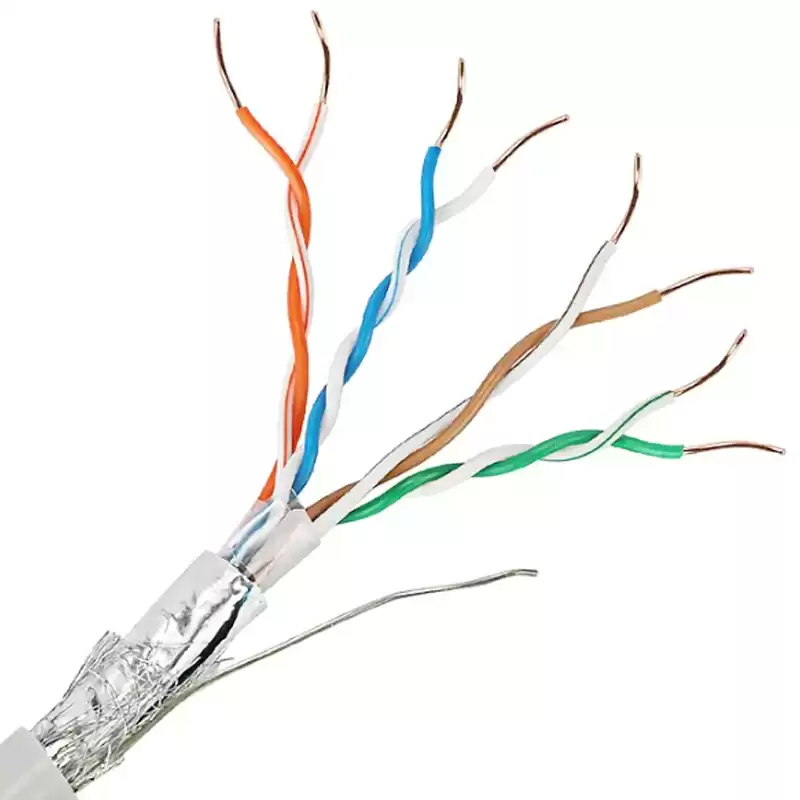

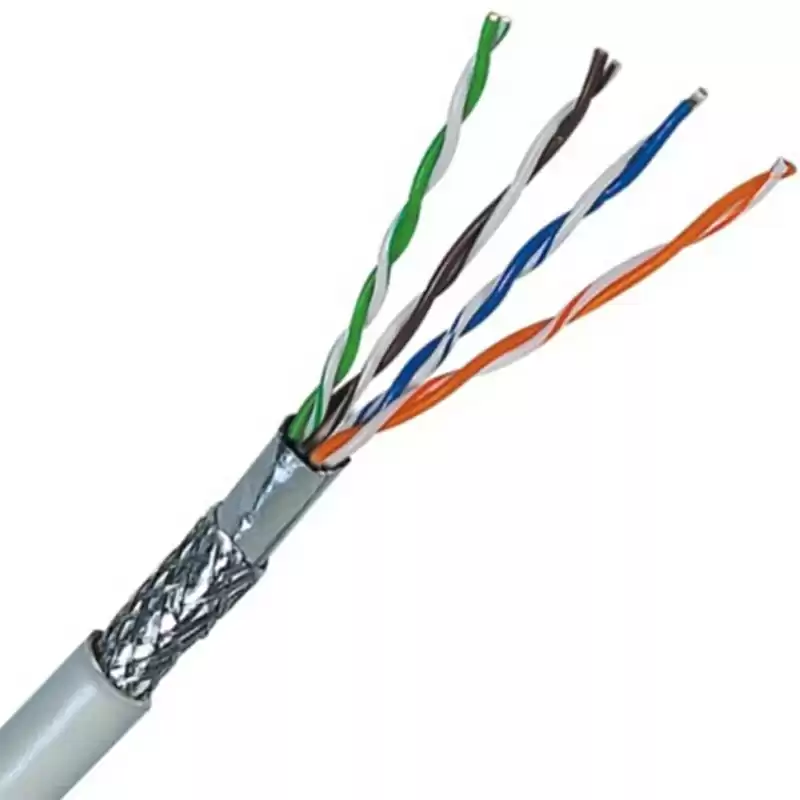

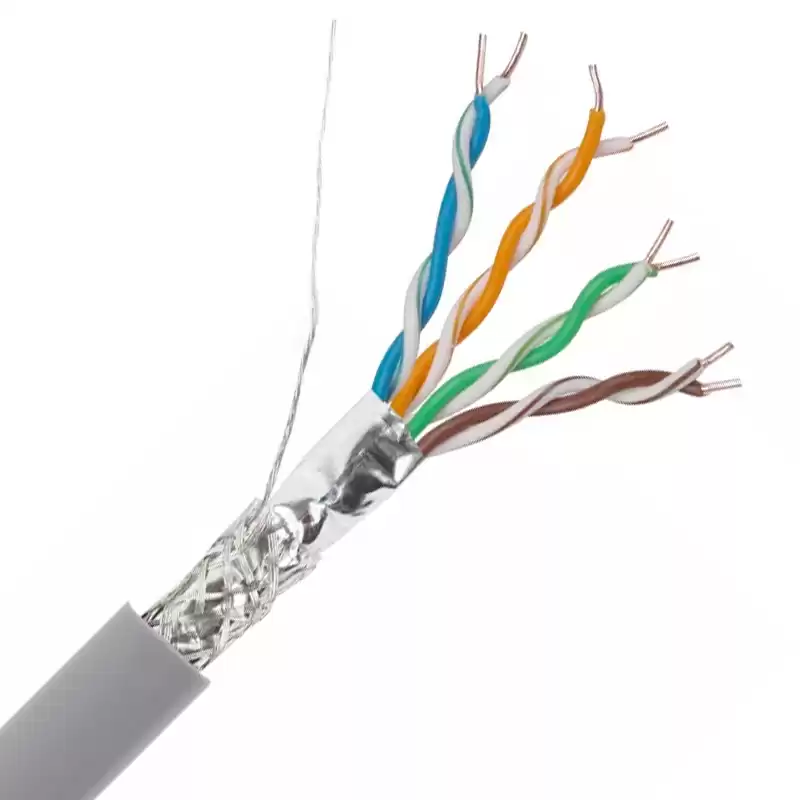

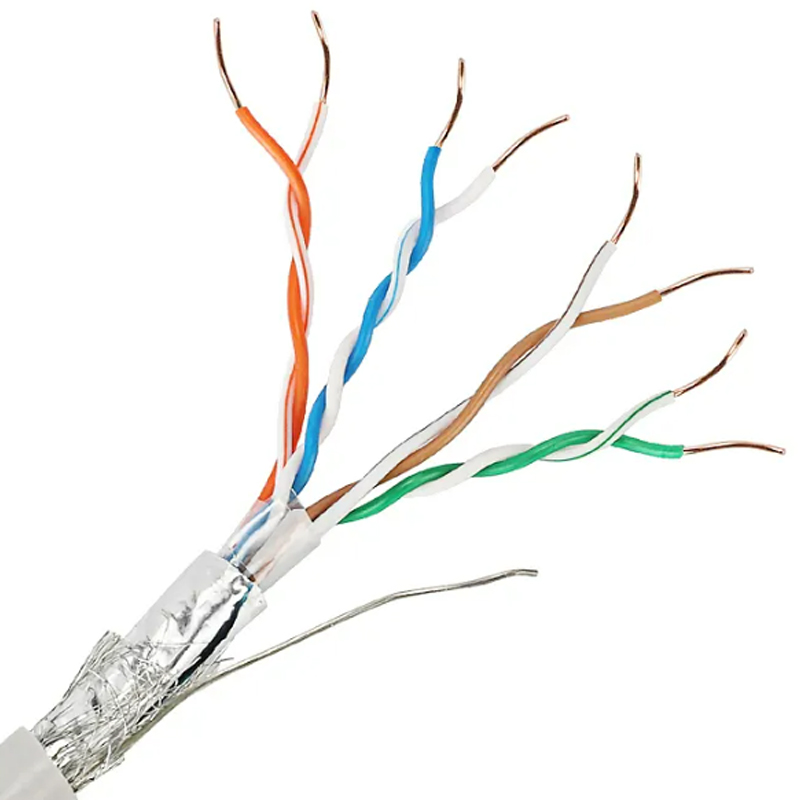

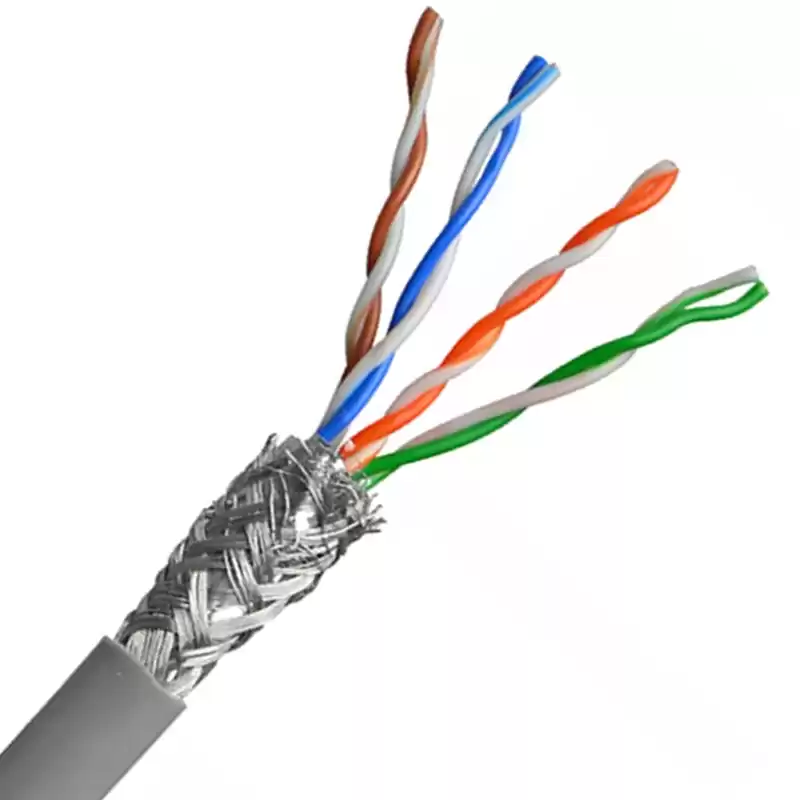

Aluminum Foil And Braiding Screened Cat 5e SFTP Network Cable
PRODUCTS FEATURES
-
4-pair shielded twisted pair cable
-
24 AWG solid copper conductor
-
Overall aluminum foil and overall tinned copper or Al-Mg braiding
-
HDPE insulation
-
PVC Sheath
-
Meets the requirements of TIA/EIA 568B
& ISO/IEC 11801
-
Packaged in an easy-to-pull box for easier
installation
PRODUCTS APPLICATION
4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
PRODUCTS SPECIFICATION
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
Aluminum Foil And Braiding Screened Cat 5e SFTP Network Cable
|
|
Conductor Material
|
Plain annealed copper wires, bare copper, Class 1.
|
|
Conductor Structure
|
8C x 1/0.50 mm.
|
|
Insulation Material
|
HDPE (High Density Polyethylene).
|
|
Insulation Thickness
|
0.21 mm.
|
|
Insulation Colour
|
Brown, brown/white; blue; blue/white;
orange, orange/white; green, green/white.
|
|
Screen
|
Aluminum Foil
|
Braiding
|
Tinned copper or Al-Mg braiding
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
0.50 mm.
|
|
Sheath Colour
|
White, brown, orange, grey, blue, or black.
|
|
Core Number
|
8 cores, 8C, 4x2 Cores.
|
|
Out Diameter
|
6.6 mm.
|
|
About Net Weight
|
14 kg/box.
|
|
Production Standard
|
ANSI/EIA/TIA-568B, ISO/IEC 11801.
|
|
Packing Type
|
305 meters per roll with inner box, 4 inner boxes in 1 carton or as your request.
|
ELECTRICAL CHARACTERISTICS
|
Frequency (MHZ)
|
Impedance (ohm)
|
Return Loss (dB)
|
Attenuation (dB/100m)
|
NEXT Power Pair (dB)
|
ACR (dB)
|
Next Power Sum (dB)
|
ELFEXT Worst Pair (dB/100m)
|
ELEXT Power Sum (dB/100m)
|
Nominal Velocity Propagation
|
|
0.772
|
100 ± 15
|
19.4
|
1.8
|
76.0
|
74.0
|
74.0
|
70.0
|
67.0
|
0.65
|
|
1.0
|
100 ± 15
|
20.0
|
2.0
|
74.3
|
72.0
|
72.3
|
67.8
|
64.8
|
|
4.0
|
100 ± 15
|
23.0
|
3.8
|
65.5
|
61.0
|
63.3
|
55.8
|
52.8
|
|
8.0
|
100 ± 15
|
24.5
|
5.3
|
60.8
|
55.0
|
58.8
|
49.7
|
46.7
|
|
10.0
|
100 ± 15
|
25.0
|
6.0
|
59.3
|
53.0
|
57.3
|
47.8
|
44.8
|
|
16.0
|
100 ± 15
|
25.0
|
7.6
|
56.2
|
49.0
|
54.2
|
43.7
|
40.7
|
|
20.0
|
100 ± 15
|
25.0
|
8.5
|
54.8
|
46.0
|
52.8
|
41.8
|
38.8
|
|
25.0
|
100 ± 15
|
24.3
|
9.5
|
53.3
|
44.0
|
51.3
|
39.8
|
36.8
|
|
31.25
|
100 ± 15
|
23.6
|
10.7
|
51.9
|
41.0
|
49.9
|
37.9
|
34.9
|
|
62.5
|
100 ± 15
|
21.5
|
15.4
|
47.4
|
32.0
|
45.4
|
31.9
|
28.9
|
|
100.0
|
100 ± 15
|
20.1
|
19.8
|
44.3
|
24.5
|
42.3
|
27.8
|
24.8
|
|
200.0
|
100 ± 22
|
18.0
|
29.0
|
39.8
|
10.8
|
37.8
|
21.8
|
18.8
|
|
250.0
|
100 ± 22
|
17.3
|
32.8
|
38.3
|
5.5
|
36.3
|
19.8
|
16.8
|
MORE INFORMATION
|
Product
|
Cat 5e Network Cable Construction
|
Cat 6 Network Cable Construction
|
|
Cat 5e UTP
|
Cat 5e FTP
|
Cat 5e SFTP
|
Cat 6 UTP
|
Cat 6 FTP
|
Cat 6 SFTP
|
|
Number of Twisted Pairs
|
4
|
4
|
4
|
4
|
4
|
4
|
|
Conductor
|
24 AWG Solid Bare Copper (Class 1)
|
23 AWG Solid Bare Copper (Class 1)
|
|
Insulation
|
High Density Polyethylene (HDPE)
|
High Density Polyethylene (HDPE)
|
|
Drain Wire
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
|
Separator
|
-
|
-
|
-
|
Yes
|
Yes
|
Yes
|
|
Screen
|
-
|
Aluminum Foil
|
Aluminum Foil
|
-
|
Aluminum Foil
|
Aluminum Foil
|
|
Braiding
|
-
|
-
|
Tinned Copper
or Al-Mg
|
-
|
-
|
Tinned Copper
or Al-Mg
|
|
Rip Cord
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
|
Sheath
|
PVC or LSZH
|
PVC or LSZH
|
PVC or LSZH
|
PVC or LSZH
|
PVC or LSZH
|
PVC or LSZH
|
