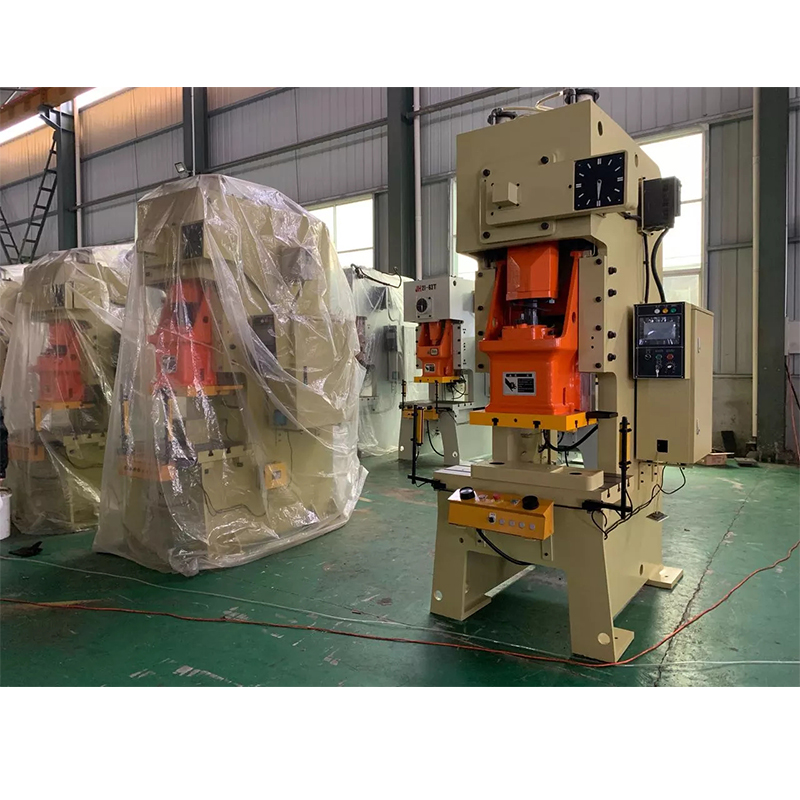

Aluminum Foil Container production Making Machine
1.the body of high-quanlity steel,after tempering(or vibration aging) shot blasting treatment good rigidity,accuracy and stability.
2,Longitudinal crankshaft structure,compact structure,crankshaft after high frequency quenching grinding processing,good smoothness,flexible rotation;rectangular six face lengthened guide,guide surface bronze panels and guiding preciion high.
3,Gas dynamic double balance cylinder,balance slide and theupper die weight,educe the impact and noise,elimination of the connecting rod and the slide block gap,reduce by parts of impact and abrasion.
4,Overall adopts imported PLC centralized control,gas path selection of imported safe double valve control can realize dynamic,inching,single and continuous punching.
5,Slider,a guide rail,a worktable,a conneting rod,a connecting sleeve and key pieces are made of resin sand manufacture, with the ordinary clay sand manufacturing compared to improve the surface roughness 1-2 level,improve the dimensional accuracy of 2-3 grade
6,The electric adjusting device for mold height,fine configurationg key parts such as pneumatic components,electrcal components,sealing parts,buttons and other are imported tonnage products,JH21-60 over and above the.
|
NAME
|
Aluminium foil food container making machine
|
MODEL& Total Power(kw)
|
JH-21 45 & 5.5ton
|
Nominal Pressure
|
450
|
slide stroke(mm)
|
80mm
|
Travel times(min)
|
50
|
Maximum seal height(mm)
|
350
|
Die handle hole diameter(mm)
|
50
|
Depth of tiger mouth(mm)
|
410*340mm
|
Stemhole Size(mm)
|
250mm
|
Size of working sub-table(mm)
|
750*470mm
|
Diameter of worktable auxiliary hole(mm)
|
150mm
|
Main table size
|
350*225
|
Closed adjustable height
|
80
|
