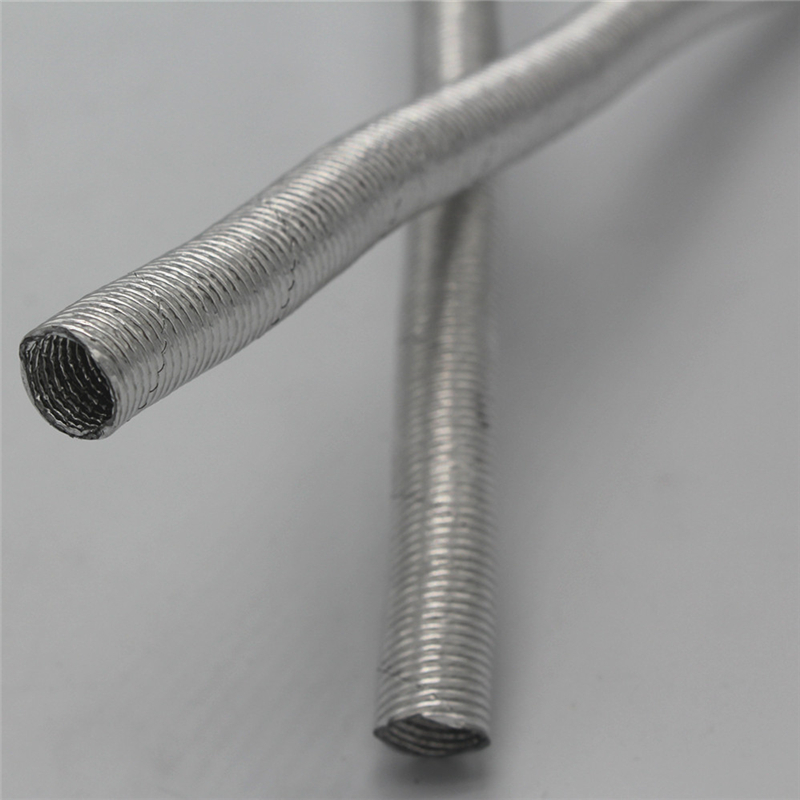

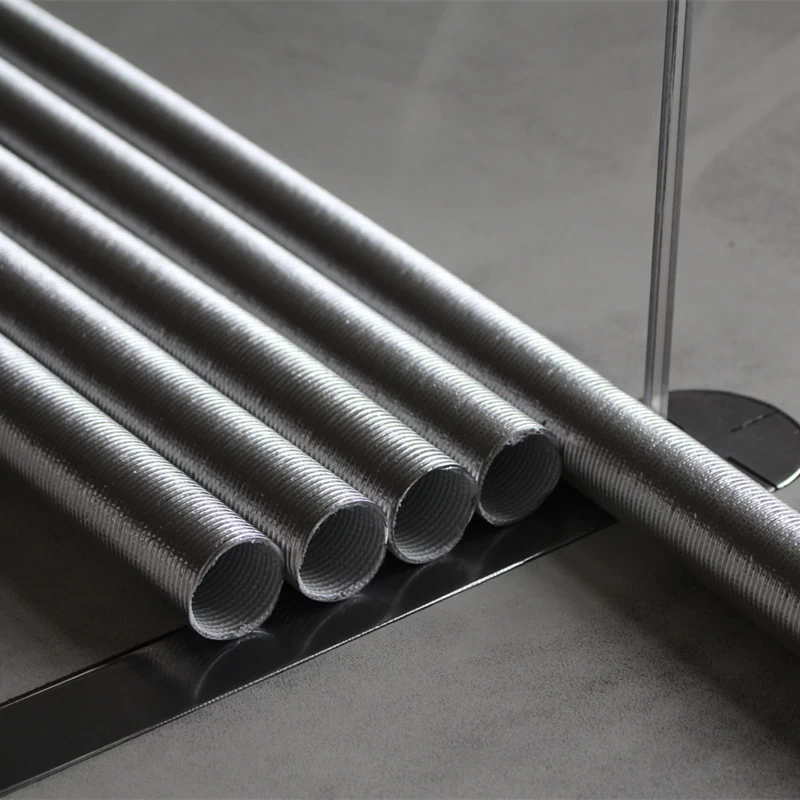

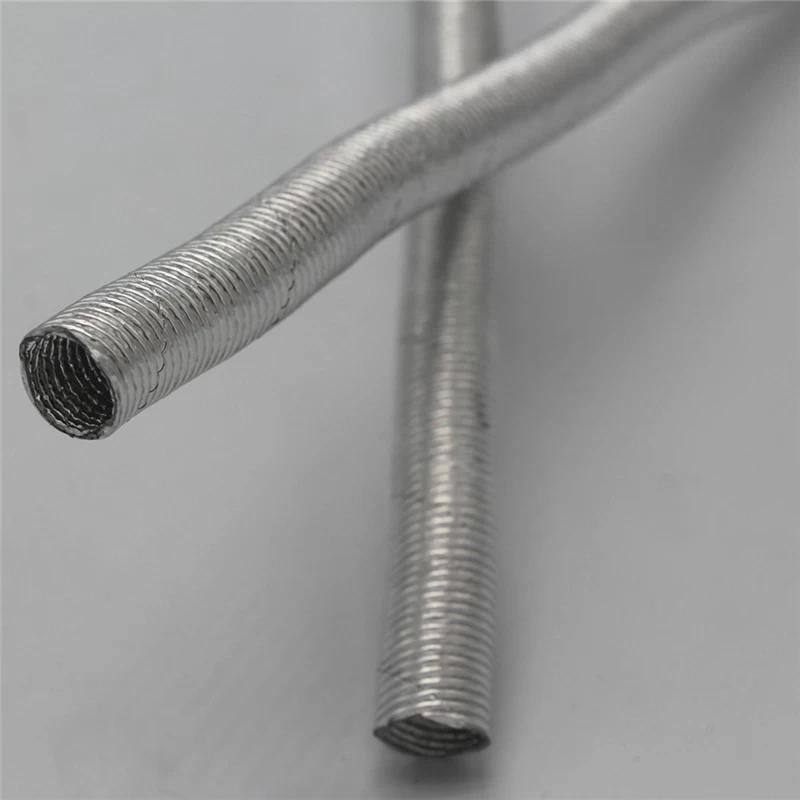

Aluminum Foil Corrugated Tube

AAF Aluminum Foil Corrugated Tube can be used to protect industrial wires, cables, hydraulics hoses, piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.



Description

AAF Aluminum Foil Corrugated Tube is made by 3 layer materials.


AAF material for ducting is an industry standard.

A - Inner layer - Aluminium heat reflective

A - Centre layer - Aluminium heat reflective

F - Outer layer - Fiberglass / Glass Fiber heat insulation


Application

Elastomere tubes
All kinds of medium-carrying tubes
Bowden cables and gear cables
Wire sets
Temperature-sensitive parts
Blast/Exhaust Dryer
Print/Copy Machines
AC-supply/Exhaust
Industrial/Machine Industries
Construction, Moving Industrie


Specifications


Part Number Construction Material Size
mm
HPT-APK APK aluminum, kraft paper, plastic film 6-140
HPT-PAK PAK kraft paper, aluminum, plastic film 6-140
HPT-KAK PAP kraft paper, aluminum, kraft paper 6-140
HPT-KAK KAK plastic film, aluminum, plastic film 6-140
HPT-APP APP aluminum, kraft paper, kraft paper 6-140
HPT-AP AP aluminum, kraft paper 6-140
HPT-3A 3A 3 layer aluminum 6-140
HPT-6A 6A 6 layer aluminum 6-140
HPT-A5P A5P aluminum, 5 layer kraft paper 6-140
HPT-AFA AFA aluminum, fiberglass, aluminum 6-140
HPT-AAF AAF aluminum, aluminum, fiberglass 6-140
HPT-FAA FAA fiberglass, aluminum, aluminum 6-140


Technical Datasheet
Material Aluminum, fiberglass
Working temperature -40 - +343
Flammability VW-1
Melting point +537
Standard Color Silver
Standard Length Customs length
MOQ 100 meter each size
Cutting tool Scissors

Notes:
The paper have standard grade and fire resistant grade.
