Description

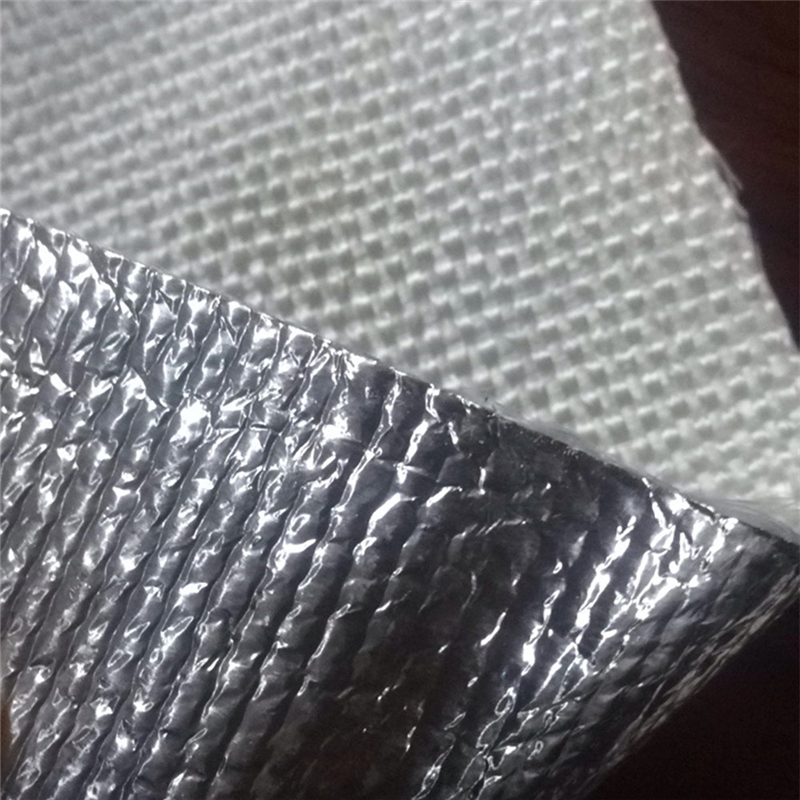

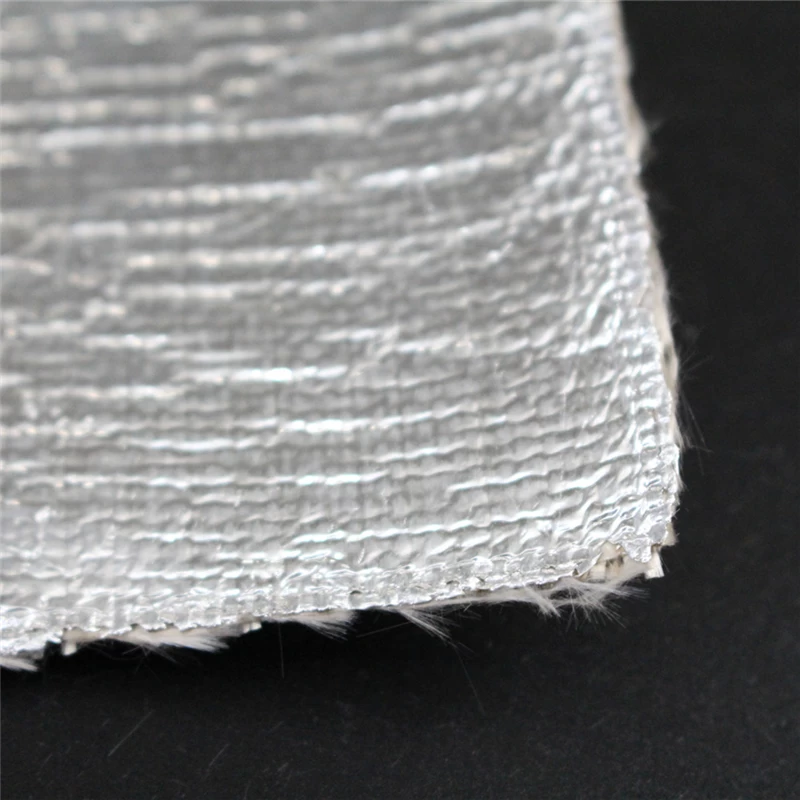

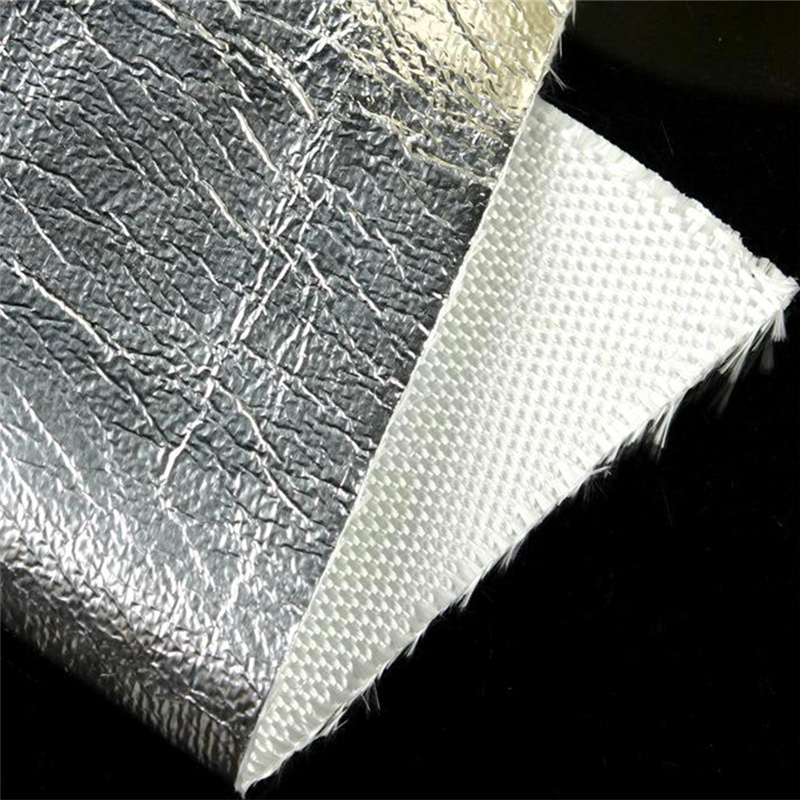

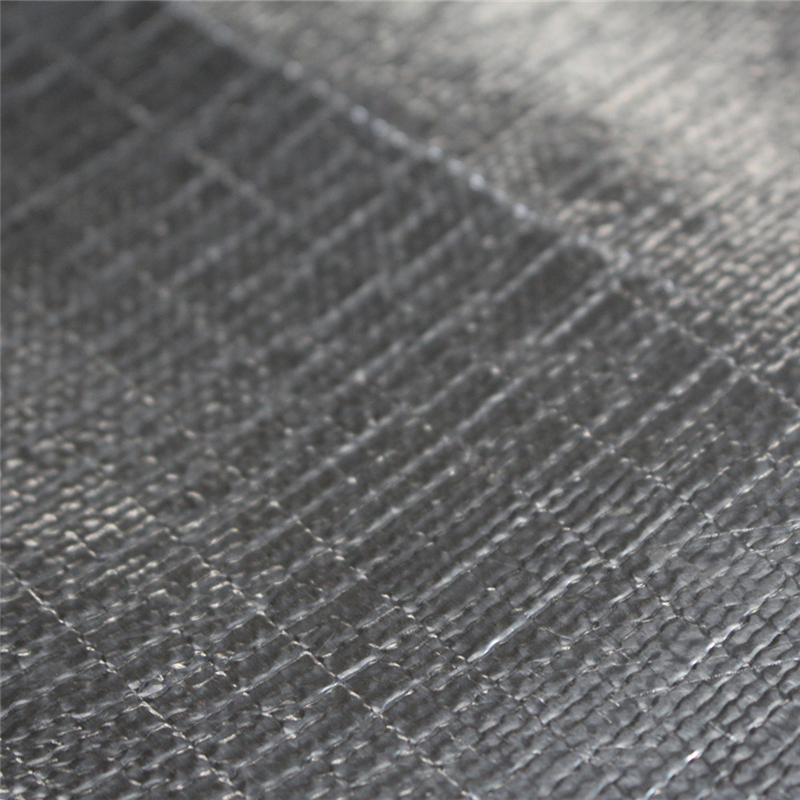

MFF-AL and TFF-AL heat reflective Aluminum Foil Fiberglass Fabric made by aluminum foil and fiberglass. Reflect more then 95% of the radiant heat.
Features
This cloth is also available with a self-adhesive backing. The adhesive is acrylic based, and will burn-off or vaporize at temperatures above 400°F. If prolonged use of the self-adhesive fabric above 400°F is desired, then alternate securing methods such as fasteners, wire or clamps should be used.
Application
This cloth often used to fabricate insulated equipment covers, welding curtains and blankets.
Specifications
|
DATASHEET
|
|
Part NO.
|
Fiberglass
|
Weight
|
Thickness
|
Width
|
Length
|
|
oz/yard
|
g/mtr
|
inch
|
mm
|
yard
|
cm
|
yard
|
meter
|
|
MFF-AL-0.2
|
Filament
|
6.76
|
230.00
|
0.0079
|
0.20
|
40.00
|
100.00
|
109.40
|
100.00
|
|
MFF-AL-0.43
|
Filament
|
14.12
|
480.00
|
0.0169
|
0.43
|
40.00
|
100.00
|
109.40
|
50.00
|
|
MFF-AL-0.6
|
Filament
|
19.41
|
660.00
|
0.0236
|
0.60
|
40.00
|
100.00
|
109.40
|
50.00
|
|
MFF-AL-0.8
|
Filament
|
26.47
|
900.00
|
0.0315
|
0.80
|
40.00
|
100.00
|
109.40
|
50.00
|
|
TFF-AL-0.8
|
Texturized
|
19.12
|
650.00
|
0.0315
|
0.80
|
40.00
|
100.00
|
109.40
|
50.00
|
|
TFF-AL-1
|
Texturized
|
25.00
|
850.00
|
0.0394
|
1.00
|
40.00
|
100.00
|
109.40
|
50.00
|
|
TFF-AL-1.5
|
Texturized
|
30.88
|
1050.00
|
0.0591
|
1.50
|
40.00
|
100.00
|
109.40
|
50.00
|
|
TFF-AL-2
|
Texturized
|
39.71
|
1350
|
0.0787
|
2
|
40.00
|
100.00
|
109.40
|
50.00
|
|
TFF-AL-2.5
|
Texturized
|
48.53
|
1650
|
0.0984
|
2.5
|
40.00
|
100.00
|
109.40
|
50.00
|
|
TFF-AL-3
|
Texturized
|
54.41
|
1850
|
0.1181
|
3
|
40.00
|
100.00
|
109.40
|
50.00
|
|
Technical Datasheet
|
|
Material
|
Fiberglass, aluminum
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+550℃
|
|
Standard Color
|
White
|
|
Standard Thickness
|
1.5 mm
|
|
MOQ
|
50 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
