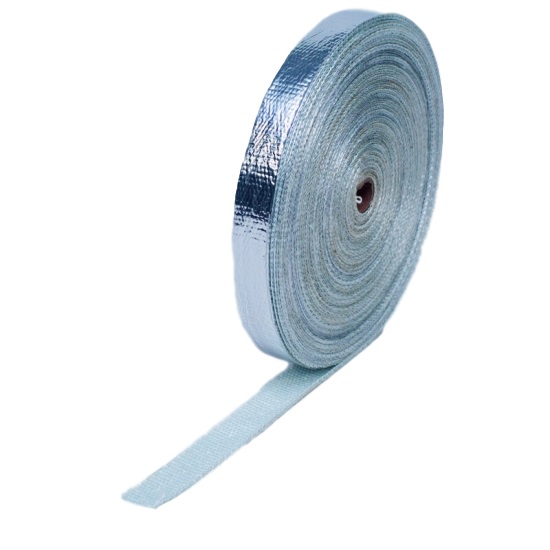

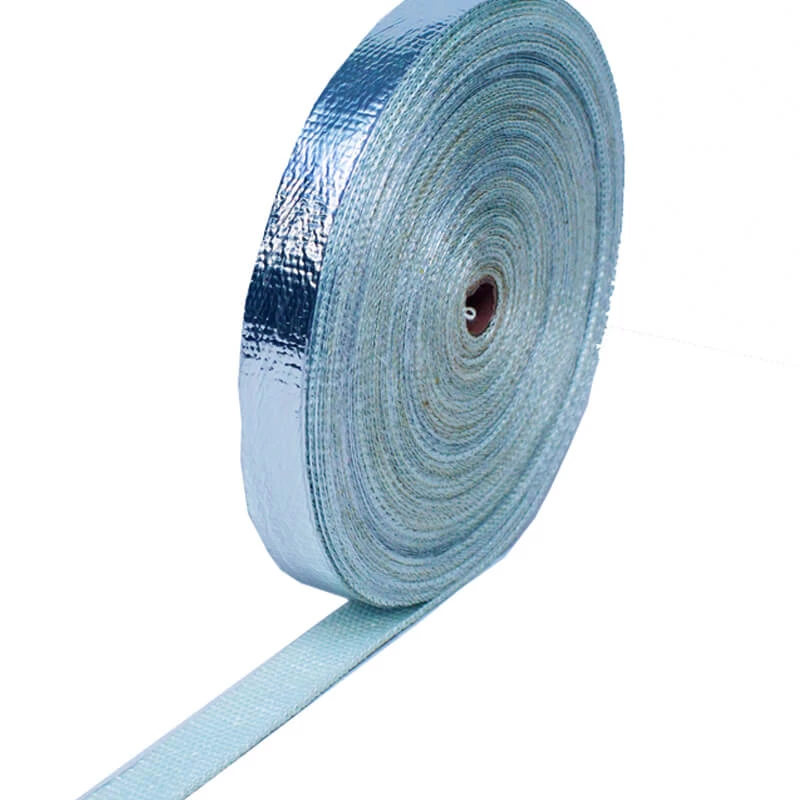

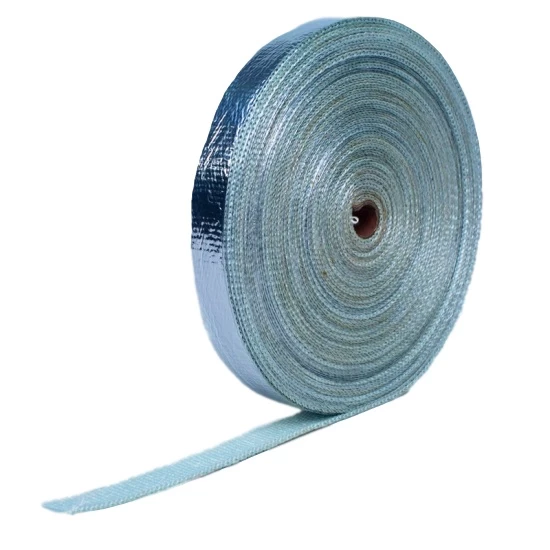

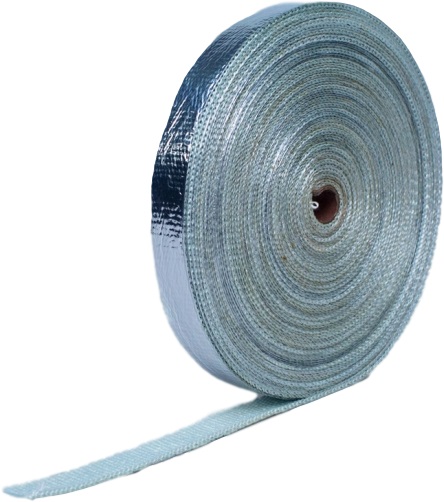

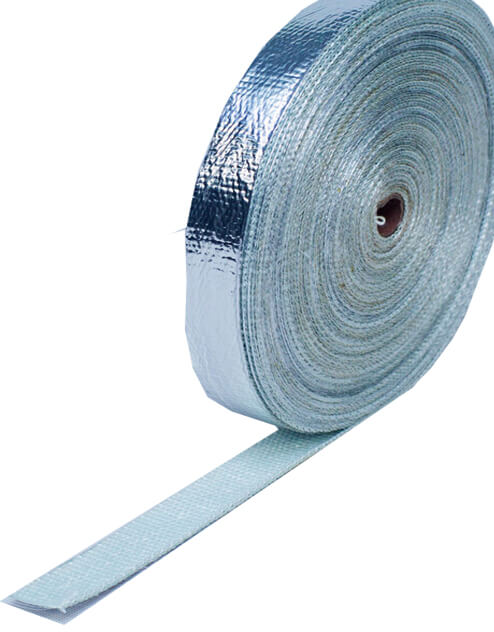

Aluminum Foil Fiberglass Tape
1.Product Introduction
ZBAO Aluminium Foil Fiberglass Tape is made of e-grade bulked glass fiber with aluminium foil.It has outstanding reflectivity to the heat and ray.Protects from radiant heat by reflecting 90% of the heat that contacts its surface. The aluminum layers will not delaminate from the glassfiber,even under the most extreme heat conditions.
Excellent rediant heat reflection provides good protection to the hoses,cables,wires and pipelines,which are working under high heat conditions;Low heat conductivity to keep the underlying pipelines cool. It is widely used as an excellent automotive under-the-hood protection.
2.Product Characters
|
Size/Width
|
25mm,50mm,75mm,100mm
|
|
Colour
|
White
|
|
Working temperature
|
Continues working at 550℃
|
|
Character
|
High tempt. & flame resistant,thermal insulation,heat and ray reflection
|
3.Standard Specifications
|
ZBAO Part No.
|
Width/mm
|
Thickness/mm
|
Roll Length/m
|
|
ZBAL-T-25
|
25
|
1.5,2.0,3.0
|
10-30
|
|
ZBAL-T-50
|
50
|
1.5,2.0,3.0
|
10-30
|
|
ZBAL-T-75
|
75
|
1.5,2.0,3.0
|
10-30
|
|
ZBAL-T-100
|
100
|
1.5,2.0,3.0
|
10-30
|
