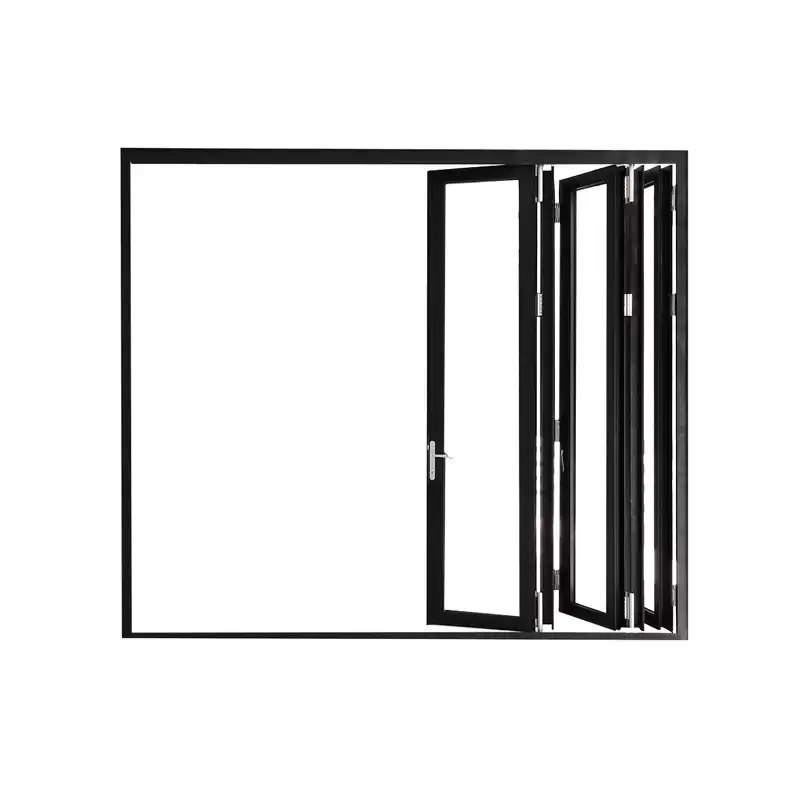

Aluminum Frame Bi-Folding Patio Door Large Opening Door
Bi-folding doors can give a great room or living space the best of both worlds, dividing it into two separate areas or opening when needed to make the most of the entire area. Our bi-fold patio doors utilize a premium locking mechanism for maximum compression to protect you from extreme pressure, wind and water conditions, and wind-driven debris, while reducing your energy costs. Plus, our bi-fold doors are designed to keep the home cool during the warmer months to help make the room usable year-round.
- HFD75 is the economical solution for folding door with 69mm sash thickness.
- Bottom tracking design with the rolling wheels running.
- Suitable for covering large opening
- Unlimited use of sashes each of which may have 6.0m maximum height and 250KG load-bearing rollers.
| Performance |
Heat Preservation Performance
W(m2.k) |
Sound Insulation Performance
(DB) |
Watertight Performance
(Pa) |
Airtight Performance |
Glass Thickness(mm)Wind Load Resistance
(KPA) |
|
6+12A+6 Low-E,2.3-2.8,
level 5/6
|
35DB
level 4
|
500PA
level 5
|
level 5
|
4.1KPA
level 7 |
| Parameters |
|
Suitable Width/Height of Sash
(mm)
|
Visible Width/Height
(mm)
|
Aluminium width
(mm)
|
Glass(Thickness) |
|
Bi-Folding Door
-Width 600-1100mm
-Height 1920-6000mm
-Weight 150kg
|
HFD83
Frame Width 80mm;
Sash Width 84mm.
|
HFD83
Frame Depth 92mm
Sash Depth 83mm
|
SGU:
6-10mm
DGU:
19-35mm |
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
