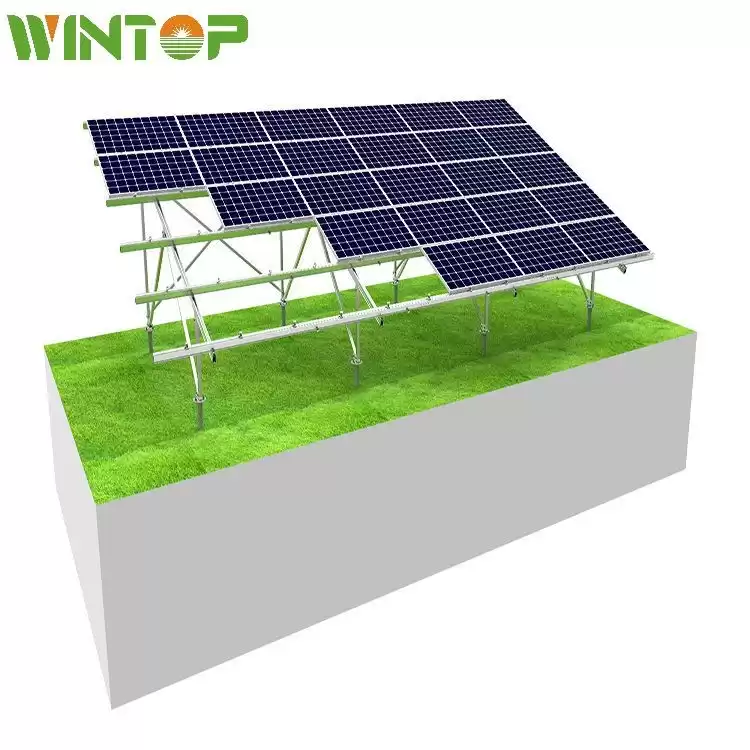

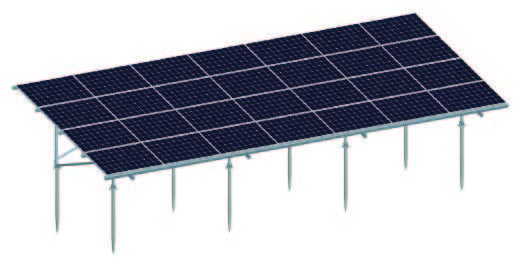

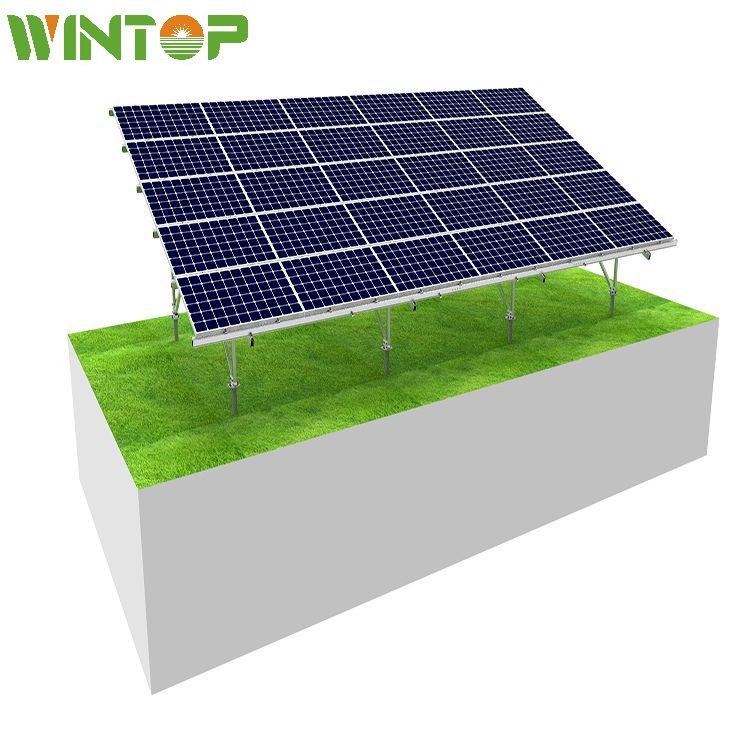

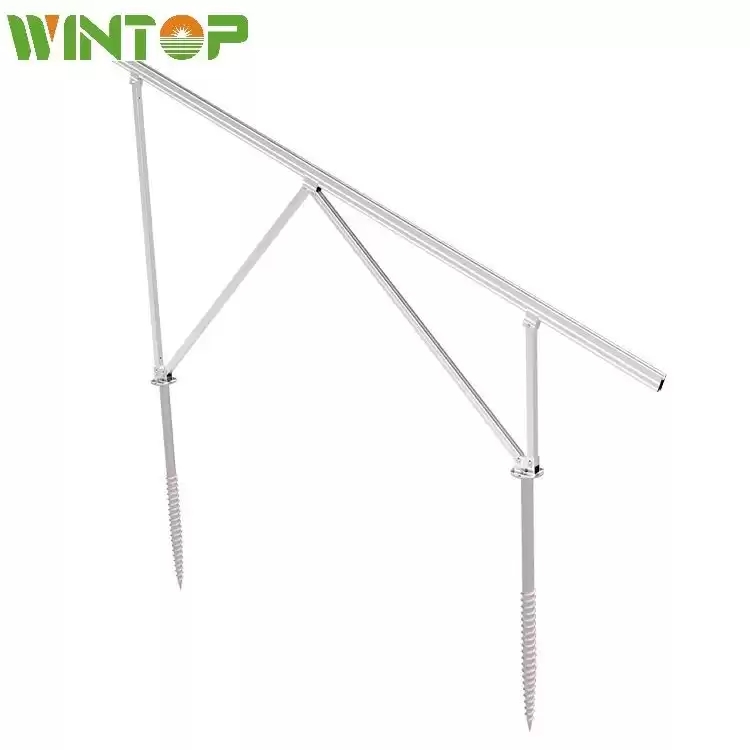

Aluminum Ground Screw Solar Mounting System
Product Description
Aluminum ground screw solar mounting system wide installation, suitable for various soils such as sandy soil and loamy soil.Ground-mounted solar panels can be installed in any place with enough open space and good sunlight. The panel can be placed anywhere from a few inches to a few feet above the ground, depending on how the bracket system is set up.
Technical Parameters
|
Installation location
|
Ground
|
|
Installation foundation
|
Ground Screw
|
|
Installation angle
|
Up to request
|
|
Wind load
|
60m/s (216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Distance from module lowest point to the ground
|
Up to request
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Light weight, easy transportation & installation and safe construction;
-
The surface is treated by oxidation, high corrosion resistance & good stability;
-
Suitable for various designs and solutions;
-
The maxiumum pre-assembly, save contruction time and labor cost;
-
Wide installation, suitable for various soils such as sandy soil and loamy soil;

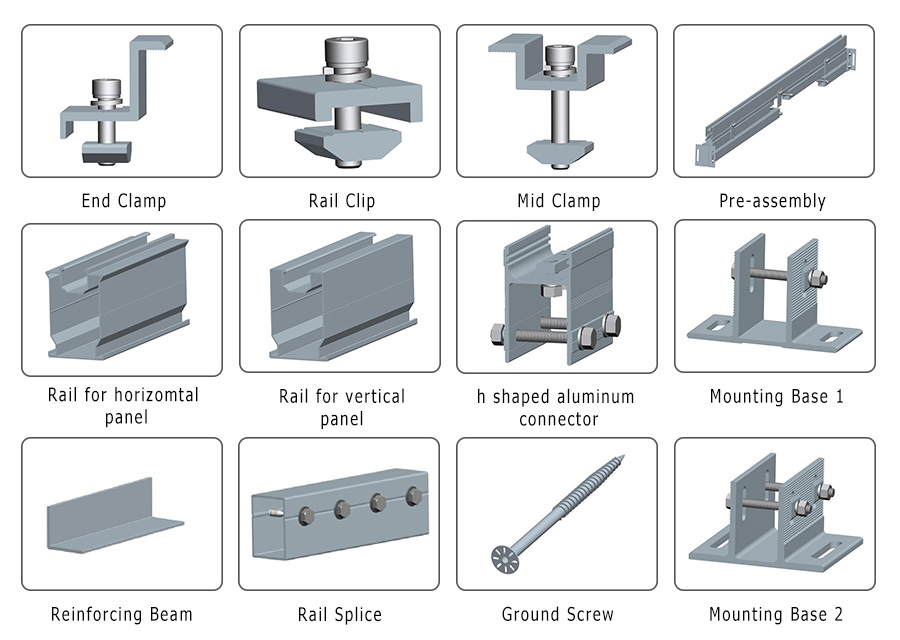

Components

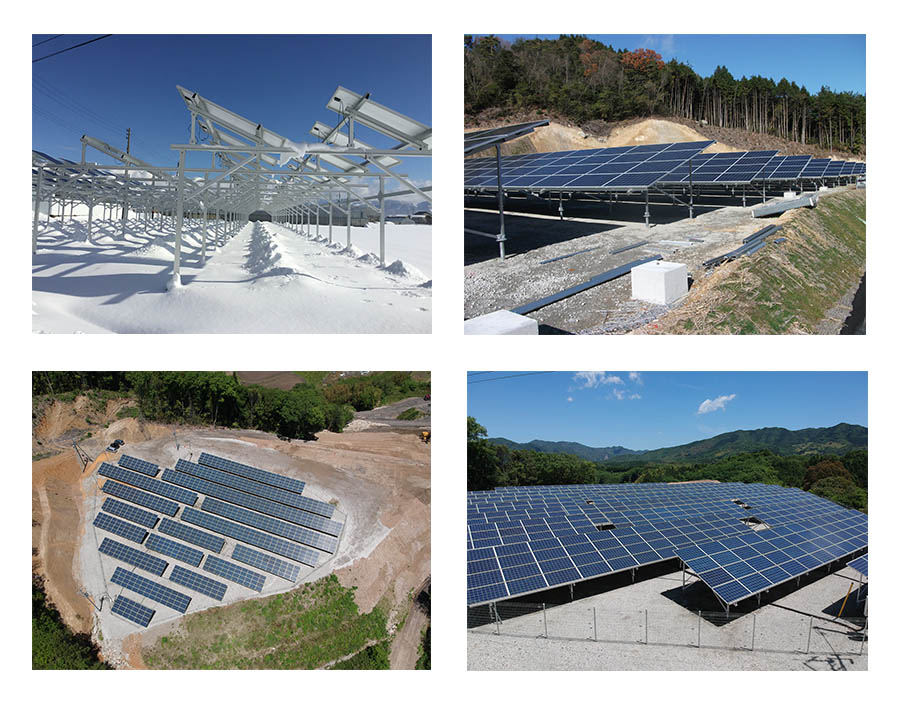

Project
Certificate
QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
FAQ
(1) Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2016.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
