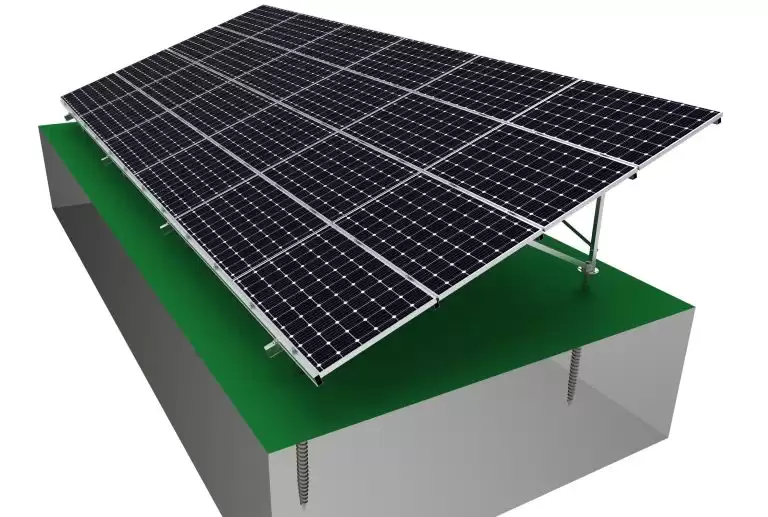

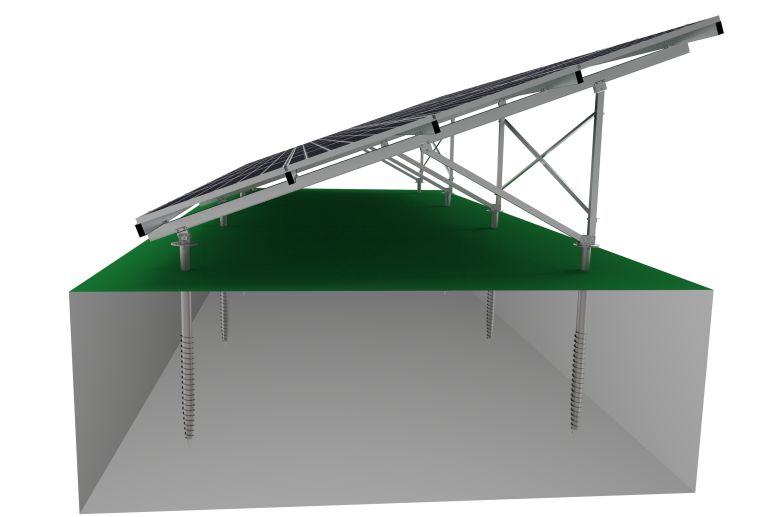

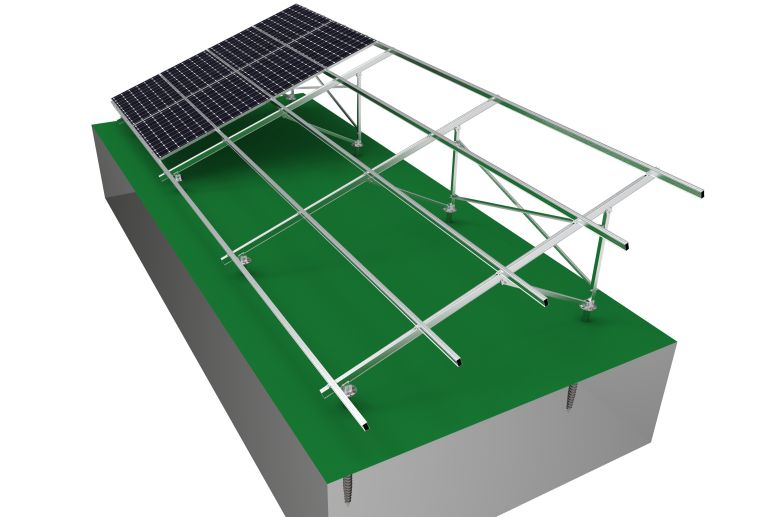

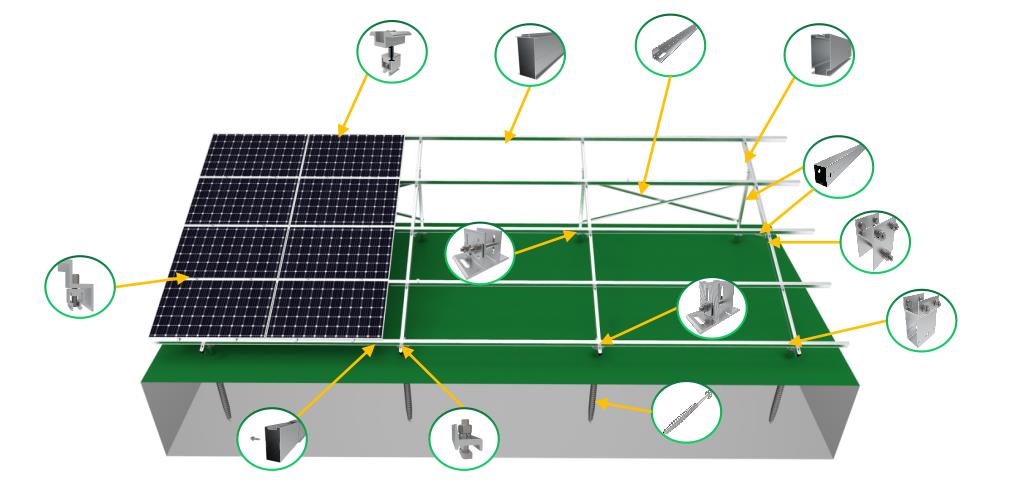

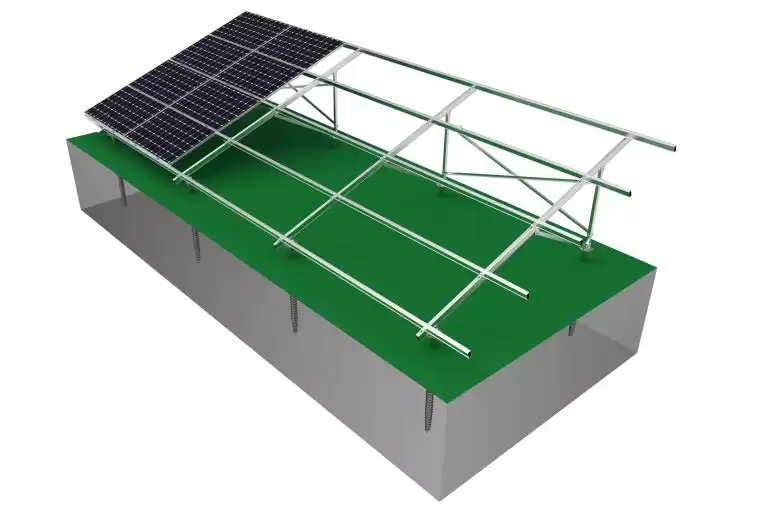

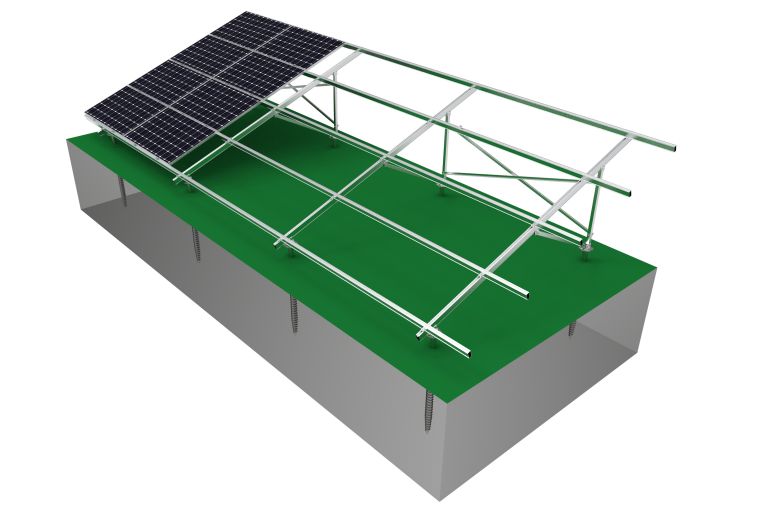

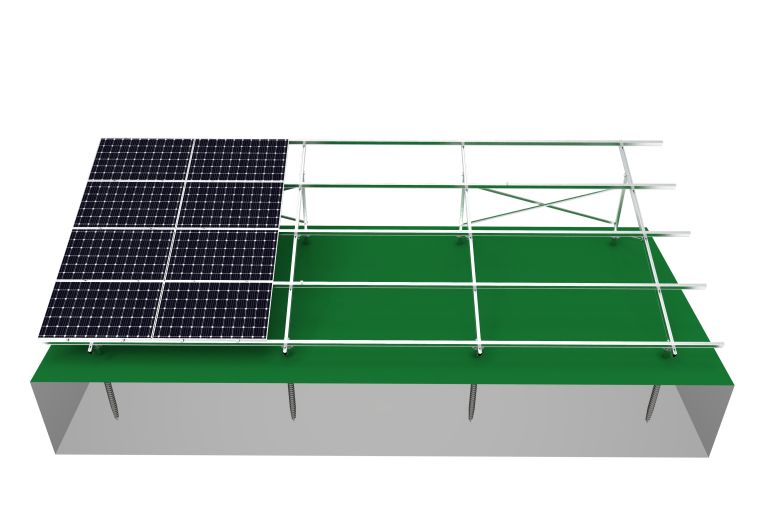

Aluminum Ground Solar Mounting Structure

The Aluminum Ground Mount System is applicable for solar pv plant in large installation site. The system material with anodized 10-15μm surface treatment, it has excellent anti-corrosive properties and strength.




Aluminum Solar Ground Mount for solar ground mounting bracket is designed using aluminum ,thanks to the 10-15um surface treatment,Solar panel mountings have excellent anti-corrosive properties, suitable for medium to large scale project installation, the folding prefab structure design guarantees efficiency for onsite installation and transportation.while the multiple columns design improves system stability.





Technical Information



Installation Site: Open large ground station
System type: Ground Solar Mounting System
Material: AL-6005-T5
PV Modules: Framed, Frameless
Module Orientation: Portrait or Landscape
Module Layout: As Designed
Angel: Fixed,can be customized designed
Wind load: 60m/s
Snow load: 1.4KN/m2
Anodized Thickness: 15 um or customized
10 years Warranty


Advantages


Easy Installation

Pre-assembled and planning before delivery in the factory saving on site installation time .


Convenient Transportation
Convenient installation,short construction period, parts have been high prefab structures on factory before delivery to packing volume and cost.


☆ Safety and Reliability
Aluminum pv mounting brackets are suitable for wind,snow area,the spiral pile bracket to ensure strong. stable system,suitable for different geological conditions, such as rock,sold, gravel, , desert, dry and hard soil.



Product Tags solar panel mounting frame design          solar frame design          solar mounting system manufacturers          Aluminum pv mounting brackets          aluminum solar pv mounting          solar panel structure design
