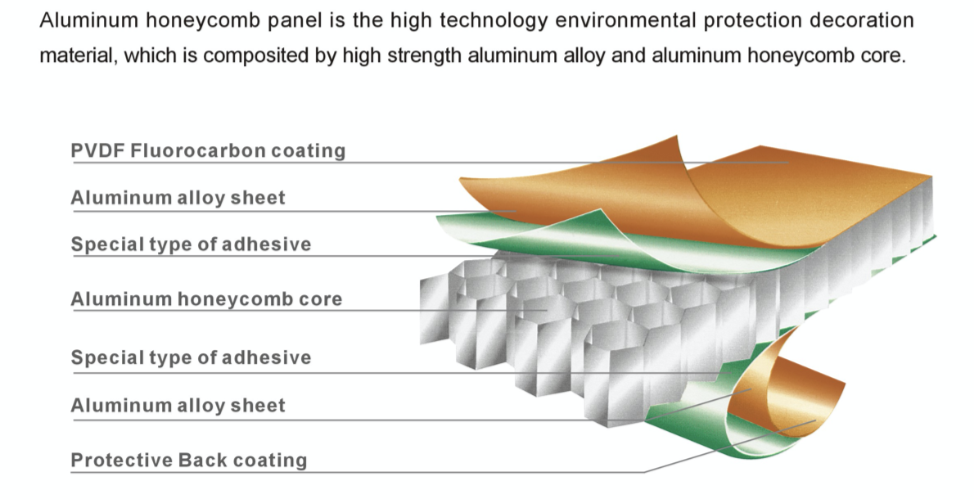

Products structure
Product specification
|
ITEM
|
DETAILS
|
|
Aluminum front sheet
|
Roller coating panel.
|
|
3003 H24, or 5052 H14 aluminum alloy as base materials.
|
|
Thickness of 0.3mm- 1.2mm
|
|
Aluminum rear sheet
|
Thickness of 0.3mm – 1.2mm
|
|
Total thickness
|
4mm, 6mm ,10mm, 16mm, 18mm, 20mm, 25mm
|
|

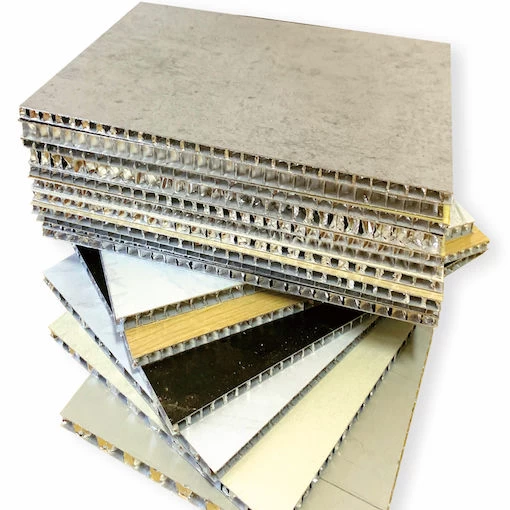

Aluminum honeycomb core
|
3003 H24 hexagon aluminum honeycomb core,
|
|
aluminum foil thickness 0.04-0.07mm, side length of 4-7 mm.
|
|
Adhesive
|
Bio-component polymer epoxy adhesive film & Bi-component modified epoxy resin.
|
|
Dimension
|
500mm＜L＜12000mm,
|
|
500mm＜W＜2000mm
|
|
Surface treatment
|
PVDF, roller painting，
|
|
Color
|
RAL color, wooden, marble, brush, sparkle color
|
Products features:
-
Extremely lightweight.
-
Excellent strength, good rigidity, and super stiffness.
-
High resistance to moisture and corrosion.
-
Fire resistance and shockproof.
-
Heat insulating and sound proof.
-
Easy to be processed into any artistic designs or unique shapes.
-
Easy and safe for installation.
-
Diversity color choices bring elegant decorative effect.
-
Cost efficiency.

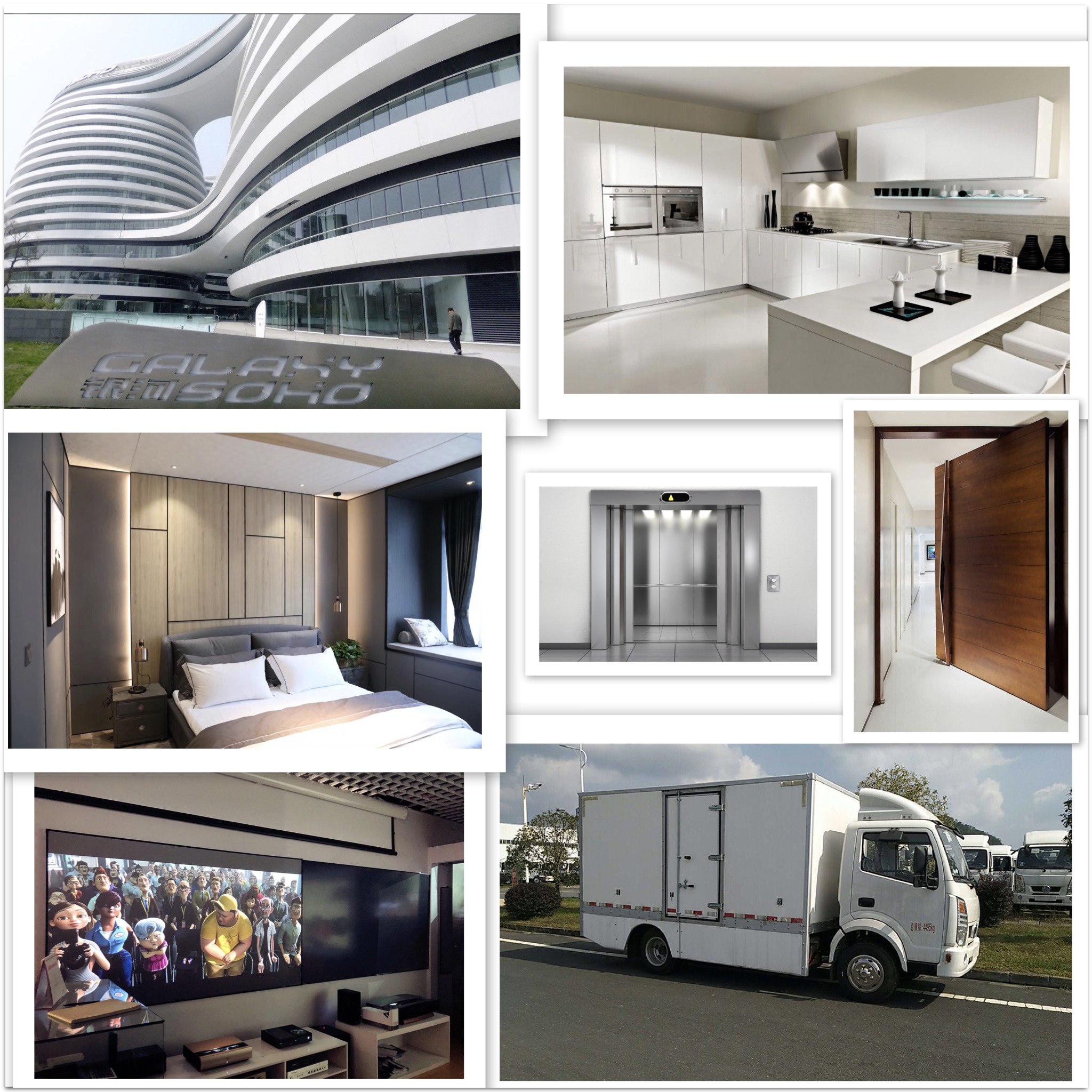

Products application:
Building & construction cladding panels
Recordable ceilings.
Furniture, door and partition
Cleanroom panels
Elevator floor and wall panels
Railway floor and partition
Laser projector screen
Dry and logistics vehicle
