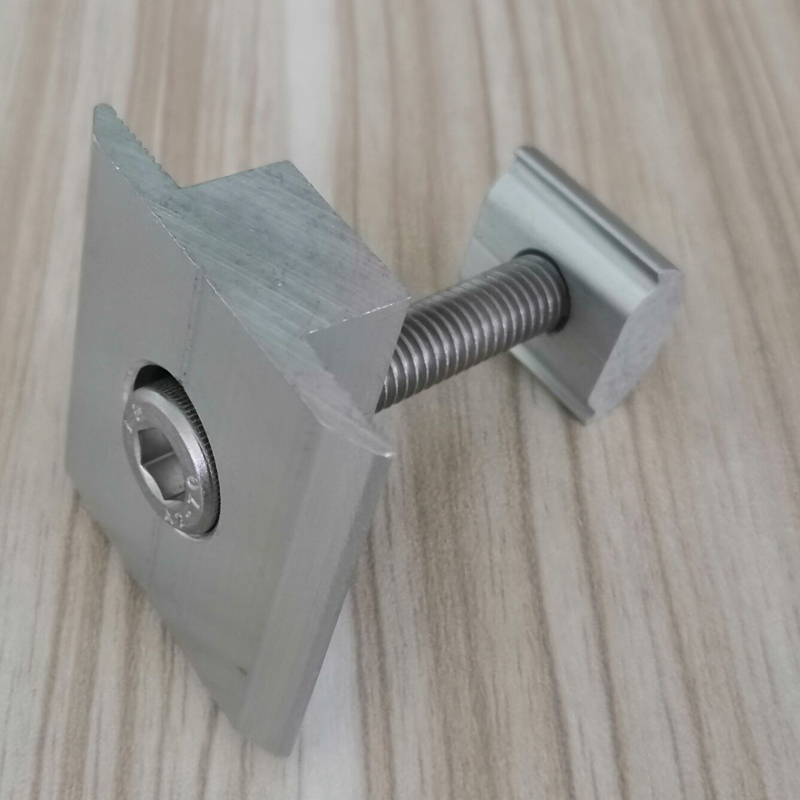

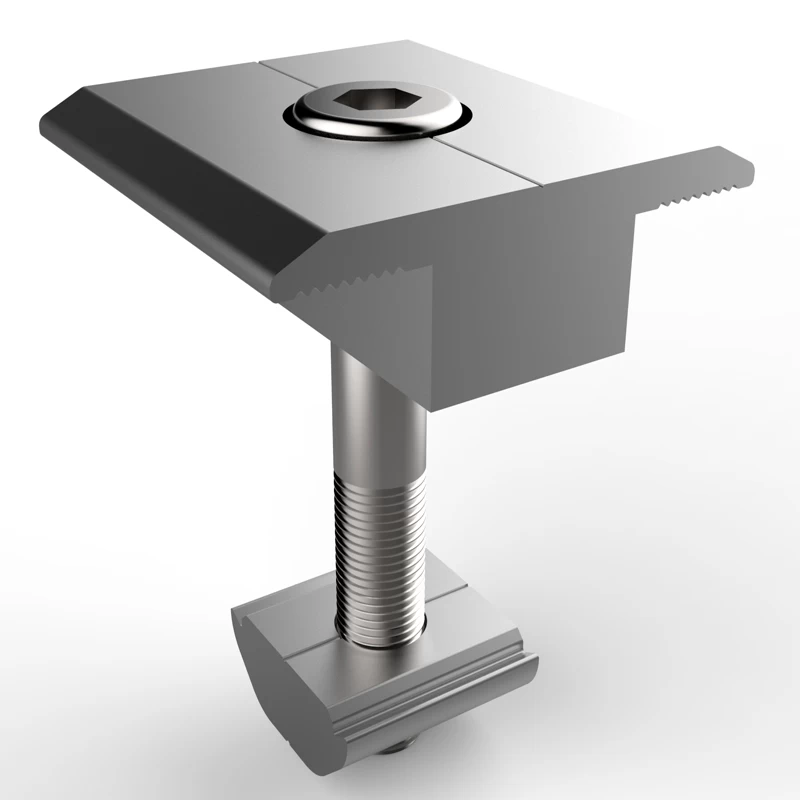

This solid inter clamp is thicker and is often used in roof
racking system to accommodate different thicknesses of solar panels by replacing the length of the bolts.

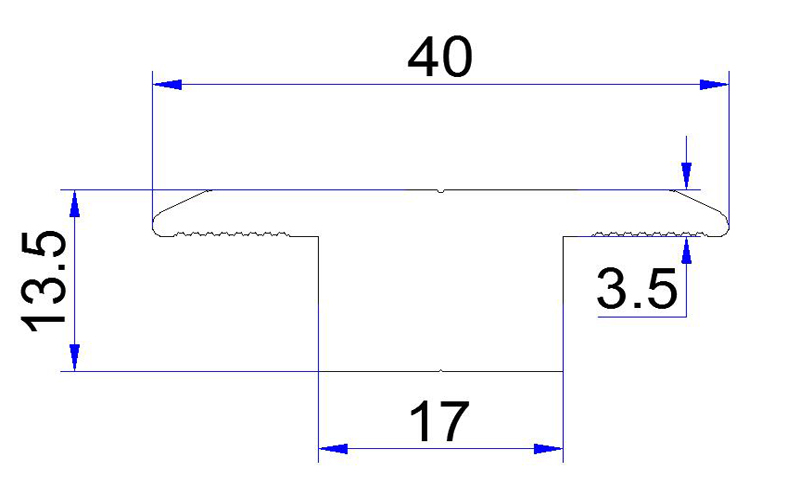

Drawing of component section

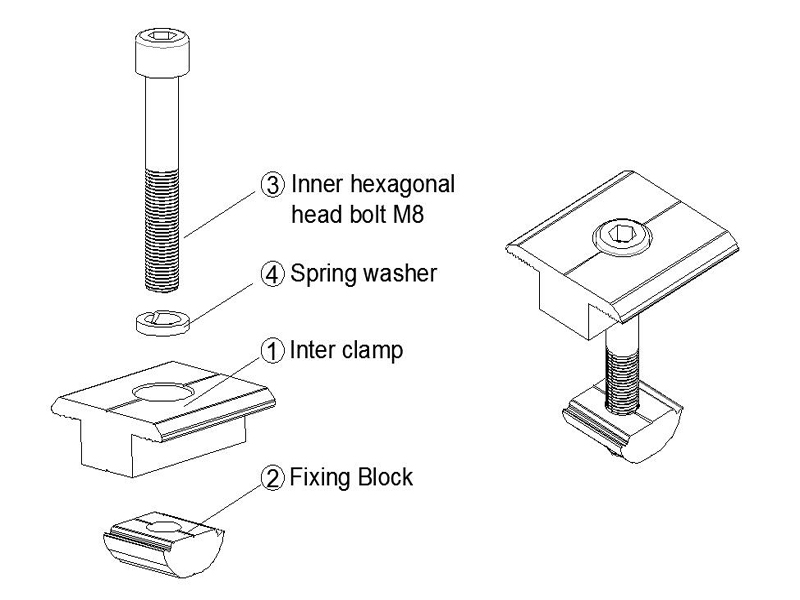

Component composition
|
Item No.
|
GT-IC2-F40
|
|
Item Name
|
2# Solar inter clamp
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
|
2# Solar inter clamp
|
40
|
1
|
Fixing Block
|
20
|
1
|
|
Spring washer M8
|
M8
|
1
|
|
Inner hexagonal head bolt M8x45
|
M8*45
|
1
|

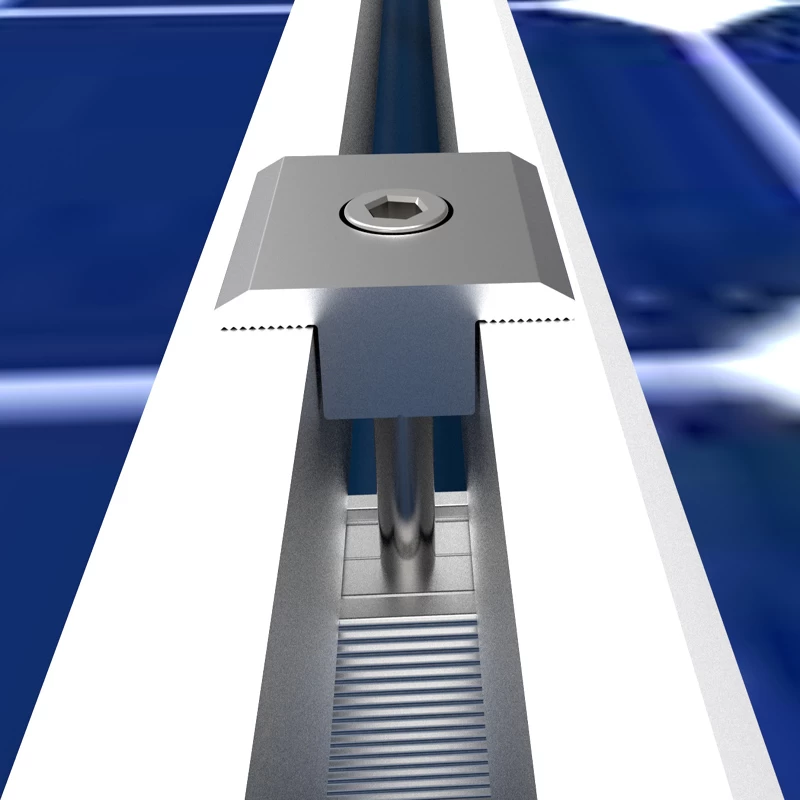

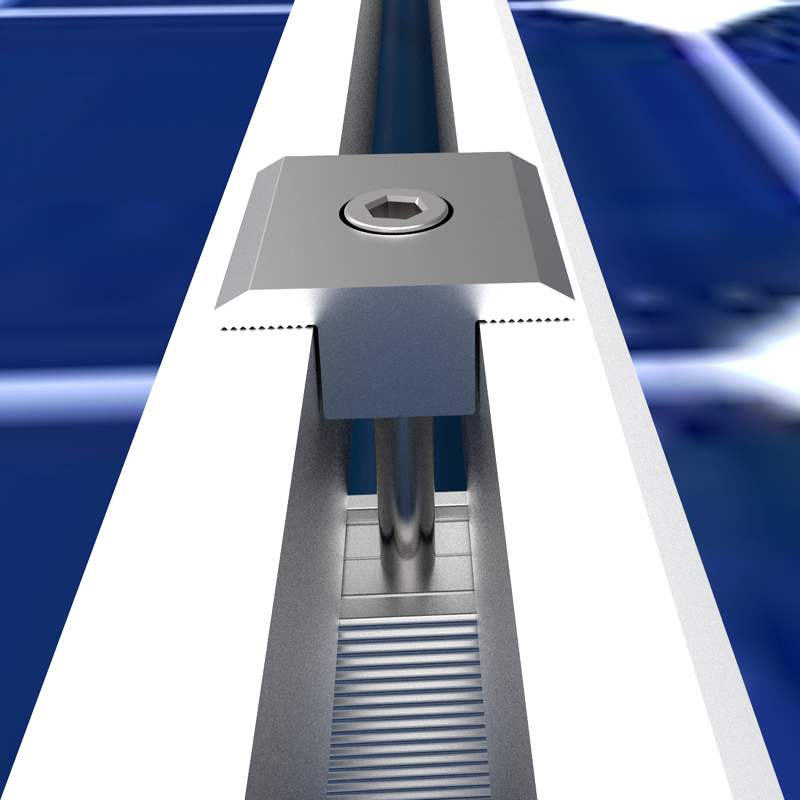

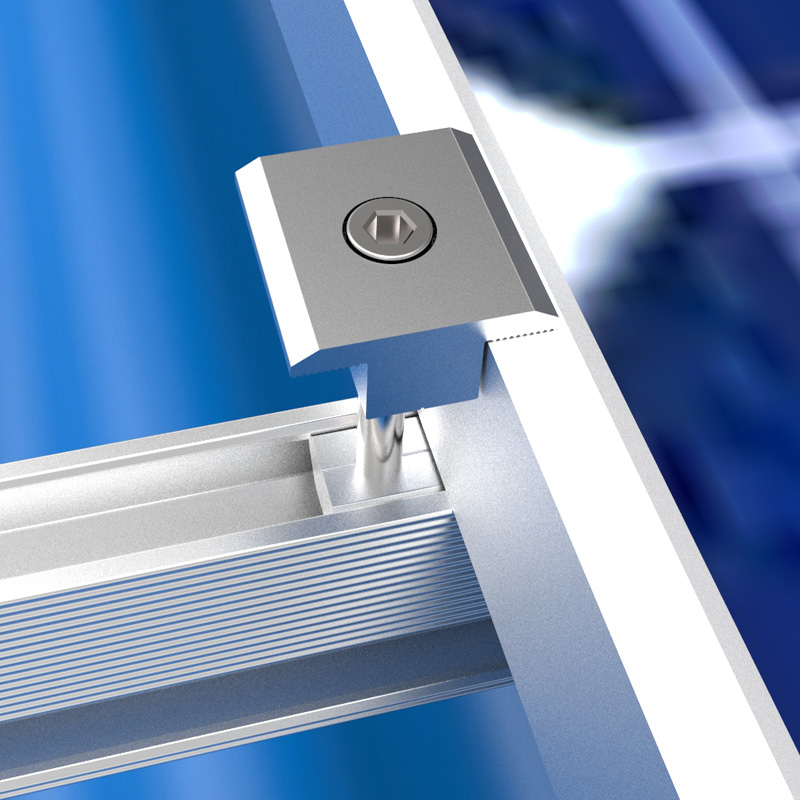

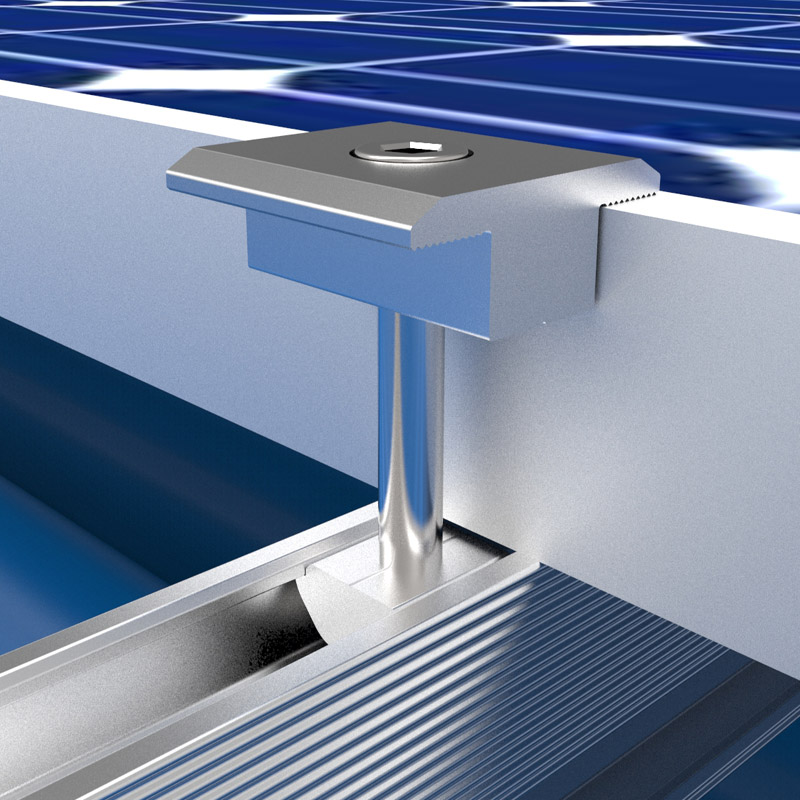

Detail drawing of component installation
