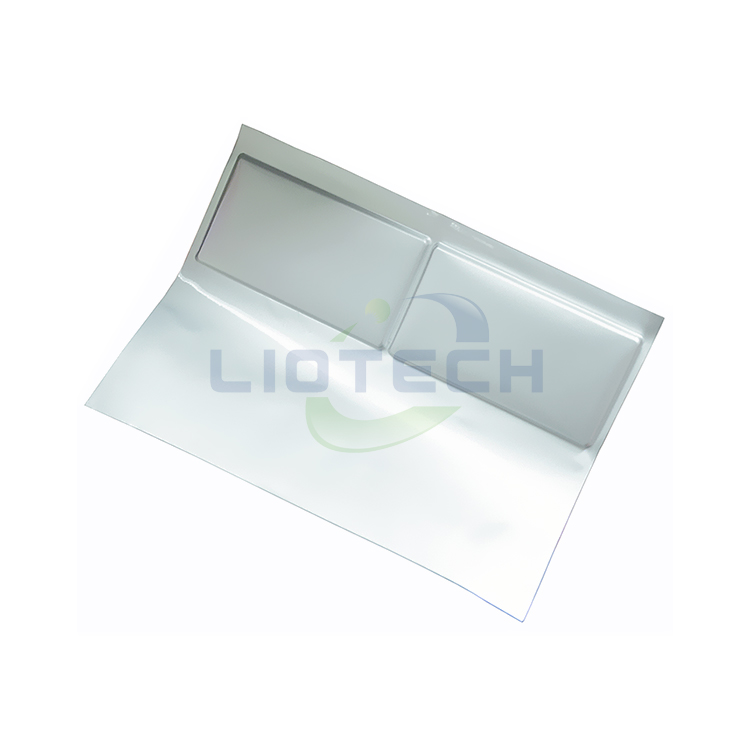

Aluminum Laminated Film Lithium Polymer Case/Pouch Case With Customized Size
Product Specification
|

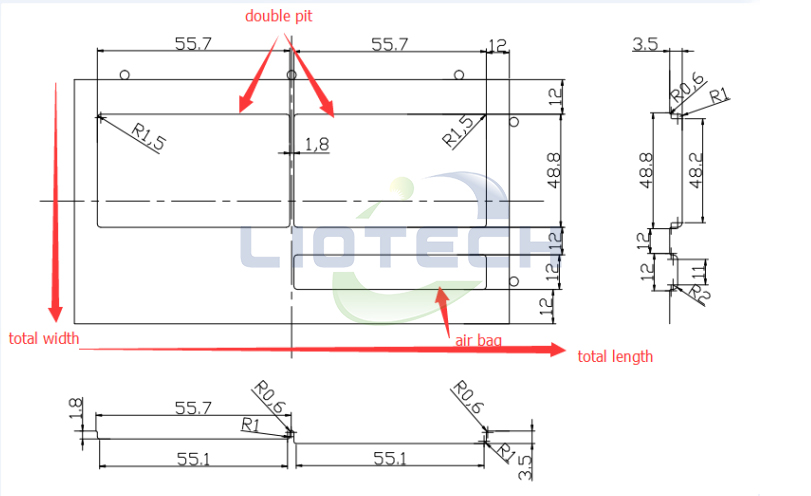

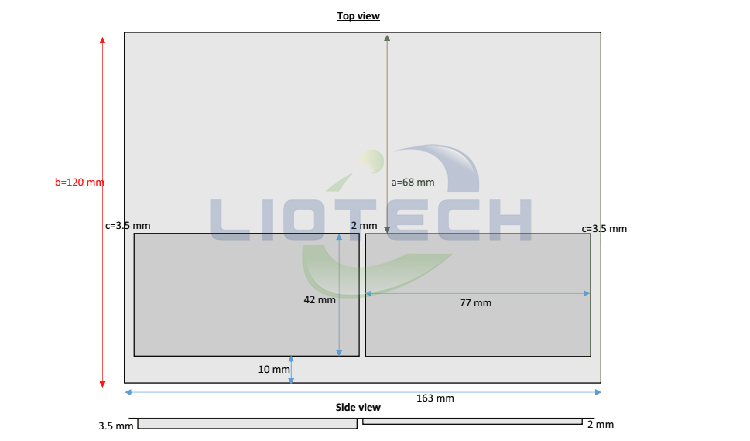

Pouch Cell Case Dimensions
|
The dimension can be customized according to your requirements
|
|
Aluminum laminated
film thickness
|
113μm
|
152μm
|
88μm
|
|

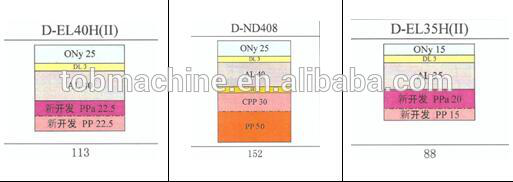

Materials constitute
|
|
|
Surface quality
|
Mat finish
|
|
Pinholes
|
Subject to the applicable aluminum foil standard
|
|
Impurity
|
1mm or less in diameter
|
|
Fish Eye
|
2mm or less in diameter (clear),1mm or less in diameter (colored)
|
|
Molding Depth
|
≥5.0mm
|
|
Electrical Insulating
|
Good
|
|
Hot Sealing Coniditon
|
180-190°C
|
|
Moisture Vapor /
O2 Transmission
Rate
|
200ppm / 5 years
|
|
Heat Seal Strength
|
More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by TOB heat sealing
|
|
Solvent Retention
|
Less than 5mg/m2
|
|
Appearance
|
Within the sample of the limit
|
|
Slip Factor
|
CPP/CPP less than 1.0
|
|
Application Notes
|
Click the picture below to see the finished polymer Li-Ion battery made by heated sealer
|

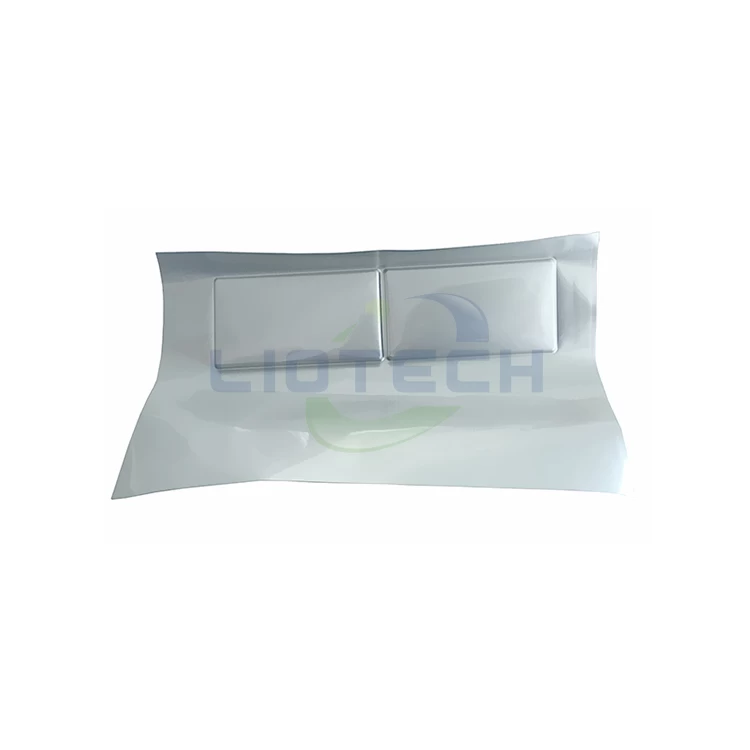

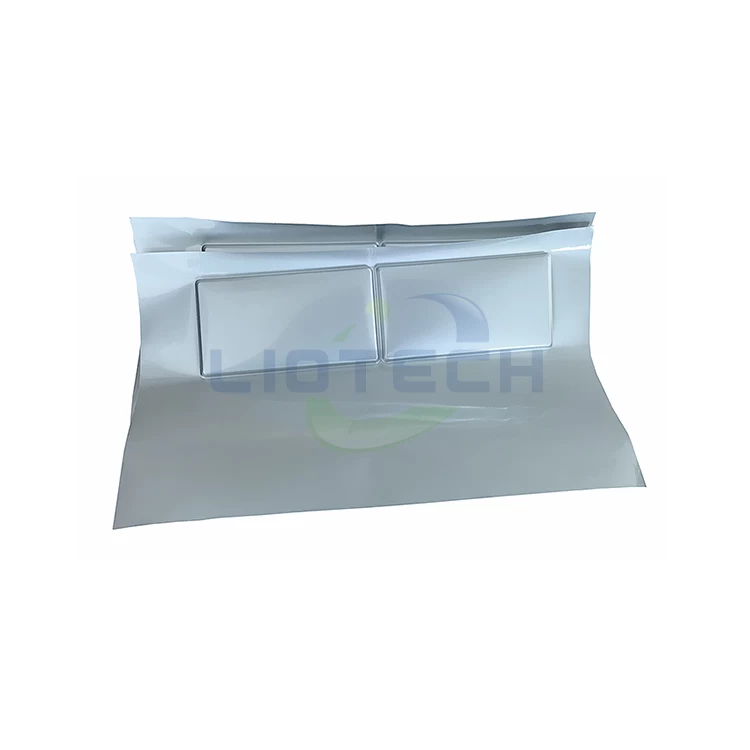

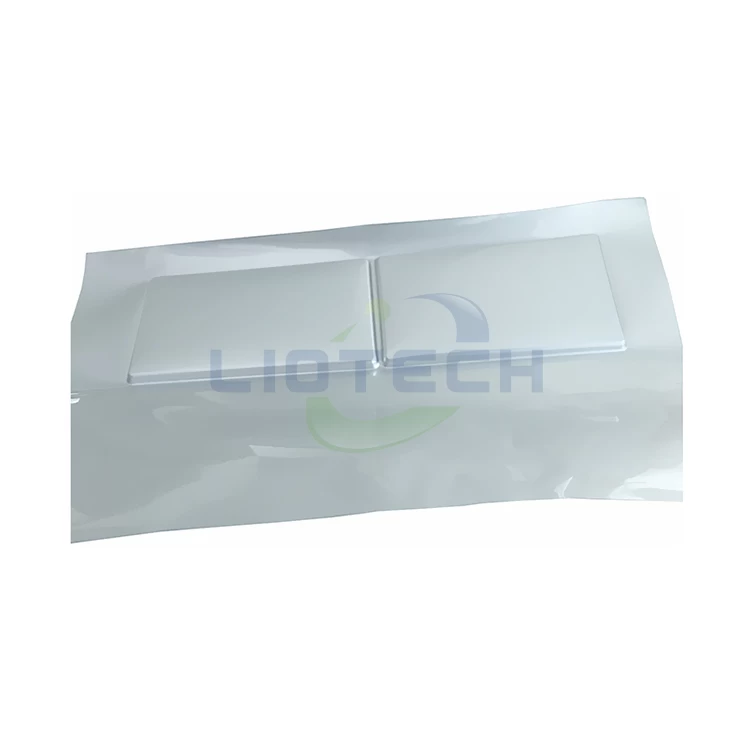

Product Images

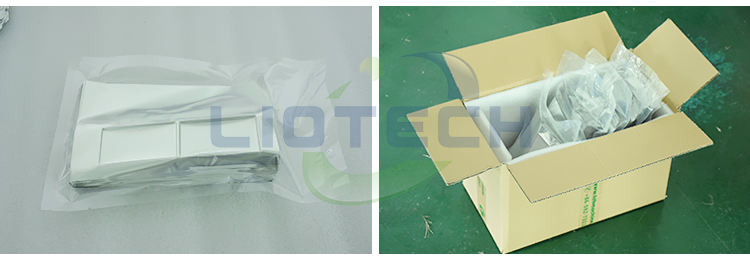

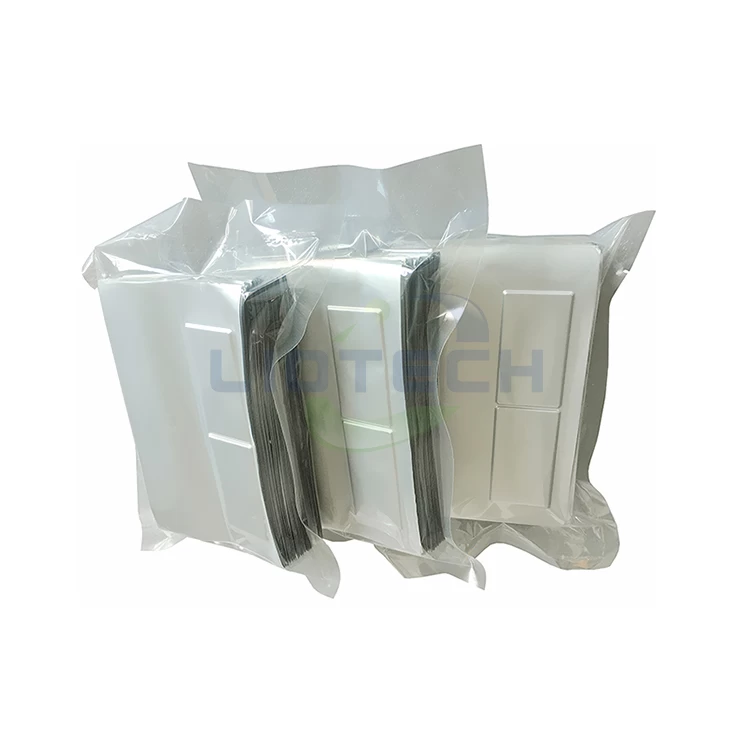

Product Packing
