Aluminized Magnesium Zinc Coated Solar Mounting System
Overview
The main components of the HE-ZM stand are made of aluminum-zinc-zinc-magnesium, which is a new type of high-corrosion-resistant coating. The main coating of the galvanized layer composition is zinc, which consists of zinc and 11% aluminum, 3% magnesium and microcrystalline silicon. With strong chlorine resistance (salt/sweat/seawater/sea breeze/soil) and alkali corrosion resistance, it can guarantee no red rust for 20-30 years; magnesium-plated aluminum-zinc plate has good processing performance and can be cold-bent , roll forming, with uniform wall thickness, high cross-section performance, adjustable size, so that the mechanics of steel can be fully utilized.
Parameter
|
Material
|
Yield Strength
|
Tensile Strength
|
Elongation
|
|
AL6005-T5
|
240
|
240
|
17
|
|
GENERAL STEEL PLATE
|
210
|
270
|
1.5
|
|
SCS300
|
195
|
300
|
20
|
|
SCS340
|
245
|
340
|
19
|
|
SCS400
|
295
|
400
|
18
|
|
SCS440
|
335
|
440
|
17
|
|
SCS490
|
365
|
490
|
16
|
-

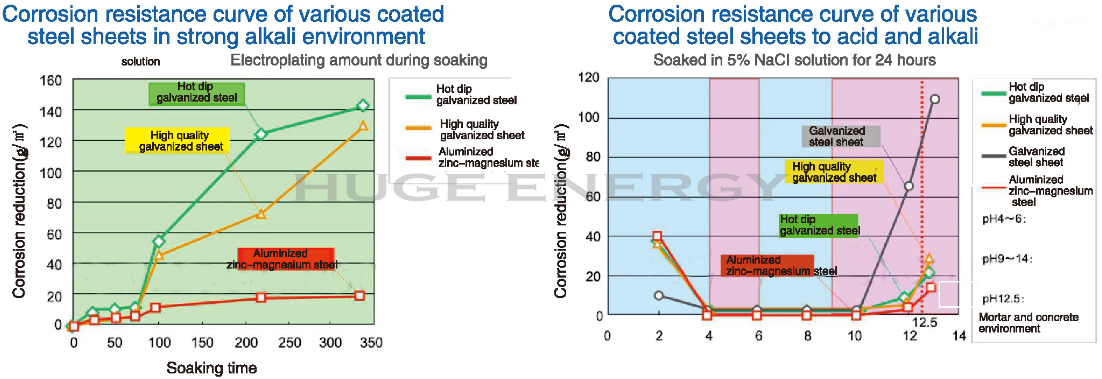

Anti-rust performance is 10-20 times that of galvanized sheet (up to stainless steel standard)
-
Reduce costs (generally 40% cheaper than stainless steel)
-

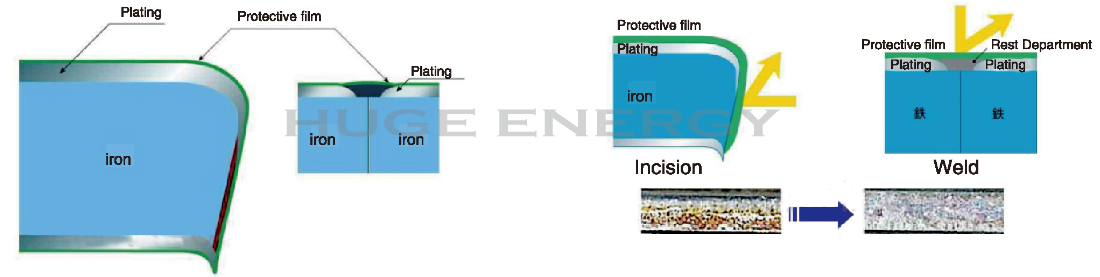

The incision has good corrosion resistance (the incision can be repaired automatically to prevent red rust, which is one of the biggest features)
-
Good processing performance (because of excellent wear and scratch resistance, it can adapt to various processing)
-
Environmental protection (through many international environmental tests)
-
Thickness, strength, and galvanizing capacity can be adjusted
-
long lasting

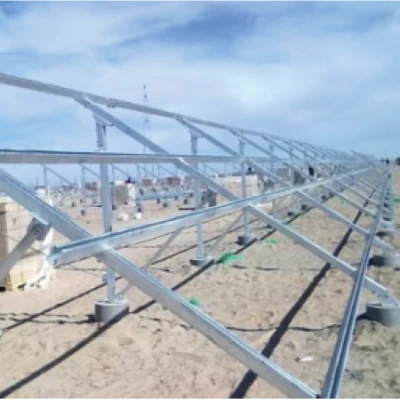

Project
Why Huge Energy
Reliability
Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.
Quality Control
With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.
Quality Assurance
Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.
We have a 15 year quality guarantee on Huge products.
After-sales Service
Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.
Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
