Why Choose Solar Tripod Mounting Solution?
SOEASY Solar Tripod Mounting Solution is one of mounting solutions for flat roof, which has two optional for solar
inclination. One is for single side inclination, the other is for double side facing, we call it EAST and West solution
which are normally used in low latitude that has small impact on the efficiency when installed the solar panel in

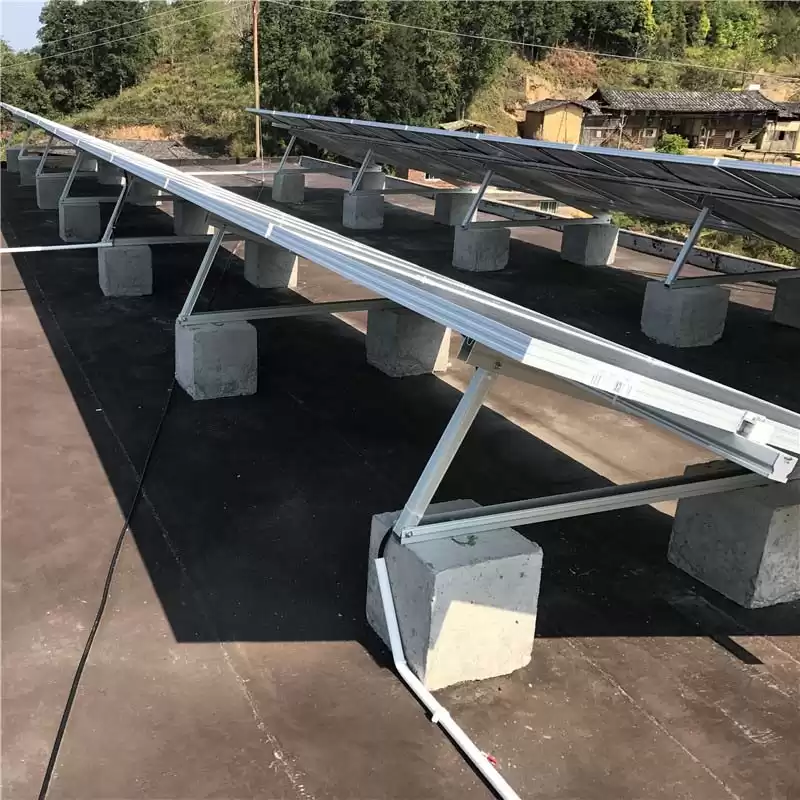

different facing. It can also adopt different foundations according to different requirements. Ballasted Block,
Expansion Bolts, Concrete Block are all applicable in this solution. Therefore, it has been widely used in flat

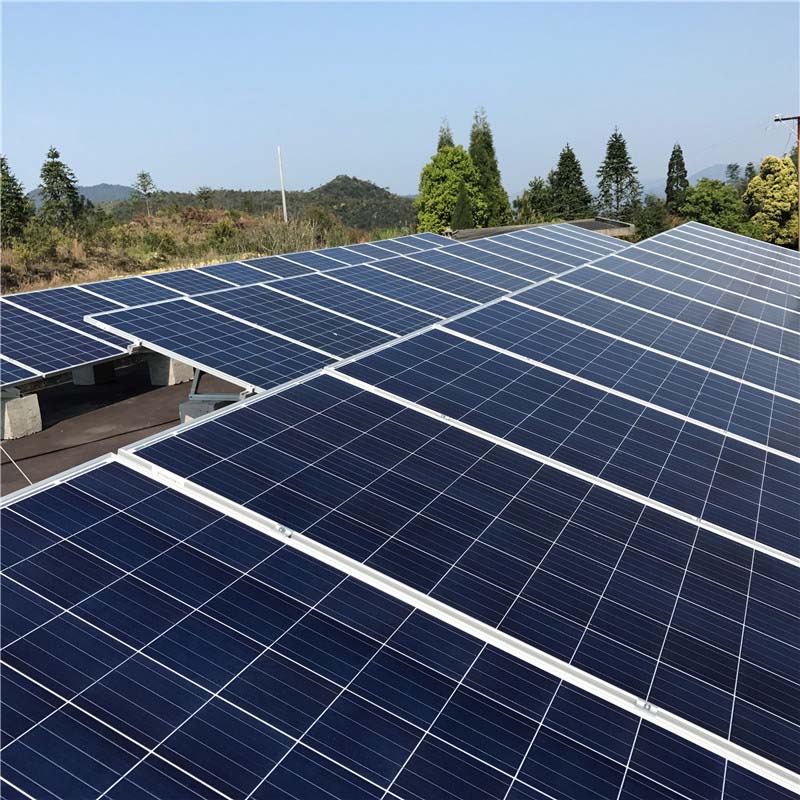

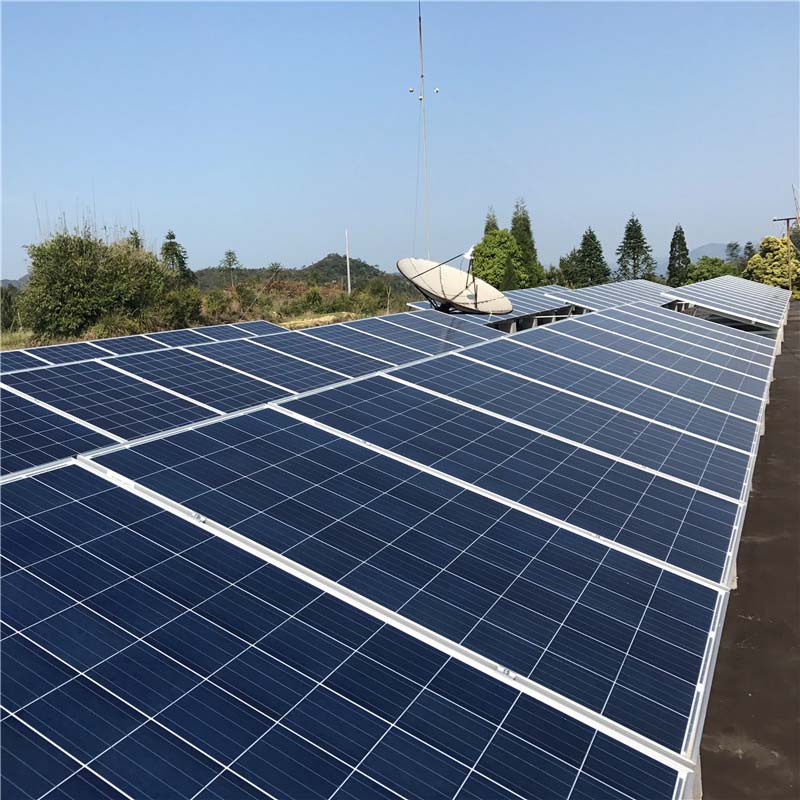

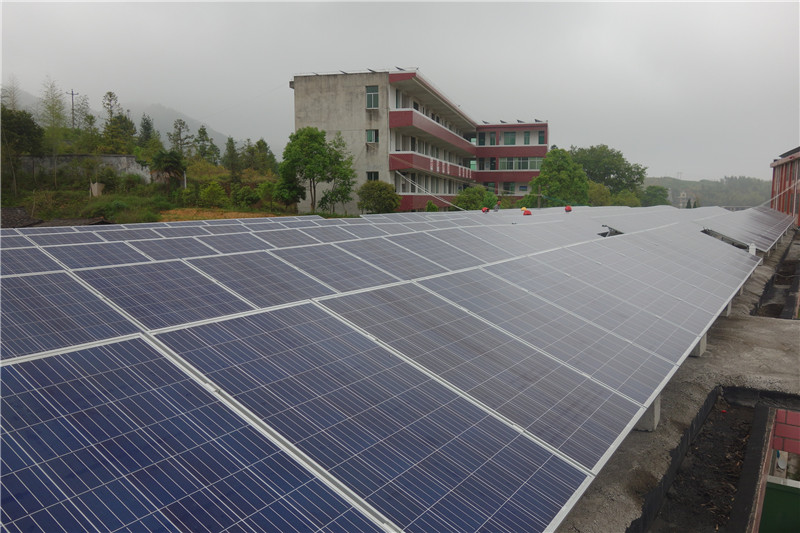

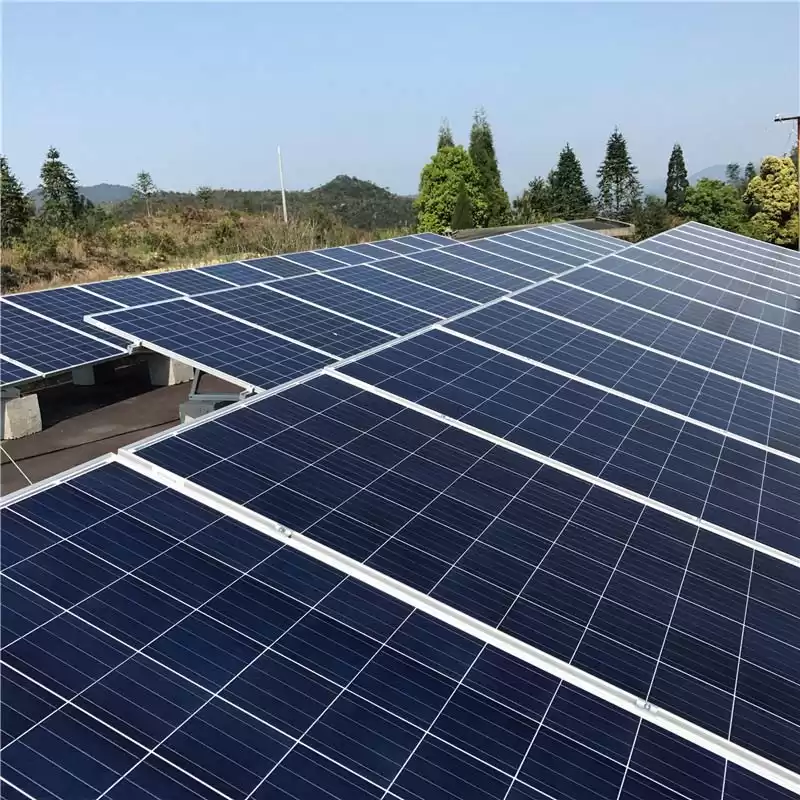

roof solar pv plant installation.
Benefits
1. Adjustable in tilt degree
2. Different foundation types
3. Simply structure and easily to install
4. Compatible to different types of solar module
Material
|
AL 6005-T5/SUS304
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 10μm Average
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral Seismic Factor: Kp=1; Seismic Coefficient: Z=1; Use Coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
|
AS/NZS 1170
|
DIN1055
|
ASCE/SEI 7-05
|
International Building Code: IBC 2009
|
Warranty
|
10 Years Quality Warranty, 25 Years Life Span Warranty
|
