Product Name:Aluminum Outdoor Warehouse Canopy Tents
The large storage tents are perfect for goods storage with available width 3m-60m and unlimited extended length in multiples of 5m a section. Depending on the life service span you take advantage of the canopy, you may take consideration of the quality. The Warehouse Canopy Tents is made of aluminum alloy frame with high strength which can be set up to the tough weather condition and capable to withstand wind up to 150km/ h. The sidewalls could be ABS solid wall, sandwich panel wall, glass wall and PVC fabric, four sided storage canopy make sure the goods is well protected.

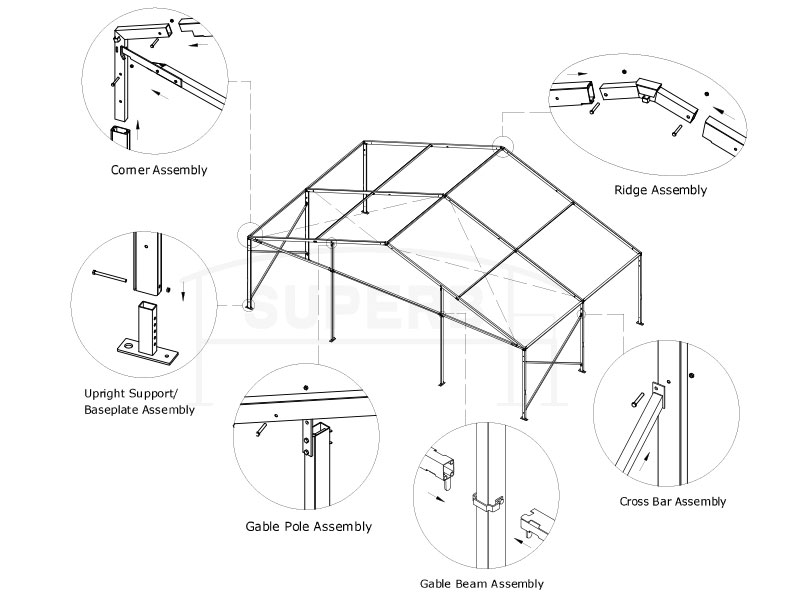

Warehouse Canopy Tents's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Warehouse Canopy Tents's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Warehouse Canopy Tents's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of Warehouse Canopy Tents For Sale
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
SS3/2.6-3
|
3
|
2.6
|
3.2
|
3
|
20°
|
3.5
|
80
|
|
SS4/2.6-3
|
4
|
2.6
|
3.4
|
3
|
20°
|
4.1
|
80
|
|
SS6/2.6-3
|
6
|
2.6
|
3.7
|
3
|
20°
|
3.5
|
80
|
|
SS8/2.6-3
|
8
|
2.6
|
4.1
|
3
|
20°
|
4.3
|
80
|
|
SS9/2.6-3
|
9
|
2.6
|
4.3
|
3
|
20°
|
4.8
|
80
|
|
SS10/2.6-3
|
10
|
2.6
|
4.5
|
3
|
20°
|
5.3
|
80
|
|
SS12/2.6-3
|
12
|
2.6
|
4.8
|
3
|
20°
|
3.2
|
80
|
|
Main
frame Profile
|
100x48x3mm （4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Steel Insert
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
