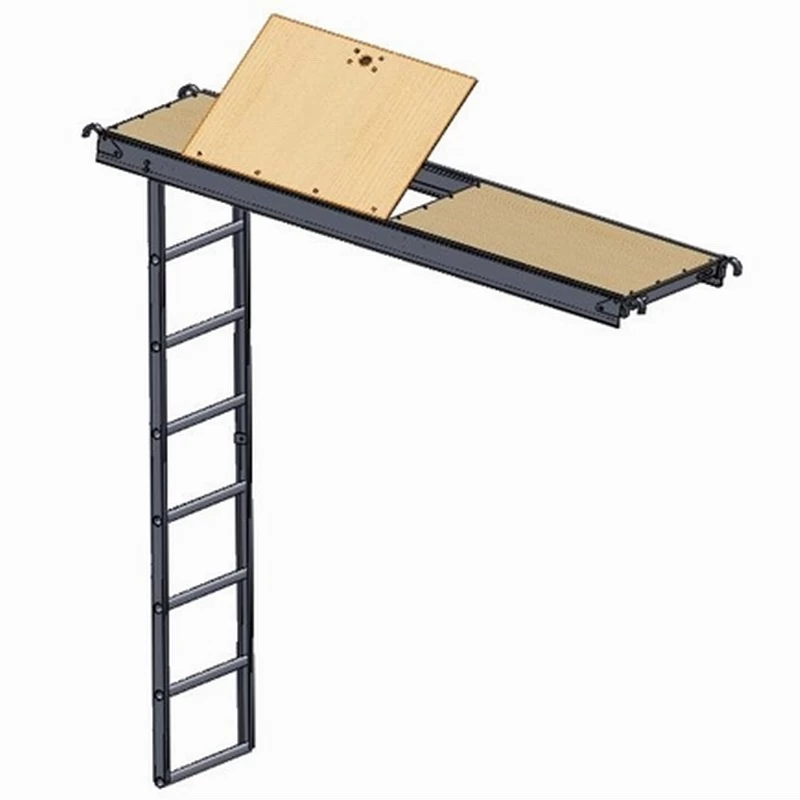

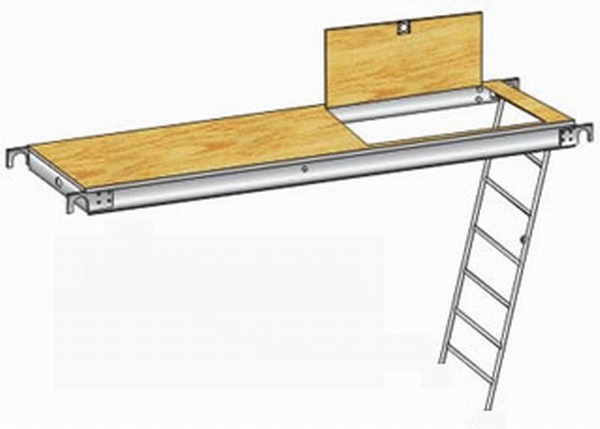

Aluminum Plywood Ladder Hatch Deck / Aluminum Plywood Ladder Trapdoor Plank

Aluminum Plywood Ladder Hatch Deck is made by 6061-T6 or 6082-T6 aluminum extrusion and fire-proof plywood panel, plank width 24" or 28", plank length from 7' to 10'.

Hatch Ladder: Aluminum 6061-T6, 7-step ladder

The plank complies with OHSA & ANSI A10.8 requirements. Safety load is 75lb/ft2.

  • ＭaterialAluminium
Facebook Twitter Pinterest LinkedIn 分享

Aluminum Plywood Ladder Trapdoor Plank

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
APW.LHD.24.10 610x3048mm 24" x 10' 27.40  60.42
APW.LHD.24.7 610x2134mm 24" x 7' 21.53  47.47
APW.LHD.28.10 711x3048mm 28" x 10' 30.15  66.48
APW.LHD.28.7 711x2134mm 28" x 7' 24.12  53.18

* Material: Alu. Alloy grade 6061-T6.

* Plank width:  610mm (24"), 711mm (28").

* Plywood thickness 12.7mm, WBP glue, fireproof.
