Single Cleanroom Doors Specification
|
900mm*2100mm 1000mm*2100mm
|
|
Double Cleanroom Doors Specification
|
1200mm*2100mm 1500mm*2100mm
|
|
Door Frame Material
|
High Strength Aluminum Alloy
|
|
Door Frame Thickness
|
50mm
|
|
Door Leaf Material
|
Color Steel Plate
|
|
Filler
|
Flame Retardant Paper Honeycomb, Aluminum Honeycomb
|
|
View Panel
|
Double Glazing，Frosted Glass
|
|
Rounded Corners，Right Angles
|
|
Border : White，Black
|
|
Surface Treatment
|
Electrostatic Alumina Profile
|
|
Lock
|

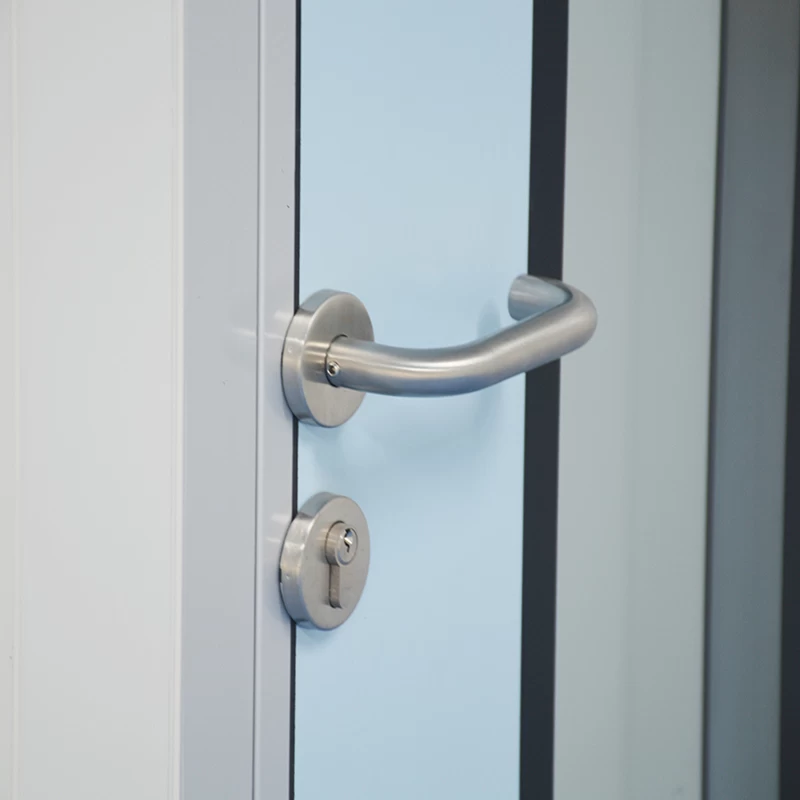

304 Stainless Steel Handle Lock, Elbow Pressure Ball Lock, Safety Pressure Bar Lock
|
|
Can Be Equipped With Electronic Interlock
|
|
Optional With Gai Ze, An Langjie Imported Brand Locks
|
|
Hinge
|
Aluminum Cleaning Special Hinge
|
|
Sealing Device
|
Door Sealing Strip
Door Bottom Automatically Pressing The Sealing Strip
|
Advantage：
1、High-strength Aluminum Cleanroom Door facer is made by galvanized steel，smooth, no hole, no dust, easy to clean.
2、The panel filled with flame-retardantpaper honeycomb，aluminum honeycombwith light weight and high strength frame.The core material compound USES zero formaldehyde environmental protection hot pressing glue, through the hot pressing equipment compound, the door door overall structure is strong, not easy to deform.

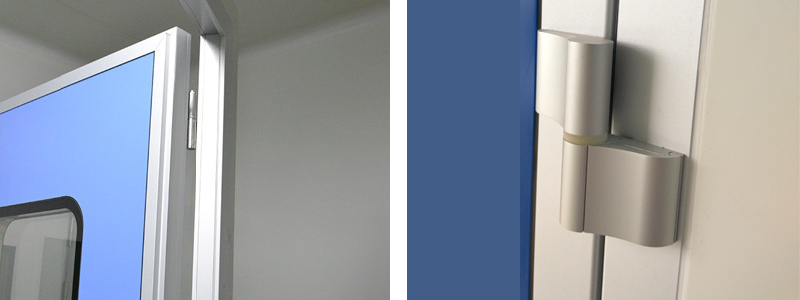

3、The hinge can be equipped with Wiskind's patented adjustable clean hinge, beautiful and elegant, no dust, easy to clean, durable, resistant to acid and alkali disinfection, andpatented door seam adjustable function.
Advanced production equipment and technology: with the domestic leading automatic digital aluminum profile cutting, CNC engraving opening aluminum profile processing equipment, the final guarantee.The aluminum profile cleanroom door has excellent dimensional accuracy, reduce the size deviation caused by the door body, door frame aluminum profile, spell Connect a series of problems such as uneven structure, uneven gap, pendulous door, easy deformation of door body structure.
Door leaf main material: use domestic well-known manufacturers, Shanghai Baosteel 0.5mm clean special color steel plate.High flatness of the plate, can be used in the pharmaceutical and medical industry and other frequent disinfection and sterilization industry for a long time, door frame and door frame for high-strength aluminum alloy, all the profiles have strengthened patent keel design, stable structure, not easy to deformation.
Door body color: the main material of the door is the special color steel plate for the clean room of Shanghai baosteel, and the HPL board is used for the HPL clean room door.

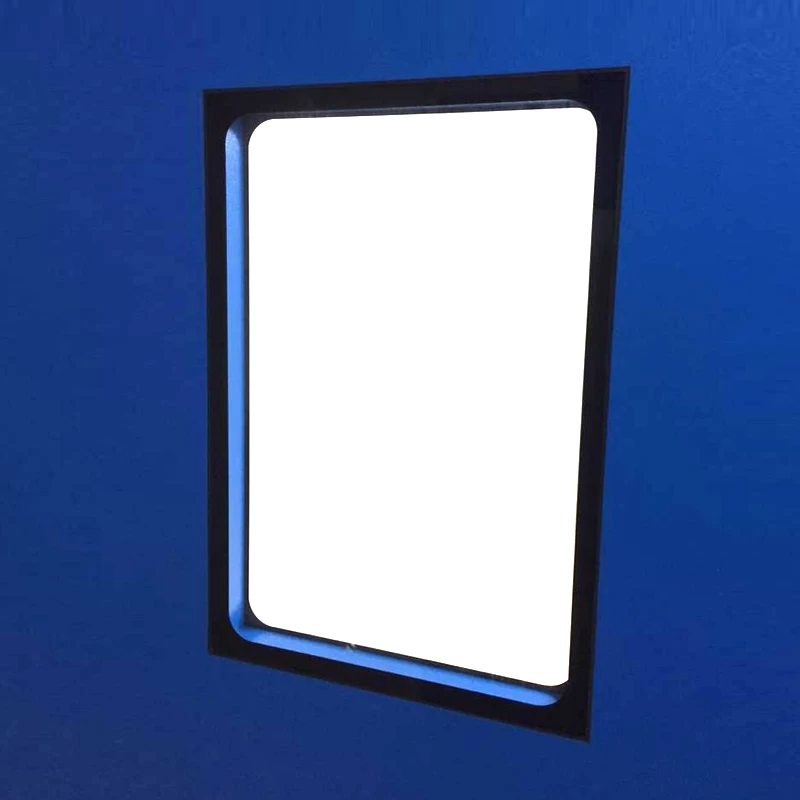

The black and white printing edges of doors and Windows are processed by high temperature glaze process above 700℃, and the color is smooth and even.The whole window and door are completely flush, seamless, beautiful and elegant, more convenient to clean and disinfect, produced in the dry and constant temperature control environment, the surrounding area is completely sealed, the built-in desiccant is added to strengthen the internal drying effect, and prevent condensation phenomenon in the window under the environment of large humidity and temperature difference.
Door seal around: (aviation, shipbuilding, precision electric cabinet industry) Germany equipment, German technology, Germany polyurethane foam at the scene of the glue production, stable structure and not easy to fall, life is four to five times more common adhesive rubber, disinfection, such as uv, alcohol can under the environment of frequent disinfection is not easy to aging, and harmless to human body, excellent air tightness, can effectively prevent the cleanroom indoor pressure loss, ensure clean indoor air tightness.
