Aluminum Ring Lock Scaffolding Diagonal Brace

Advantage of Aluminium Ring Lock Scaffolding:

Quick erection and dismantling: Ringlock scaffold is all pre-measured and just a hammer is required when erection.

Safety: The reliable wedge connections prevent ledgers and diagonal braces from any kind of loosening. The rigid, right fit of all connections with concentric derivation of loads guarantees safety even at great heights.



Main components of Aluminium Ring Lock Scaffolding: Standard, Ledger, Diagonal Brace, Level Brace, Transom, Hop Up Bracket, Full Aluminum Deck (Plank), Aluminum Plywood Deck, Stair, Truss Transom, Girder Beam, and so on.

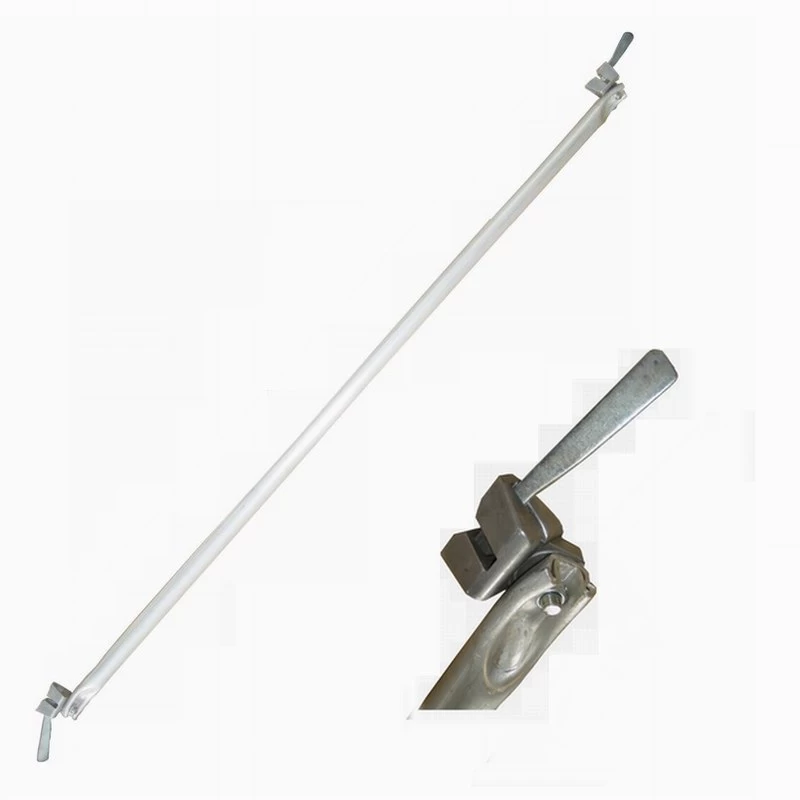

Aluminum Ring Lock Scaffolding Diagonal Brace / Bay Brace

Product Details:

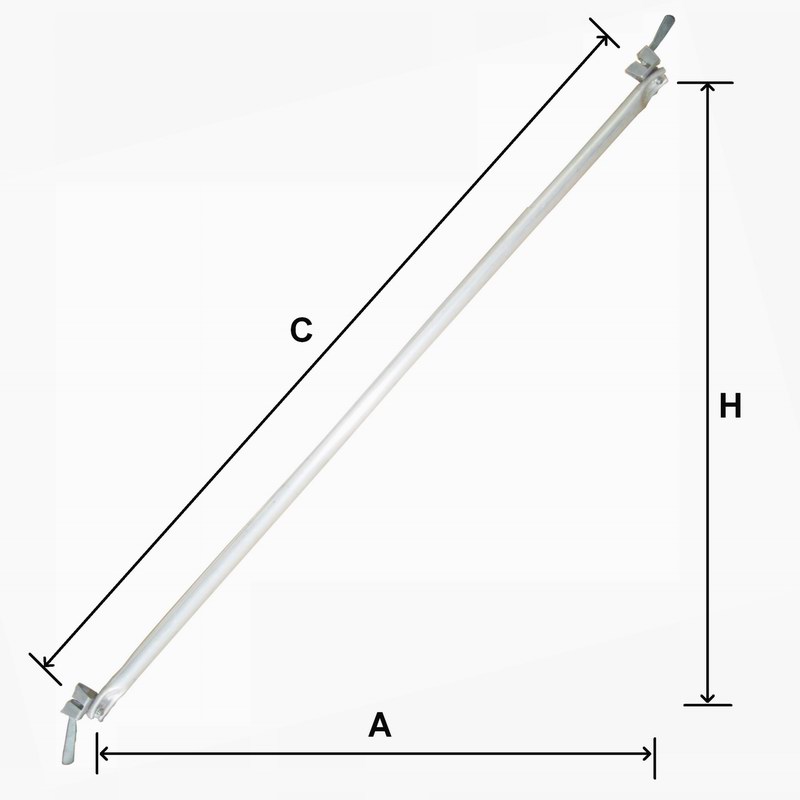

Code Description Material Size Weight (kg) Weight (lbs)
ARS.DB.305200 3.05x2.0M Diagonal Brace Ø48.4x4.2mm; Alu. 6061-T6 A: 3048mm; H: 2000mm; C: 3518mm 6.62  14.60
ARS.DB.244200 2.44x2.0M Diagonal Brace A: 2438mm; H: 2000mm; C: 3035mm 5.86  12.92
ARS.DB.213200 2.13x2.0M Diagonal Brace A: 2134mm; H: 2000mm; C: 2814mm 5.51  12.15
ARS.DB.183200 1.83x2.0M Diagonal Brace A: 1829mm; H: 2000mm; C: 2608mm 5.19  11.44
ARS.DB.152200 1.52x2.0M Diagonal Brace A: 1524mm; H: 2000mm; C: 2424mm 4.89  10.78
ARS.DB.127200 1.27x2.0M Diagonal Brace A: 1268mm; H: 2000mm; C: 2290mm 4.68  10.32
ARS.DB.100200 1.00x2.0M Diagonal Brace A: 1000mm; H: 2000mm; C: 2171mm 4.49  9.90
ARS.DB.076200 0.76x2.0M Diagonal Brace A: 762mm;   H: 2000mm; C: 2090mm 4.37  9.64
ARS.DB.056200 0.56x2.0M Diagonal Brace A: 560mm;   H: 2000mm; C: 2041mm 4.29  9.46
ARS.DB.307200 3.07x2.0M Diagonal Brace Ø48.4x4.2mm; Alu. 6061-T6 A: 3072mm; H: 2000mm; C: 3538mm 6.65  14.66
ARS.DB.257200 2.57x2.0M Diagonal Brace A: 2572mm; H: 2000mm; C: 3138mm 6.02  13.27
ARS.DB.207200 2.07x2.0M Diagonal Brace A: 2072mm; H: 2000mm; C: 2771mm 5.44  12.00
ARS.DB.157200 1.57x2.0M Diagonal Brace A: 1572mm; H: 2000mm; C: 2452mm 4.94  10.89
ARS.DB.109200 1.09x2.0M Diagonal Brace A: 1088mm; H: 2000mm; C: 2207mm 4.55  10.03
ARS.DB.073200 0.73x2.0M Diagonal Brace A: 732mm;   H: 2000mm; C: 2082mm 4.35  9.59




Features:


Aluminum Tube Dimension: O.D 48.4x4.2mm.


Alu Alloy Grade: 6061-T6, 6082-T6

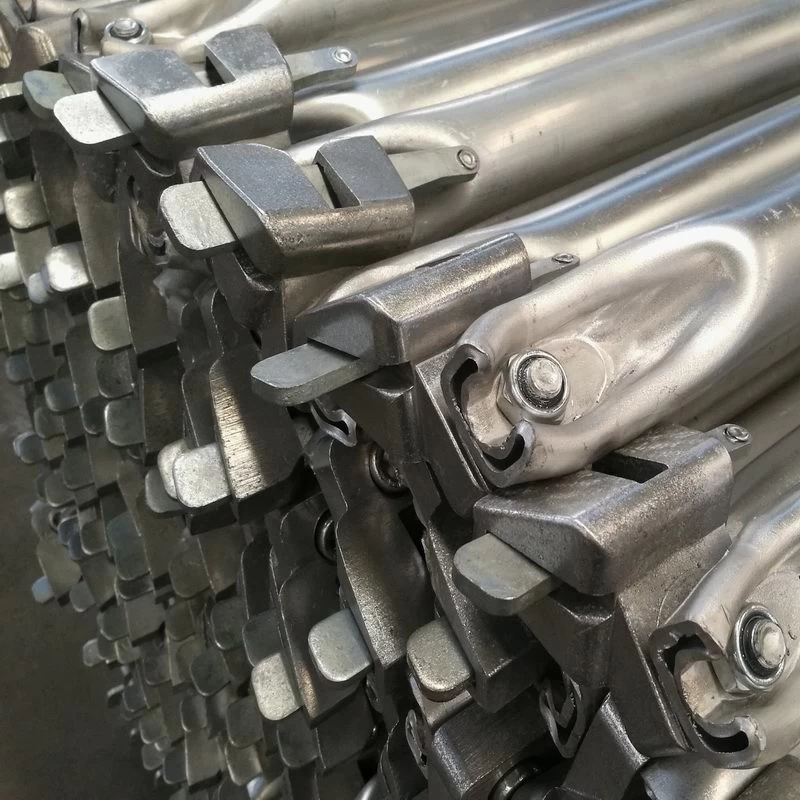

Brace Connector: Casting aluminum


Common size for North America and Australia: 10', 8', 7', 6', 5', 4'2", 2'6".


Common size for Europe and South America: 3072mm, 2572mm, 2072mm, 1572mm, 732mm.


Surface Finishing: Self-finishing, Powder Coated
