Aluminum Sample Pans/lids 901670.901/901671.901 for TA Instruments Tzero Q20/Q2000/Q25/Q2500 ( Sample Cups)


901670.901/901671.901 Solid test for Tzero Q20/Q2000/Q25/Q2500. 901670.901/901671.901 Aluminum Sample Pans for TA Instruments T Zero low mass Q20/Q200 .Manufacturer for TA thermogravimetric analyzer  crucibles and DSC sample pans .TA Instruments good alternative sample cups .




  • Part NO901670.901/901671.901
  • MaterialAluminum
  • Suitable for TA InstrumentsQ20/Q2000/Q25/Q2500

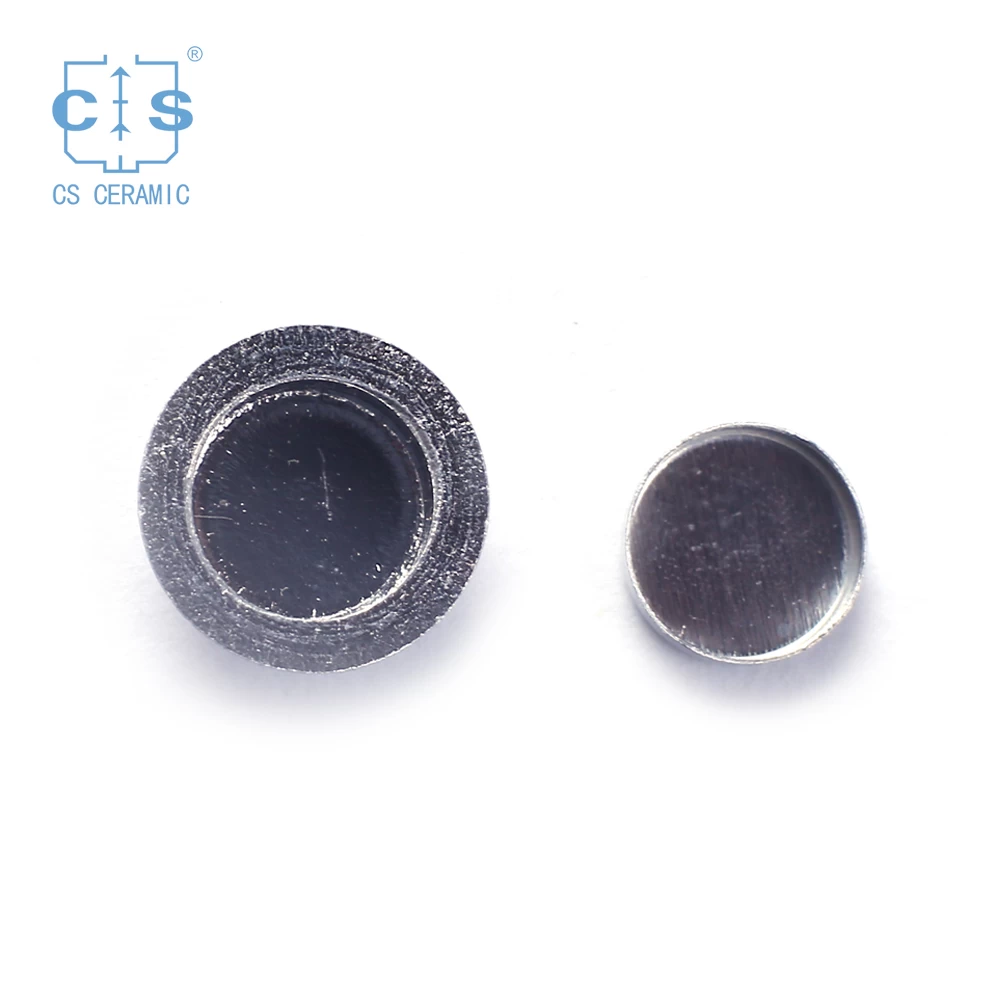

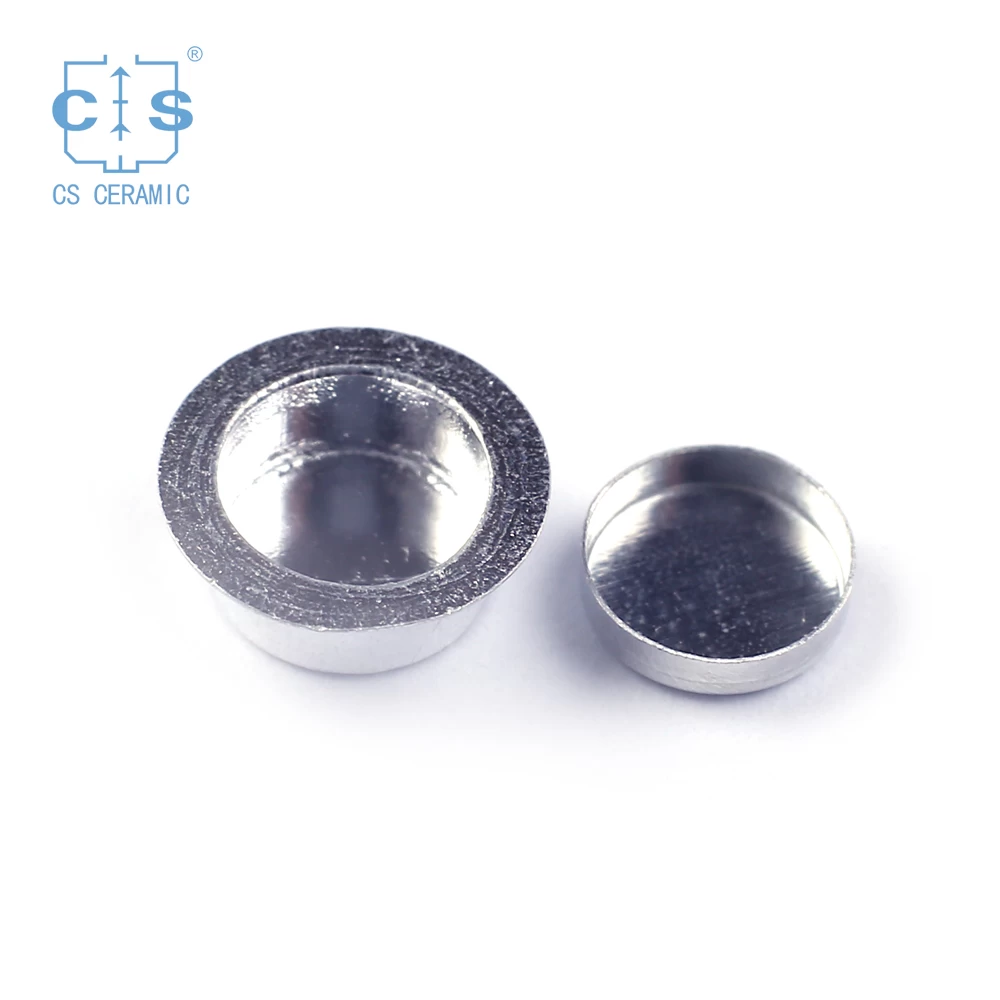

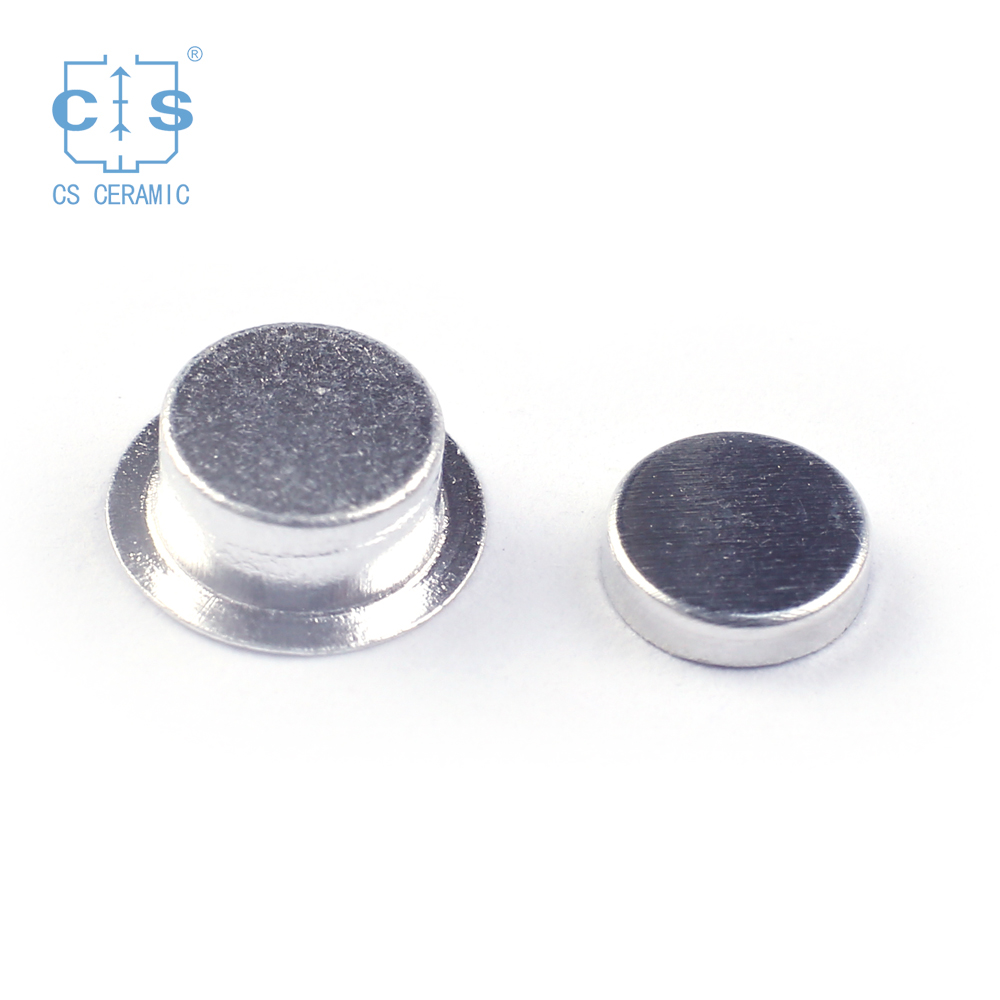

Product Item: Tzero Aluminum Sample Pans/lids 901670.901/901671.901 for TA Instruments Q20/Q2000/Q25/Q2500 ( Sample Cups)


Item info :

Type Sample pan /Crucible
Suitable for TA Instruments  T Zero low mass Q20/Q2000/Q25/Q2500
Part NO TA 901670.901/901671.901
Material Aluminum
Test Material  Sample test
Temperature Range: -180°C to 600°C
QTY/PKG 100PCS/BOX ;200PCS/BOX (Both available)
Brand CS CERAMIC
Original MADE IN CHINA


Usage:


Aluminum pans designed for maximum performance in crimp or hermetic sealing of various sample sizes. The pans have extremely flat bottoms designed for maximum contact with the Tzero cell sensors. They can be used in the crimp seal mode with the Tzero Lids (P/N: 901671.901), where the internal volume is 20 µL, or in the hermetic seal mode with the Tzero Hermetic Lids (P/N: 901684.901),

where the internal volume is 40 µL. This sample encapsulation process requires the Tzero Sample Press Kit (P/N: 901600.901).



Aluminum sample pan and cover: applicable for non-volatile solid sample, like polymer and medicine. It’s widely used for melting, crystallization and vitrifaction test of polymer and thermoplasticity material; Sample vessel is bayonet type, not sealed.


Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.


Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.


Shipping:    We do international shipping for clients.




Special offer:  Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
