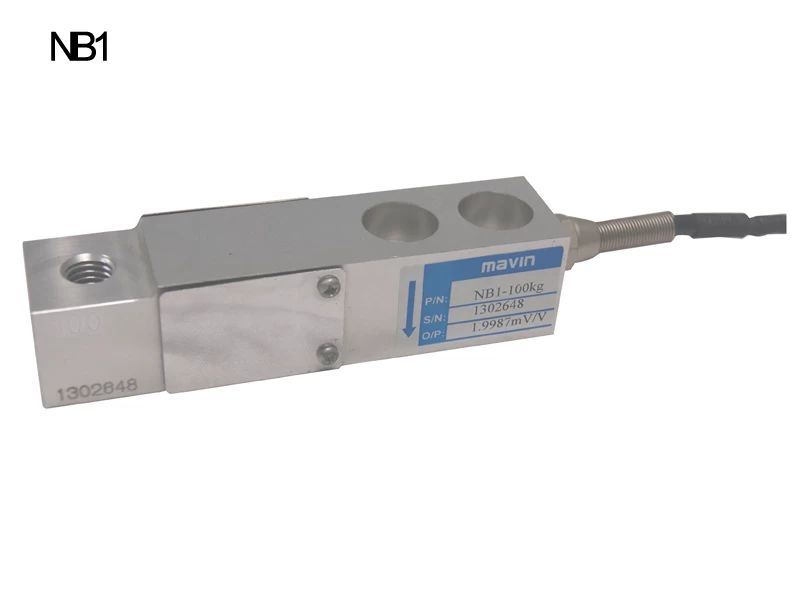

Aluminum Shear beam load cell for platform scale NB1 (100-500KG)
NB1 aluminum shear beam load cell is made with anodised aluminum alloy material, environmentally sealed by potting. The weighing scale sensor is suitable for various type of hopper scales, platform scales.
Key Features：
Aluminum alloy construction
Capacity: 100kg,200kg,300kg,500kg
Available
accessories(option): load foot, cup and ball or tee and ball.
Usage & Applications：
Hopper
scales
Platform scales
Industrial weighing system

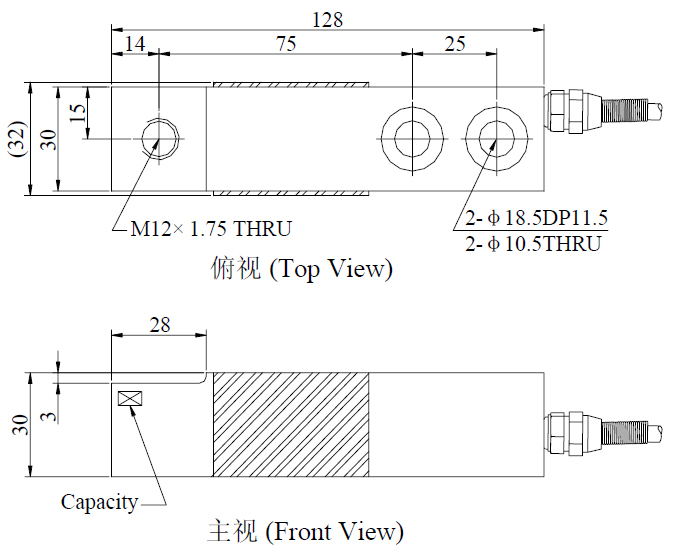

Dimension：
NB1 Specification：
|
Rated
Capacities
|
100，200，300，500 (kg)
|
|
Rated
Output
|
２.0
mV/V±0.15%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.03
%R.O.
|
|
Hysteresis
|
0.03
%R.O.
|
|
Repeatability
|
0.03
%R.O.
|
|
30mins
Creep
|
0.03
%R.O.
|
|
30mins
Return
|
0.03
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
410±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
Operating Temperature Range
|
-20~60 ℃
|
|
Construction
|
Aluminum
Alloy
|
|
Protection
Class
|
IP66 / IP67
|
|
Cable
|
φ5×2m
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
