Aluminum Single i ladder Truss

Alumium Single i truss ladder is lightweight and mini for moving lighting.  Its CPL 80kg and UDL 40kg/m at 4m span. It is good choice for trade show exhibition booth display, disco, studio, av, projector, screen, wedding, door, entrance, tv, party, performance, ect.

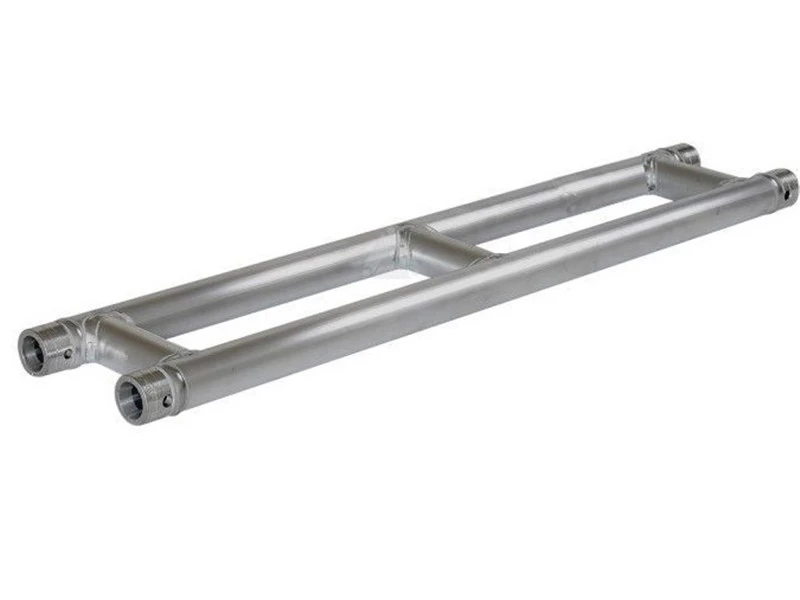

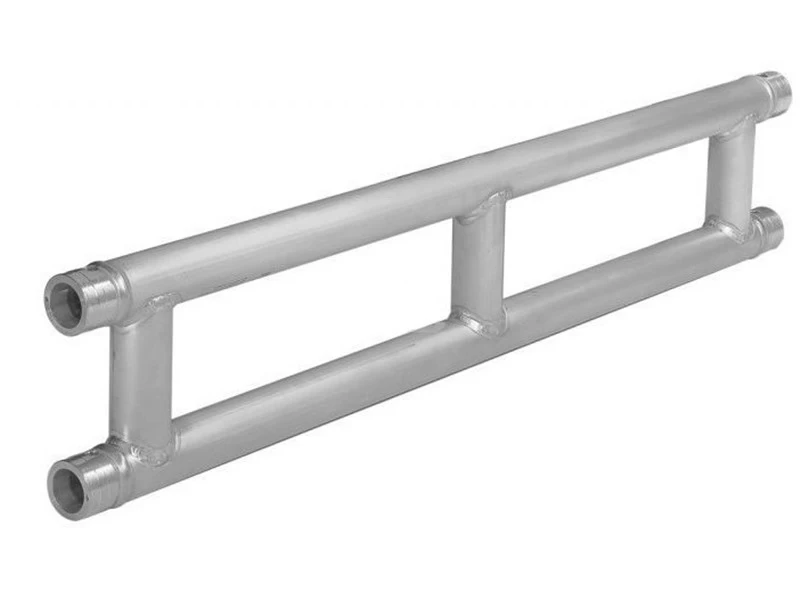

Aluminum Single i ladder Truss 50 x 290mm:

This i Ladder Truss is made from aluminum alloy and it is most Lightweight as i beam .  With conical couple system it is very easy to install. It can be assembled in vertical or horizontal position . It can be straight, curved and circular and usually adapted for truss to truss connection.

Features:

  1. Quick and easy to install
  2. Modular and versatile for roof reinforcement and hire
  3. Powder coating or anodizing to be any color on request
  4. Free design by us
  5. Lightweight for ladder framing between trusses or ending truss ladder construction

Specification:

Material Aluminum Alloy 6061-T 6 / 6082-T 6
Types Ladder
Main tubes 50 x 3 mm
Braces 50 x 2 mm
Connection type Conical couple system

Length and Weight:

Length Weight
50 cm 1.6 kg
100 cm 3.1  kg
150 cm 4.85 kg
200 cm 5.6 kg
250 cm  6.5 kg
300 cm  9.3 kg

Other length can be custom on request.

Application:

This Truss Ladder is without any diagonal bracing and with rigid joints both on the top and bottom main tubes. It is designed to create matrix frames for some special circumstances, such as the Studio installation, Shopping mall ceiling decoration, connecting trusses between roof systems,ect.
