Features
√Component is pre-assembled and installation is easy, which save your on-site installation time and costs
√All sides of components are anodized, which provides you with better anti-corrosion and good-looking
√Own mold,melting and casting, aluminum extrusion, surface treatment and deep processing factories,ensuring prompt delivery

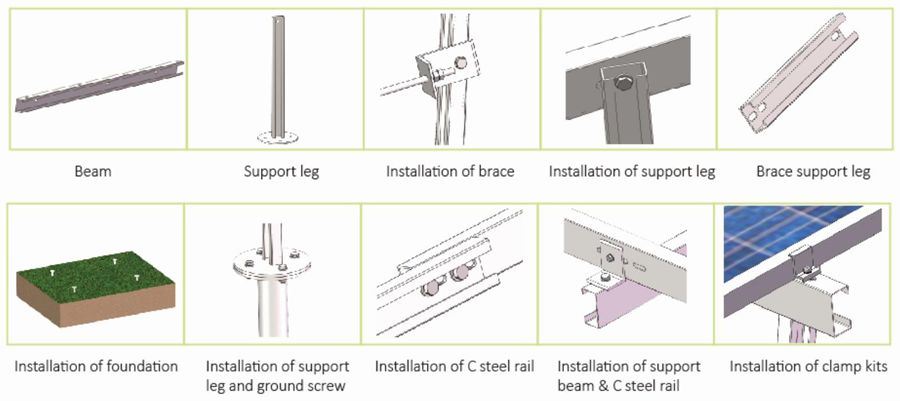

Components
Rail Rail Splice Stringer Support Tube
Connecting Jacket Middle Clamp End Clamp Rail Clamp Base

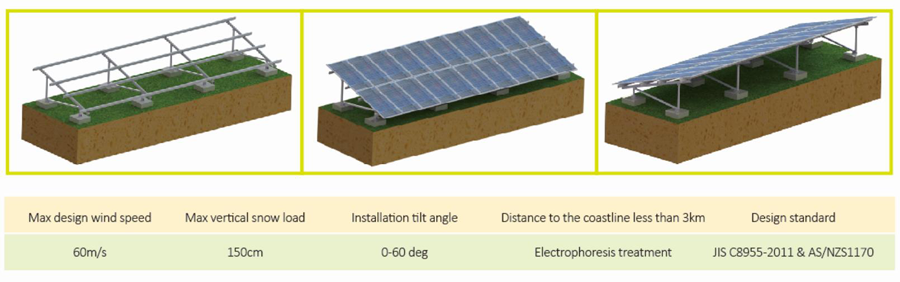

Technical Specifications
|
Installation site
|
Open field
|
|
Max. wind speed
|
≤60m/s
|
|
Snow load
|
≤1.4kn/㎡
|
|
Tilt angle
|
≤45 degrees
|
|
Module
|
Frame or frame-less
|
|
Design standards
|
AS/NZS 1170, ASCE 7-10, JIS2017
|
|
Material
|
AL6005-T5, SUS304
|
|
Finish
|
Anodized,hot-dip galvanized
|
|

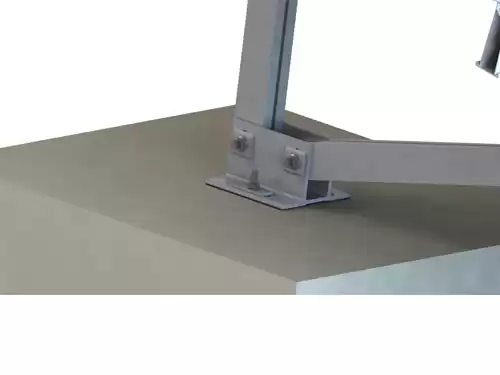

Foundation
|
Concrete
|
|
Warranty
|
12-year warranty,25-year service life
|

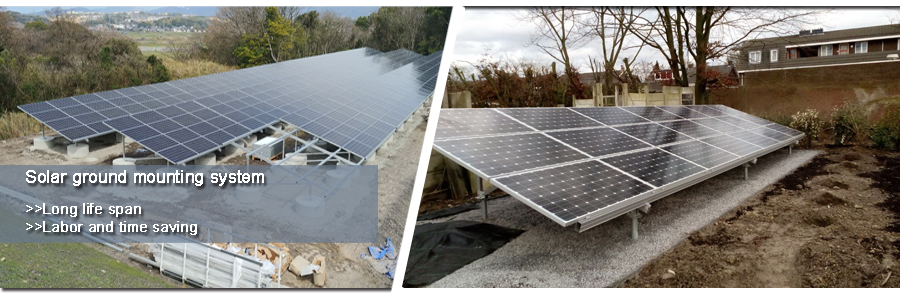

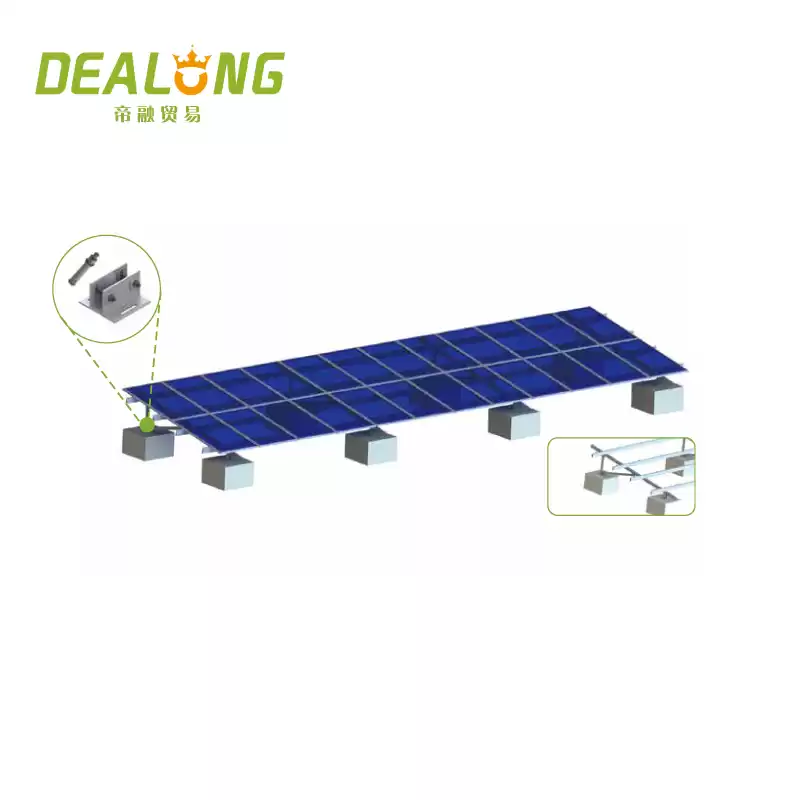

Solar mounting system adopts 6005-T5 anodized aluminum and SUS304 stainless steel, which offers high strength corrosion resistance. Aluminum solar mounting system is featured with light weight, strong and powerful bracket and recyclable material.The pre-assembly support rack saves your time and cost. The concrete solar mounting system structure is high quality with light weight and strong bracket and recyclable material.

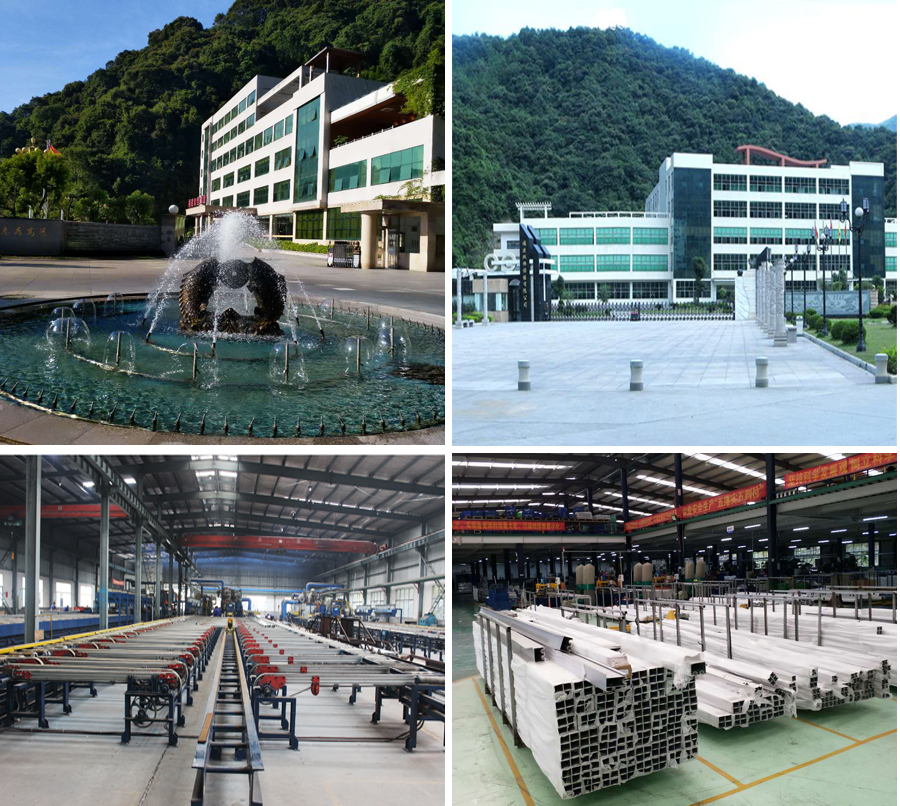

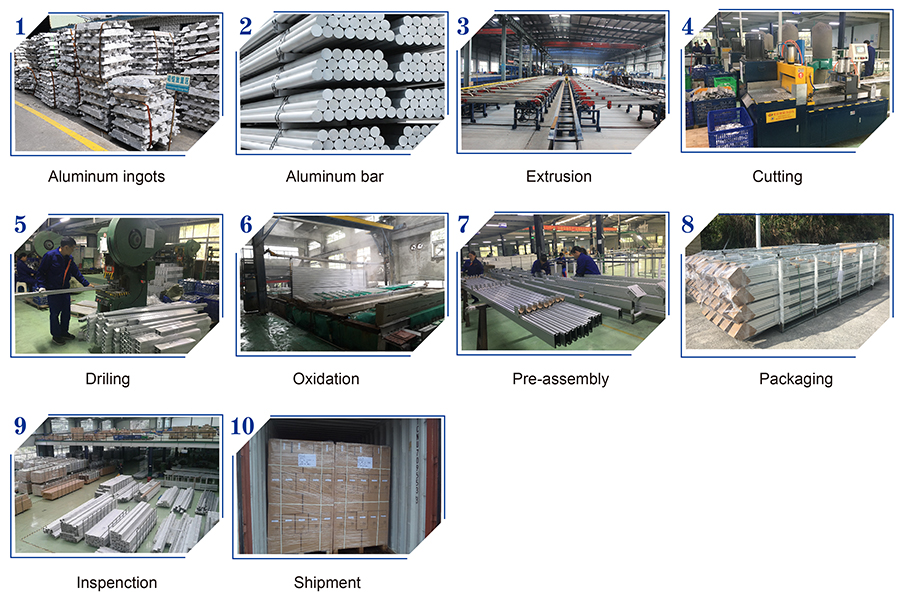

We have mold making centers and develop all molds by ourselves. The whole processing procedures, including, extrusion, anodizing,powder coating, inspection, and packing should pass our strict quality control management system and be completed in our own factory.
Since its establishment in 1997, Fujian Yongchun Shuangheng Aluminum Co., Ltd. adheres to taking “Honesty”as code of practice and has established stable cooperative relationships with clients from 100+ countries or regions, such as Dubai, Japan, South Korea, Middle East, South Africa. Shuangheng has become one of the biggest exporters of solar PV mounting system in China. We can supply Auto CAD drawing, package designing and aluminum profile deep processing services (such as: punching, drilling, bending, etc.). Our company has many sets of advanced equipment to strictly control product quality. We have attained ISO9001 and ISO14001 certifications.
Q1.Are you a trading company or manufacturer?
We a manufacturing and trading combo, produce and export the Aluminum profile ,Solar Mounting Systems, Solar ground screw for many years. We can supply kinds of mounting systems for a variety of projects.
Q2.Can I get the sample before the order?
Sure, we can provide a free sample for quality inspection. According to our company policy, you should assume the express freight, and we will return the freight if you place the order.
Q3.Is customized available?
Sure, it will depend on the detailed drawings you provide.
Q4.What about the delivery time?
It depends on your order quantity and requirement. Usually 7-15 working days.
Q5.Can we visit your factory to inspect the goods for the order?
Sure, Warmly welcome to visit our factory to inspect the quality, we sincerely hope to establish an honest business relationship.
