Made of corrosion-resistant aluminum and SUS304.
Available:
1.With or without conductive plate.
2.Assembled and unassembled.
3.With or without installation hardware.
4.Meet standard of AS/NZS 1170.2 , JIS C 8955:2011
5.Custom designs available upon request.
|

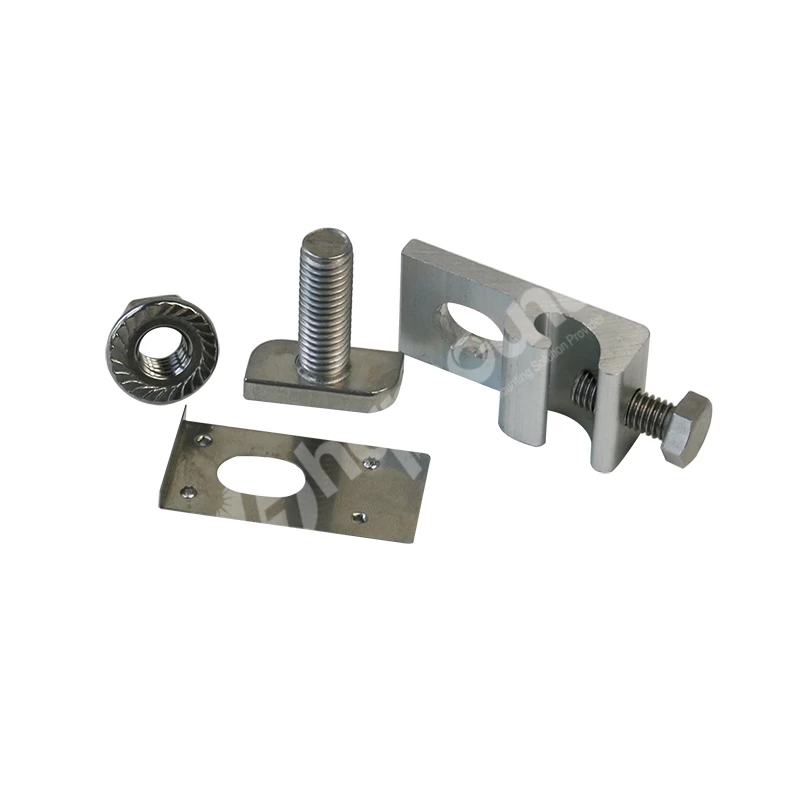

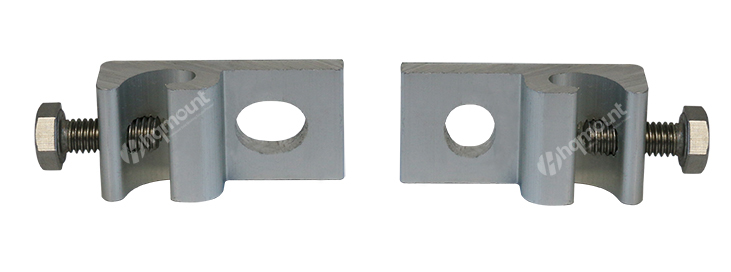

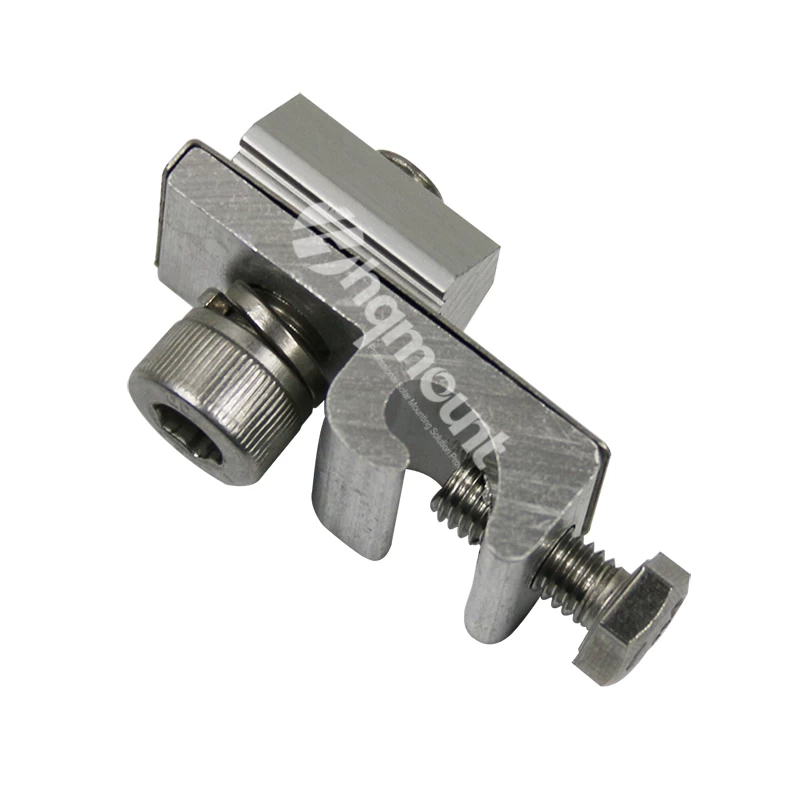

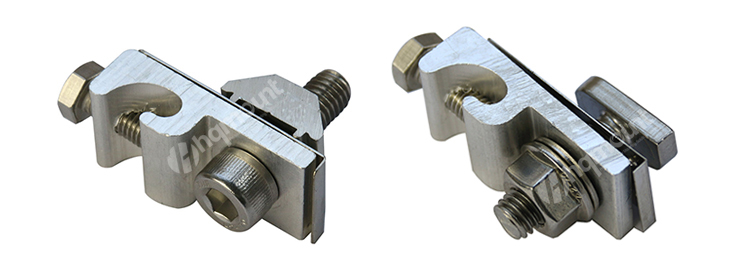

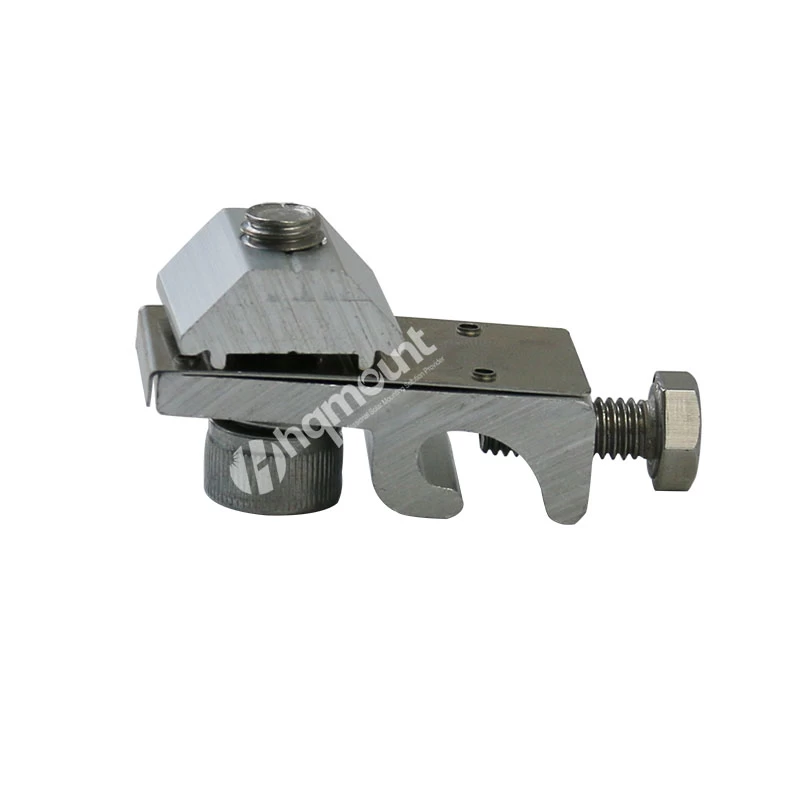

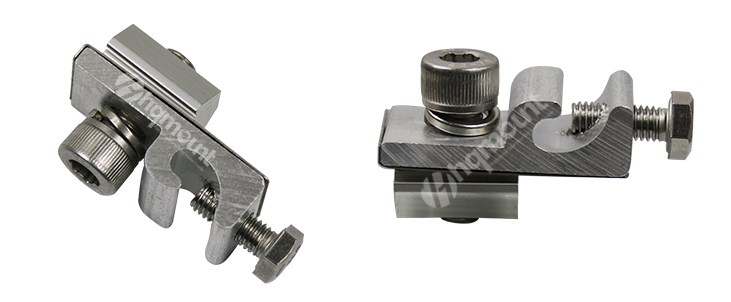

solar mounting grounding lug
|
|
Material
|
Al 6005-T5 & SUS304
|
|
Size
|
Customized
|
|
Surface
|
Anodized, Black Electrophoresis.
|
|
Certification
|
ISO, SGS, Aluminum testing report.
|
|
Usage
|
Solar ground mounting system, solar carpot, solar rooftop mounting system
|

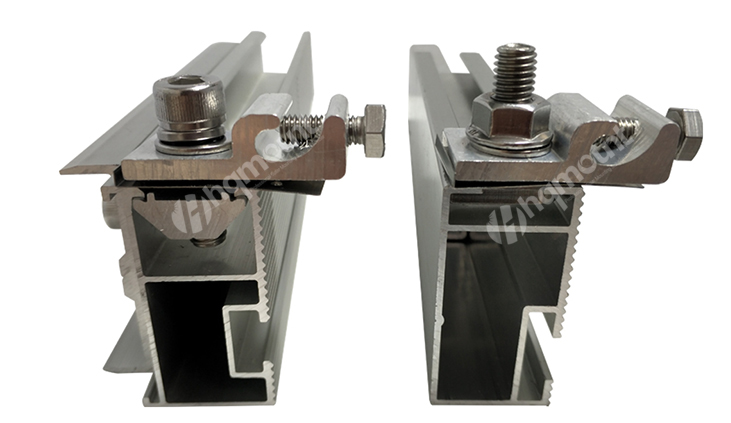

Grounding Lug ensures a quick and easy installation. Multiple equipment ground conductor allowance.
The low profile of the grounding lug allows it to be installed in a variety of positions with one solid or stranded
copper wire (14AWG to 6 AWG), or two copper wires (12 AWG to 10 AWG).It is installed using stainless steel
mounting hardware. When the hardware is tightened, the conductive plate specialized teeth embed into anodized
aluminum or any electrically conductive metal to establish a gas tight electrical connection.
