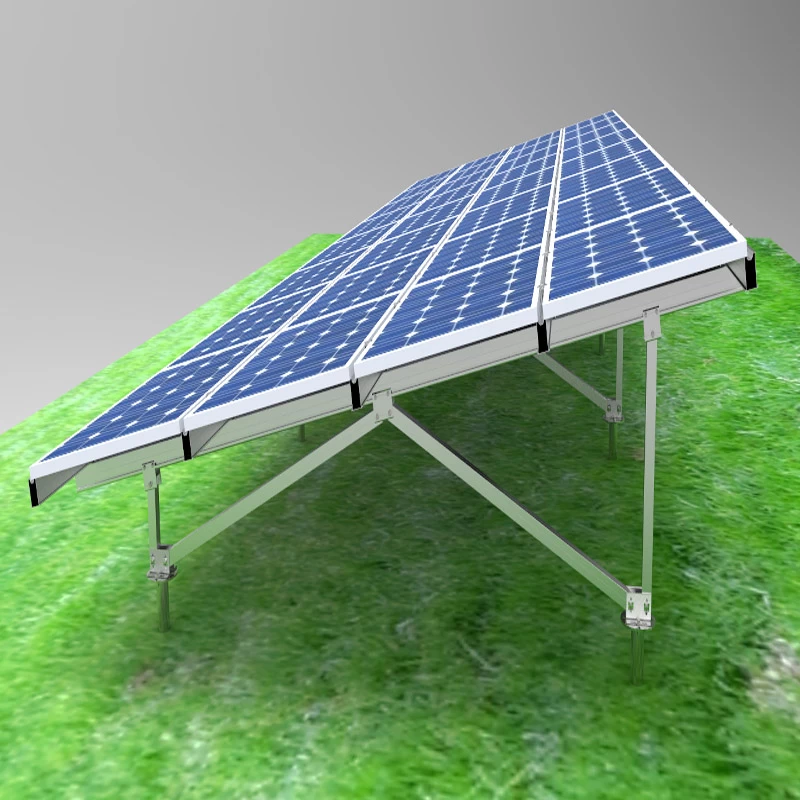

Aluminum solar panel mounting system is not only light in weight, easy to install, but also strong in strength, resistant to large snow and strong wind speed
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

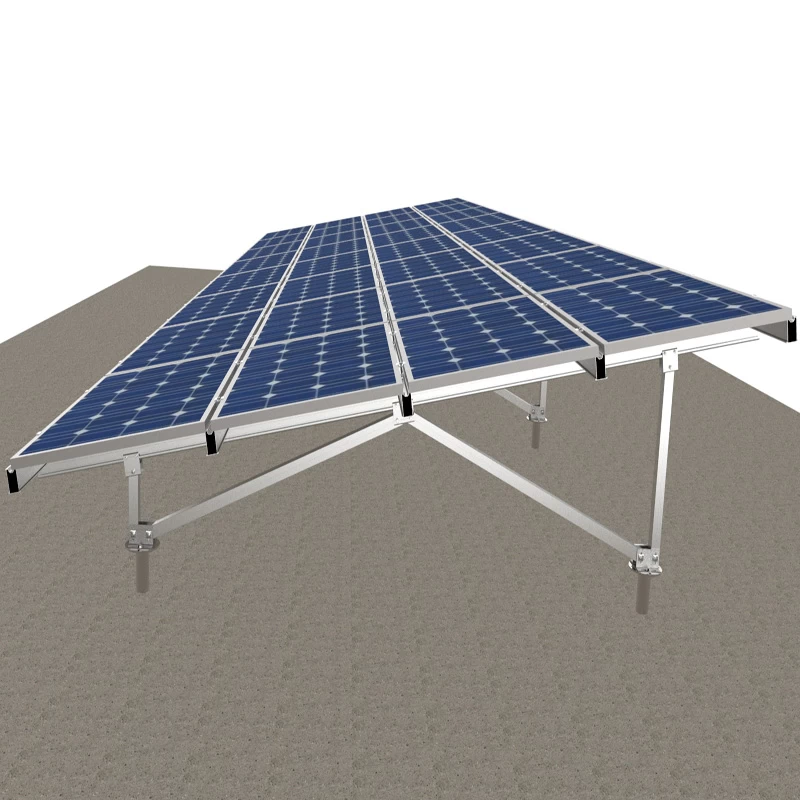

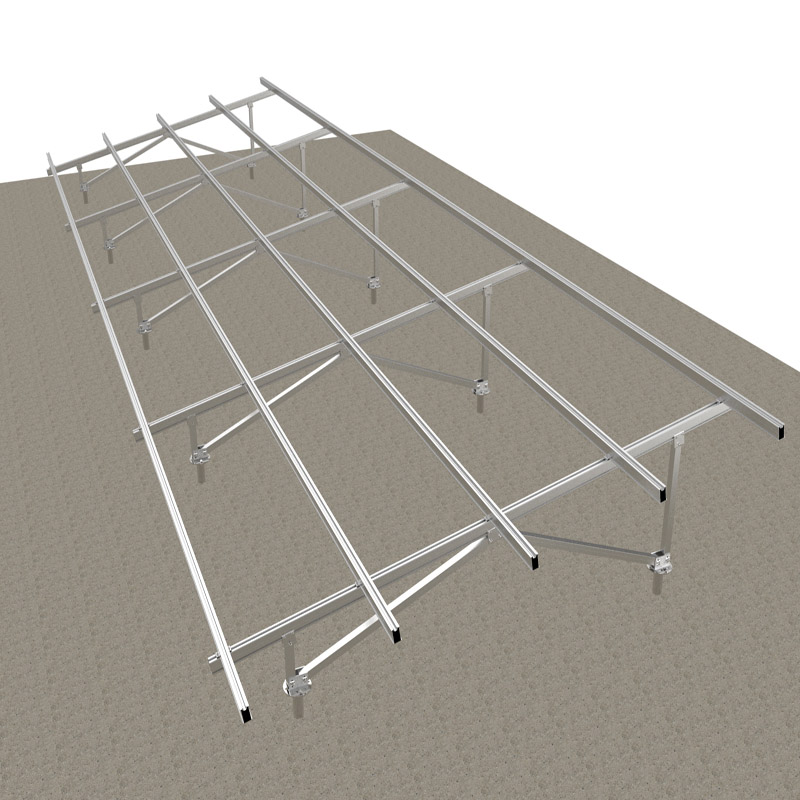

Aluminum solar panel mounting system
Feature:
1. Ground
clearance of W-type aluminum mount is adjustable, which is often used to
arrange 4-5 rows of vertical panels;
2. There are two
square tube supports in different directions in the middle, which makes the
whole frame more stable
3. Suitable for
places with harsh conditions
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

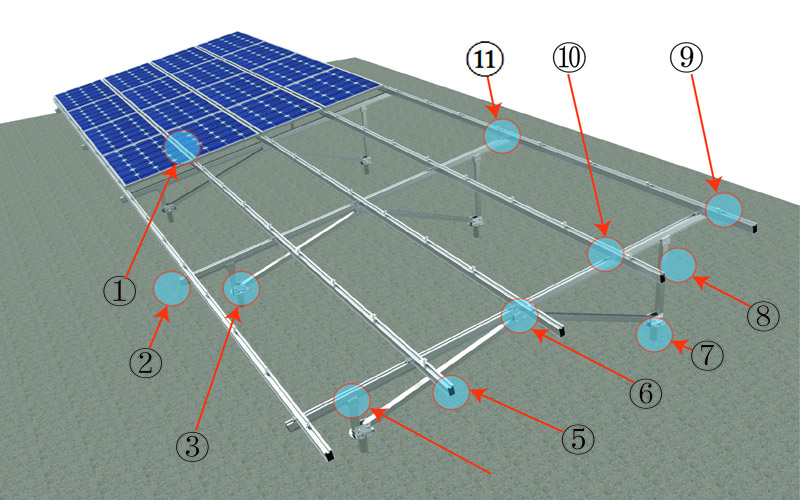

Component photos of aluminum ground mounting system
1. Solar inter clamp 2. Solar support beam 3. Solar base 140 4. Solar connecter 90
5. 1# Solar rail 6. Solar connecter 120 7. Solar ground screw 8. Solar aluminum alloy
square tube
9. Solar end clamp 10. Solar rail clamp 11.Solar rail splice
Installation steps of aluminum ground mounting system

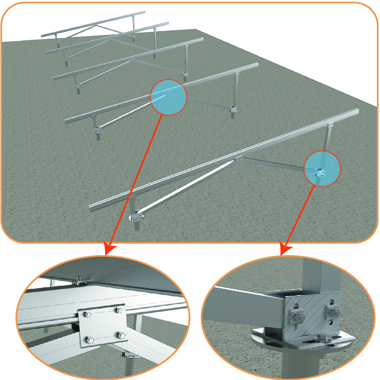

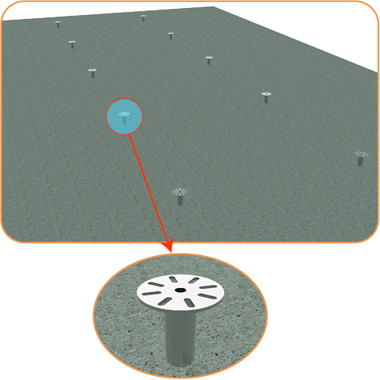

Step1：Install ground screw according to Step2： Install the pre-assembled
distance marked in drawing support beam on the ground screw
Install ground screw Solar connecter 120 Solar base140

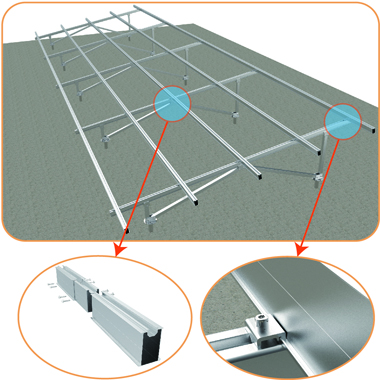

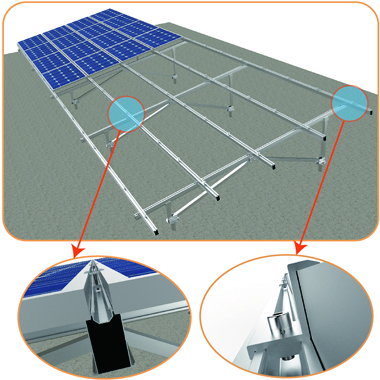

Step3：Install rails and rail splices Step4： Fasten panel by inter clamp and end clamp
Rail splice Rail clamp Inter clamp End clamp
Highly pre-assembled
Installation steps

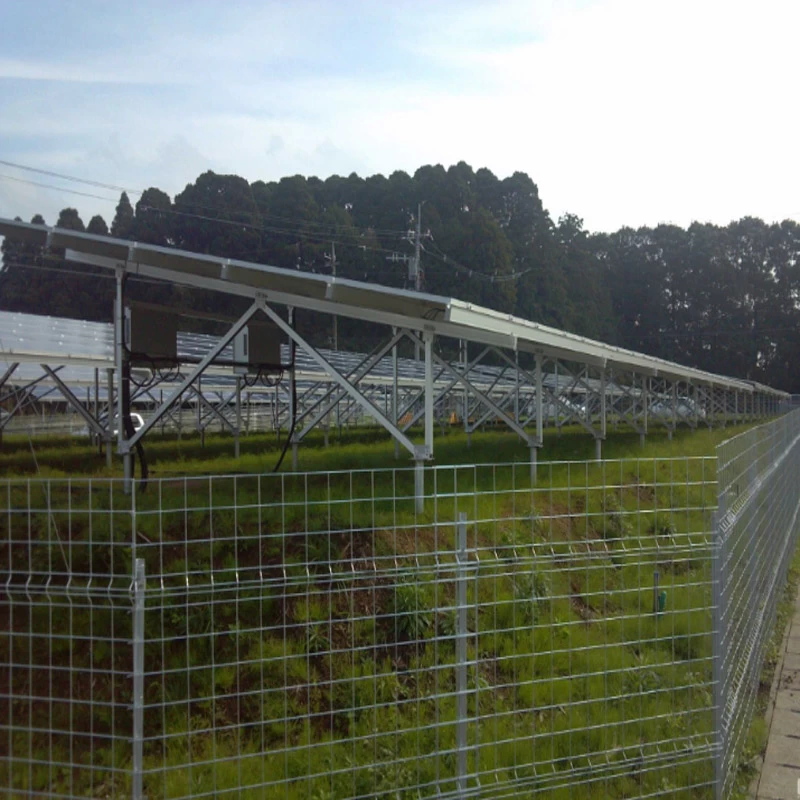

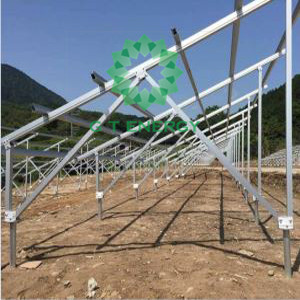

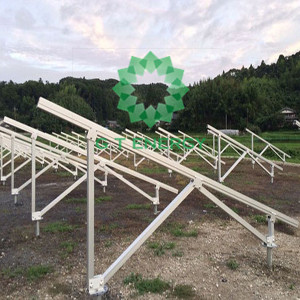

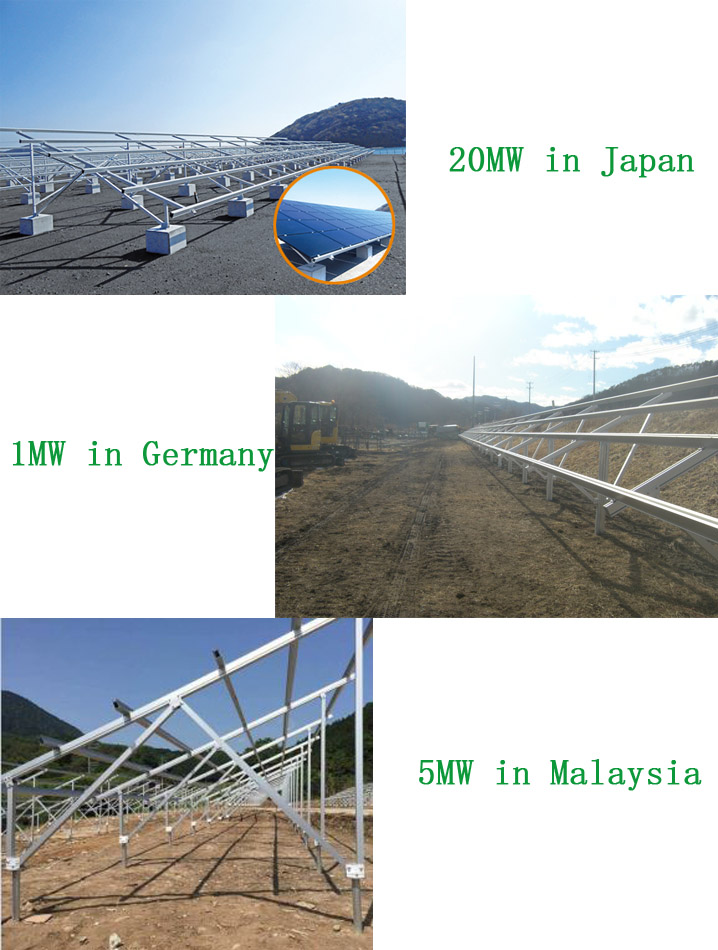

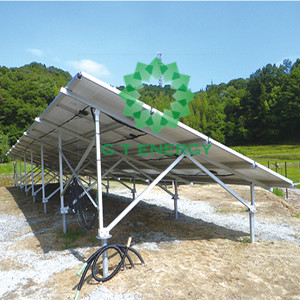

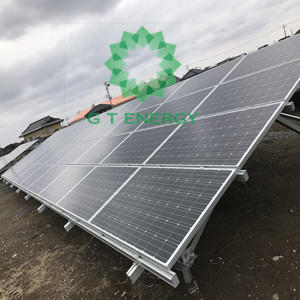

Project photos
