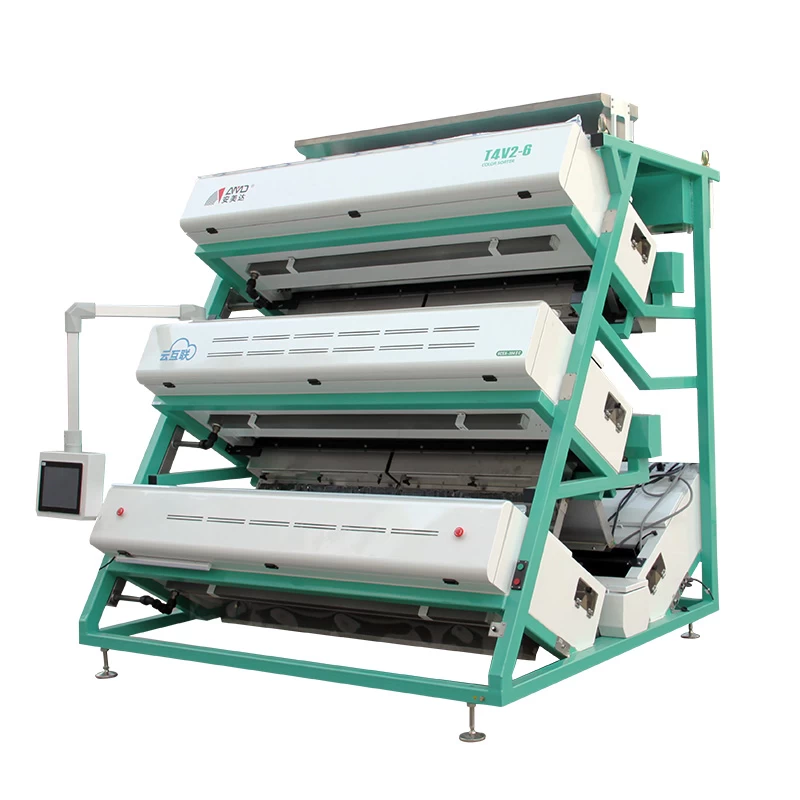

TV series intelligent tea color sorting machine
-
Using the most advanced Fourier infrared spectroscopy technology and neural network algorithm in the industry to carry out comprehensive and accurate analysis of the materials to be analyzed, to ensure that each material can get the most perfect solution.
-
The imported high-speed infrared sensor is used to develop a domestic first-class multi-spectral infrared camera, real-time dynamic monitoring of materials.
-
Combined with visible light full-color camera technology, to achieve full-band material analysis, to achieve high-precision color sorting of materials.
-
Equipped with domestic first-class light source lighting technology, innovative concentrated high-brightness full-band light source, which can comprehensively improve the color sorting precision of dark materials.
-
Accurate and accurate material information is guaranteed with stable and uniform characteristics.
-
High-speed near-infrared sensor and automatic image calibration algorithm technology for real-time dynamic monitoring and dynamic image calibration, which greatly improves the stability and anti-interference performance of the machine.
Machine parameter
The main specifications and parameters of the AMD brand new
generationTV series intelligent tea color sorting machine are as follows：
|
Model
|
HY-2A
|
T2-2A
|
T2-4A
|
T2-6A
|
T3V1-6A
|
T3-6A
|
T4V1-6A
|
T4-6A
|
T4+2-6A
|
T4+2-6B
|
|
Ejector Number
|
128
|
256
|
512
|
768
|
1152
|
1152
|
1536
|
1536
|
2304
|
2304
|
|
Capacity（KG/h）
|
50
|
250
|
350
|
450
|
500
|
500
|
500
|
500
|
600
|
600
|
|
Accuracy（%）
|
﹥95%
|
﹥95%
|
﹥95%
|
﹥95%
|
﹥97%
|
﹥97%
|
﹥97%
|
﹥97%
|
﹥98%
|
﹥98%
|
|
Voltage(v/Hz)
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
AC220/50
|
|
Power(Kw)
|
0.7
|
0.85-1
|
1.55-2
|
2.3-3
|
3.2-4
|
3.2-4
|
4.15-5
|
4.15-5
|
6.2-7
|
6.2-7
|
|
Weight(Kg)
|
200
|
870
|
950
|
1185
|
1700
|
1660
|
2800
|
3000
|
3280
|
3300
|
|
Dimension(mm)
|
1188*1475*1550
|
1309*1990*2111
|
1930*1940*2111
|
2529*1940*2111
|
2529*2445*1805
|
2530*2245*2620
|
2529*2800*2703
|
2529*2824*2703
|
2586*3816*2904
|
2586*3816*2904
|
-
Multi-type chutes with anodizing treatment to ensure smooth material flow,improve machine sorting performance,meet different requirement from customers.
-
High efficient and durable LED lamps ensures long life span of the sorter. True RGB controllable background assembly applied to cleaning and grading of muitiple materials.
-
Compound image algorthm realizes intelligent and accurate identification from color ,texture,shape,size and material.
-
High definition low distortion lens “copys” the real information into machine visual system. 5400 px RGB trichromatic CCD sensor & Infrared CCD sensor analyze full spetrum from the material.
-
High-end imported INTEL ALTERA “Cyclone” IV generation FGPA chips bring huge speed capacity of data processing and exchange max as100 mega byte per second.
-
12” LCD touch screen and Windows based system equipped with most simplified interface and remote control and mobile devices control Only for easy operation.
-
Compact Magnev high frequency ejectors ensures the quality of accepted products after sorting,reduce the rate of good kernel inside of rejected products and consumption of compressor.
-
Food grade water proof vacuum inner package and seaworthy wooden box ensure safety of the cagos delivery from whatever tremendous change of sea shipping conditions meet.
Design and offer various type of sorter according to different customers' requirement and material features,to achieve the optimal sorting performance.
Applications
This tea color sorter can sort black tea, green tea, green tea, and rock tea etc...
