American Standard UL&TUV Approved PV-1F Photovoltaic Power Cable
Our Solar Cable PV1-F has high heat resistance, cold resistance, abrasion resistance, UV resistance, ozone resistance and hydrolysis resistance.
Product Information:
|

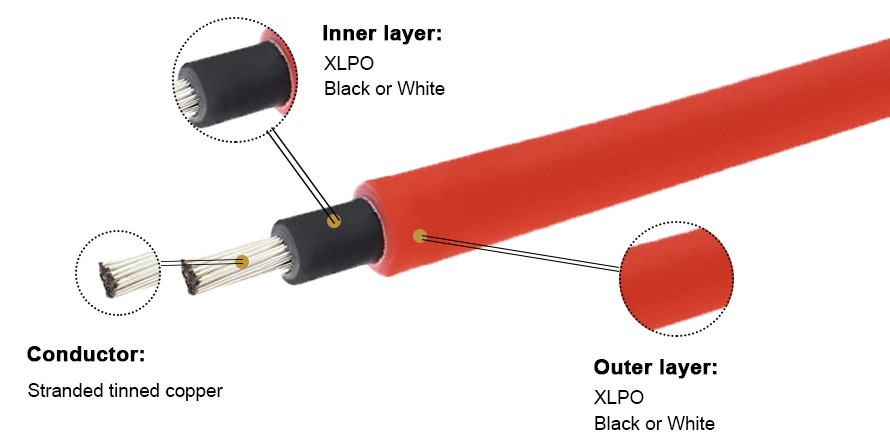

Conductor
|
Inner Layer
|
Outer Layer
|
|
Construction
|
AWG
|
Cond Size(mm²)
|
Diameter(mm)
|
Min/Average
Thickness(mm)
|
Diameter(mm)
|
Min/Average
Thickness(mm)
|
|
43/0.254
|
14
|
2.5
|
3.55
|
0.69/0.76
|
5.15
|
0.69/0.76
|
|
56/0.285
|
12
|
4
|
4.05
|
0.69/0.76
|
5.65
|
0.69/0.76
|
|
84/0.285
|
10
|
6
|
4.60
|
0.69/0.76
|
6.20
|
0.69/0.76
|
Advantages:
(1)Electron-beam cross-linked compounds;
(2)UV, ozone and hydrolysis resistant;
(3)High temperature resistant, the materials do not melt or flow;
(4)Good cold flexibility;
(5)Very long service life > 25 years at 90°C;
(6)Compatible to all popular connectors.

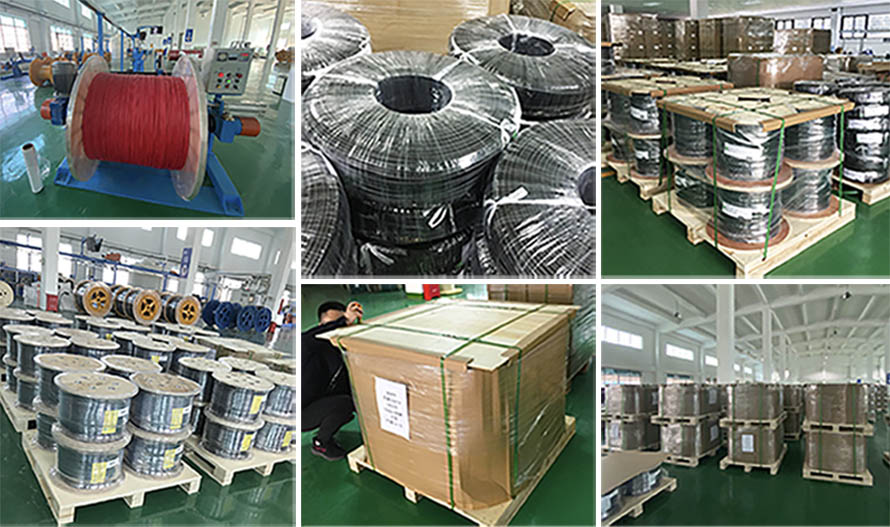

Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,house solar power system, PV1-F Solar Cable , PV connectors, fence, photovoltaic inverter etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
