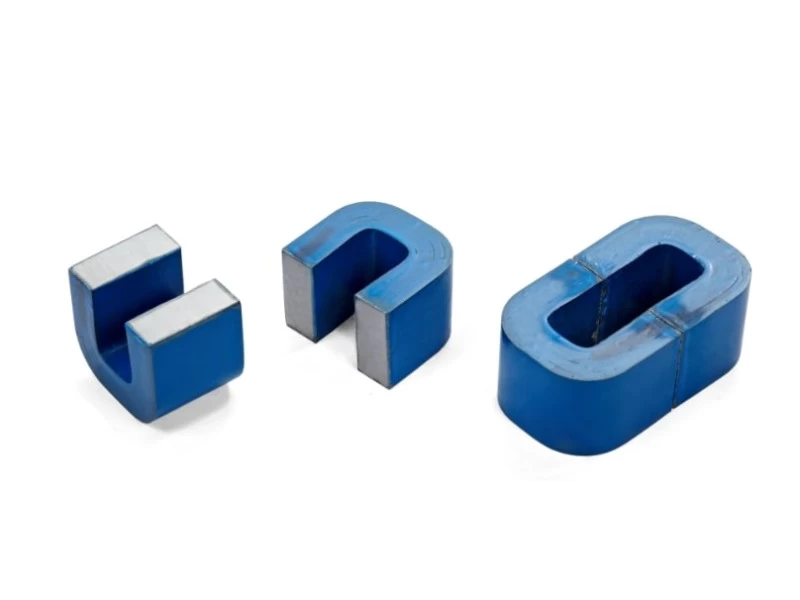

Amorphous C Cut Core 16A

Amorphous c cut core for inductor, choke, PV inverter and other components.

Facebook Twitter Pinterest LinkedIn 分享

1.Raw Material

SAT-1K101/ Epoxy base varnish SATV002
2.C-Core Weight
245g
3.Storage Temperature
-55°C < Tc < +150°C
4.Core loss@16KHz, 37mT
≤1.38W/KG

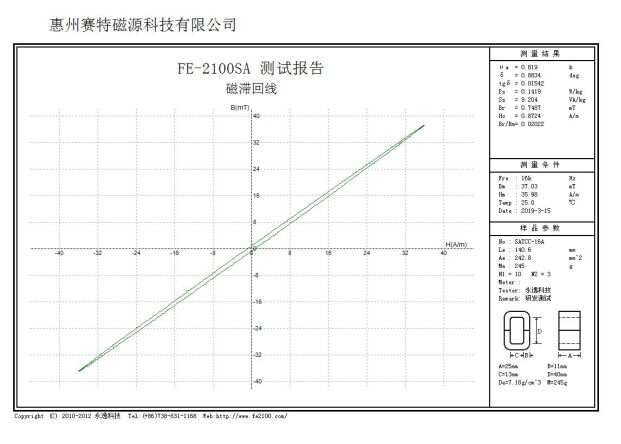

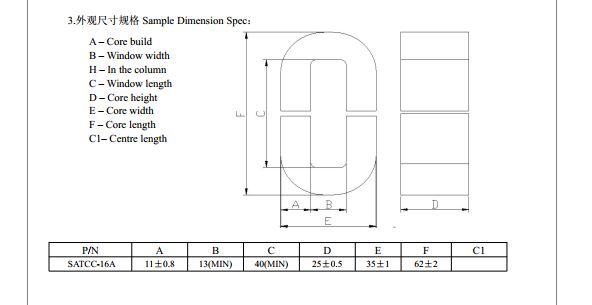

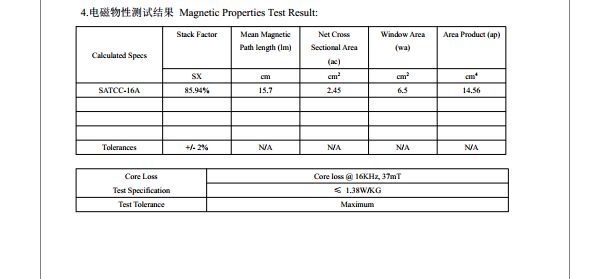

5.Other parameters are included in the pics.
