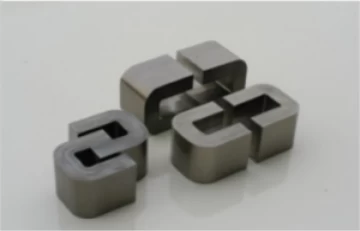

1. Material
of Core:Fe-base amorphous alloy ribbon

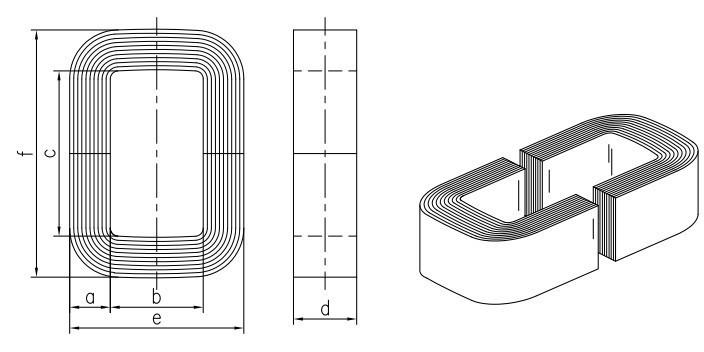

2. Dimensions of Core:
3. Magnetical Test:(AQL 0.65)
Test of Iron loss and AL according to GB/T
19346-2003 ( The test standard for Fe-base nanocrystalline alloy in China)
3.1 Loss Test:
Magnetic Induction Density:B=0.037T
Frequency:f=16kHz
Test Equipment:2010SA AC soft magnetic tester
Iron Loss:pFe≤1.2W/kg
AMCC-160 Iron Loss:PFe≤1.6W

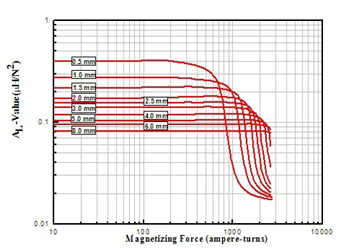

3.2 AL Test:
We can get different permeability and inductance by adjusting the
air gap.
