Key Properties:
-
High saturation magnetic induction (Bs)
-
Low core loss compared to other core materials
-
Good frequency and temperature characteristics,usable to 3000KHz
-
Good DC Bias characteristics
-
Low leakage flux
-
Size saving and lighter weight, compared to others
|
Typical Parameter
|
|
|
Density
|
7.3g/cm3
|
|
Curie Temperature
|
Tc =410°C
|
|
crystallization temperature
|
Tx =530°C
|
|
Saturation
|
Bs= 1.56T
|
|
Electrical Resistivity
|
ρ=130Ω-cm
|
|
Saturation Magnetostriction
|
λs=27x10-6
|
Product Description:

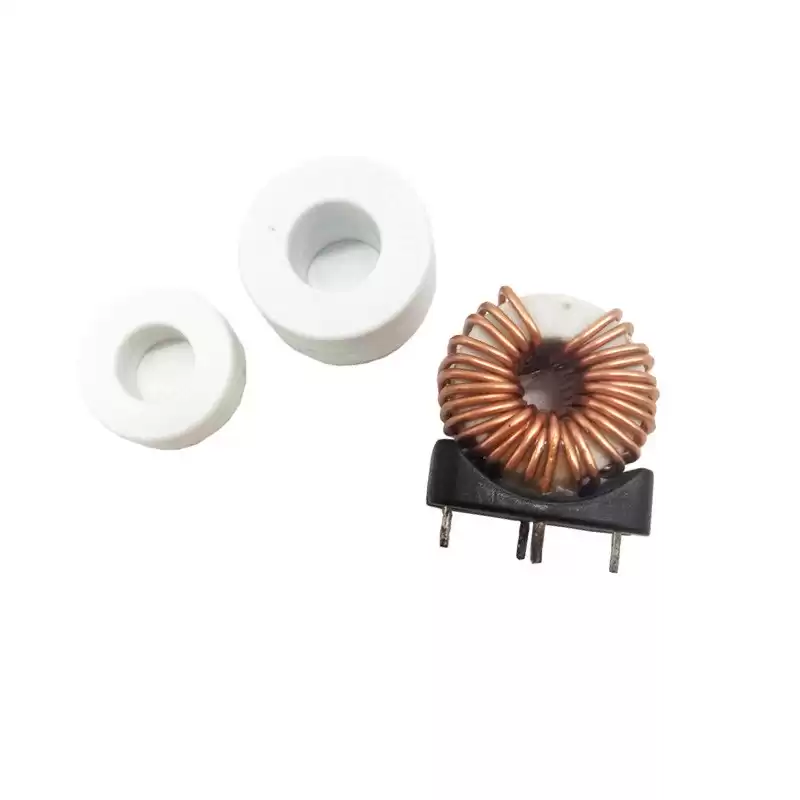

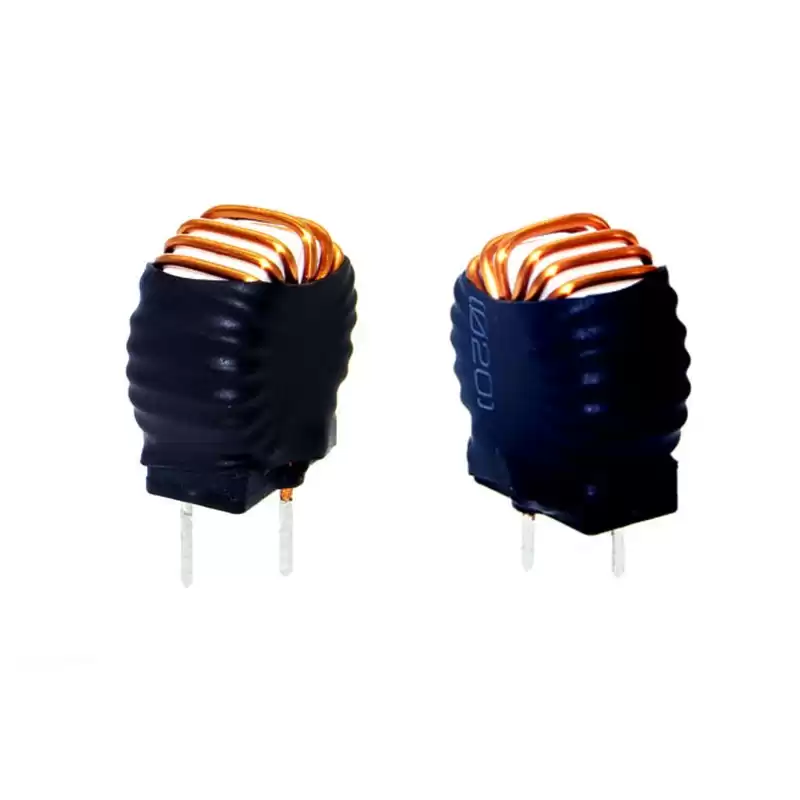

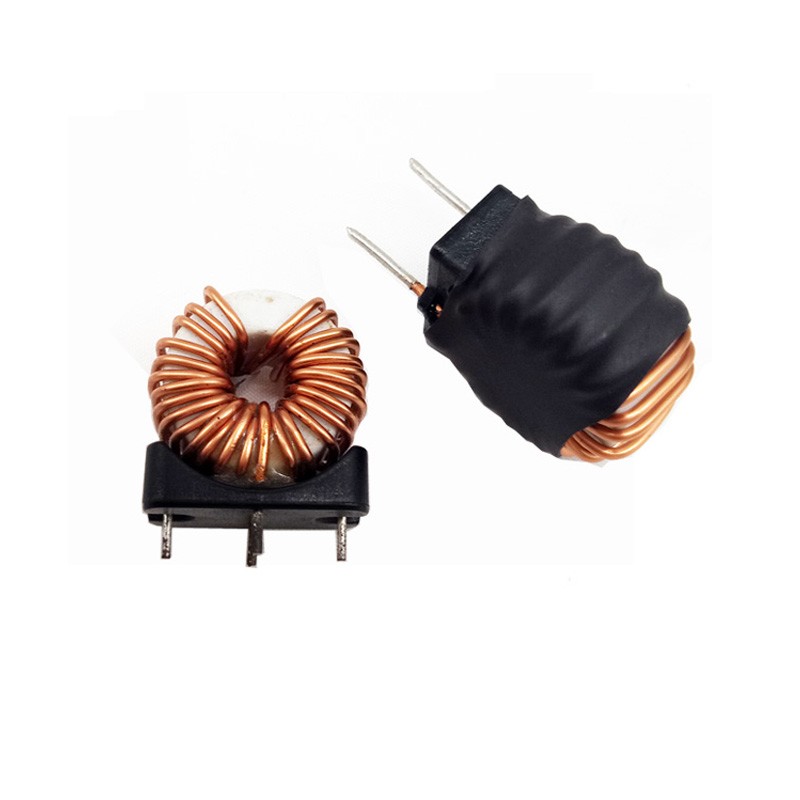

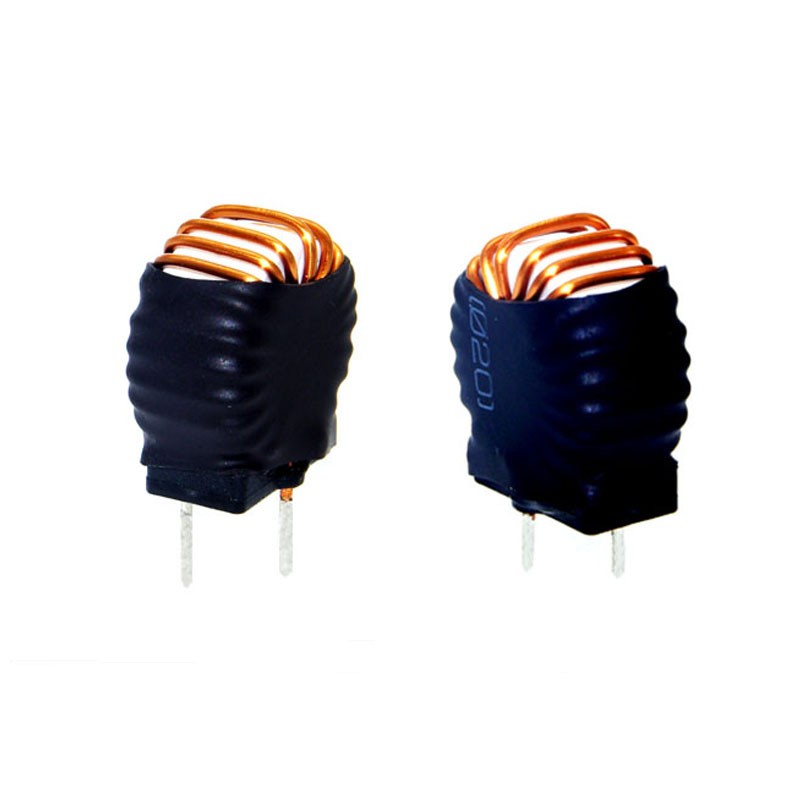

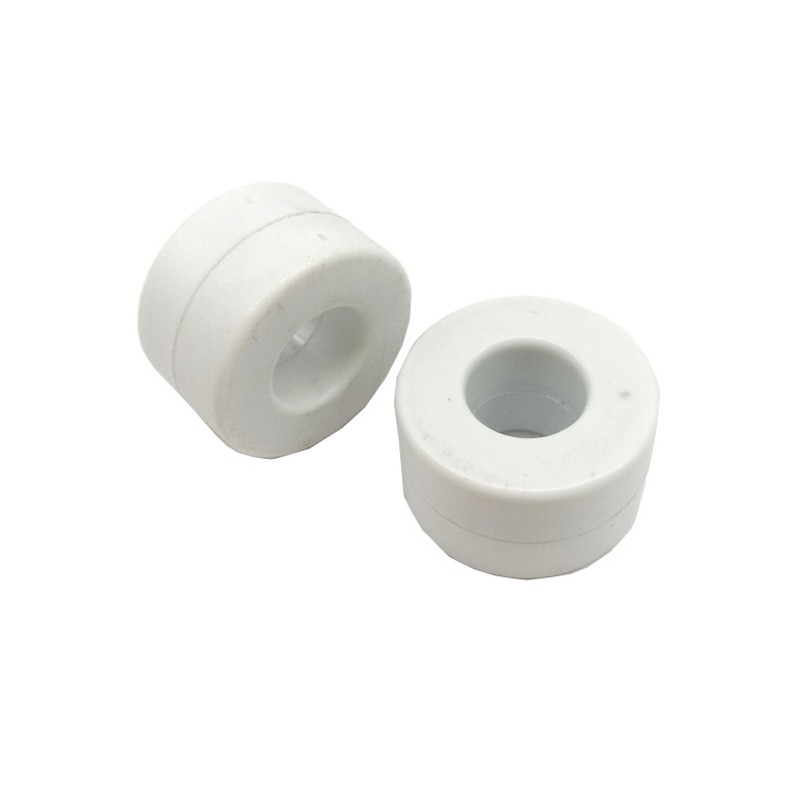

For Car Audio application Amorphous core, we supplier from core to coil based on clients request.
Standard Product list download, and part test report reference as below:
OEM design is supported. We design & produce goods based on specifications & drawing, specification including:
1. Bare core size, Size finished

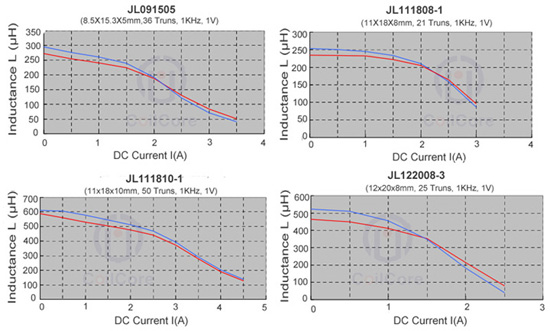

2. Parameter, AL @ DC bias =0A ; AL@DC bias=1A/2A/3A....
3. 3. What diameter of copper wire for coil.
Main Application:
-
Output choke coil for SMPS
-
Choke coil for DCC/DC Converter
-
Normal mode choke coil
-
Choke coil for adapter and battery charger
-
PFC Choke Coil
-
Car Audio
