Amorphous Winding Core CC40

Epoxy resin amorphous c cut core for transformer and other electronic component. We provide one-stand solution services, please feel free to contact us.

Facebook Twitter Pinterest LinkedIn 分享
1.Raw Material
SAT-1K101/ Epoxy base varnish SATV002
2.C-Core Weight
530g
3.Storage Temperature
-55°C < Tc < +150°C
4.Core loss@16KHz, 37mT
≤1.38W/KG

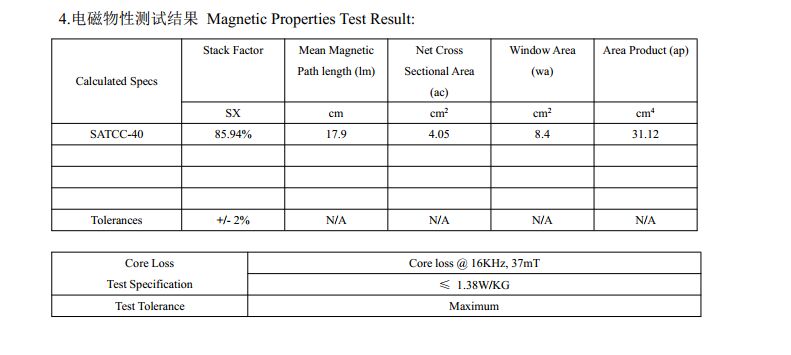

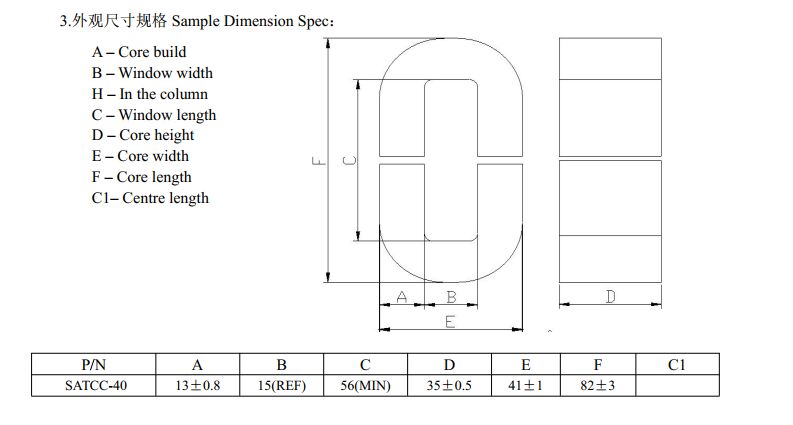

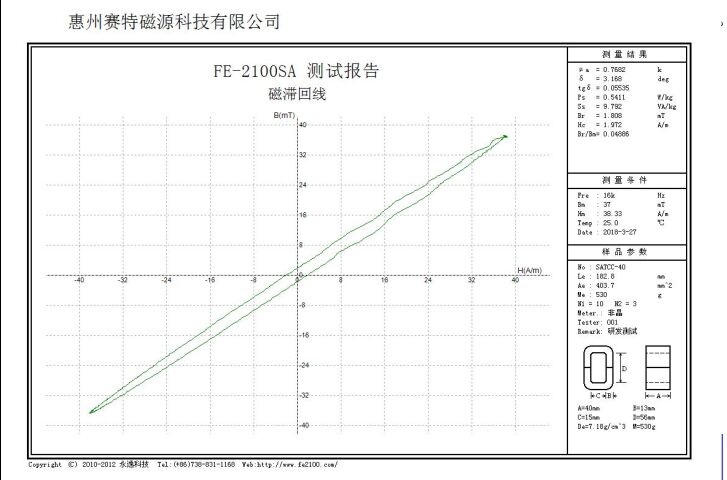

5.Other parameters are included in the pics.


Amorphous Winding Core CC40 wholesale




Please leave a message below for more details of amorphous  c cut cores product information.
