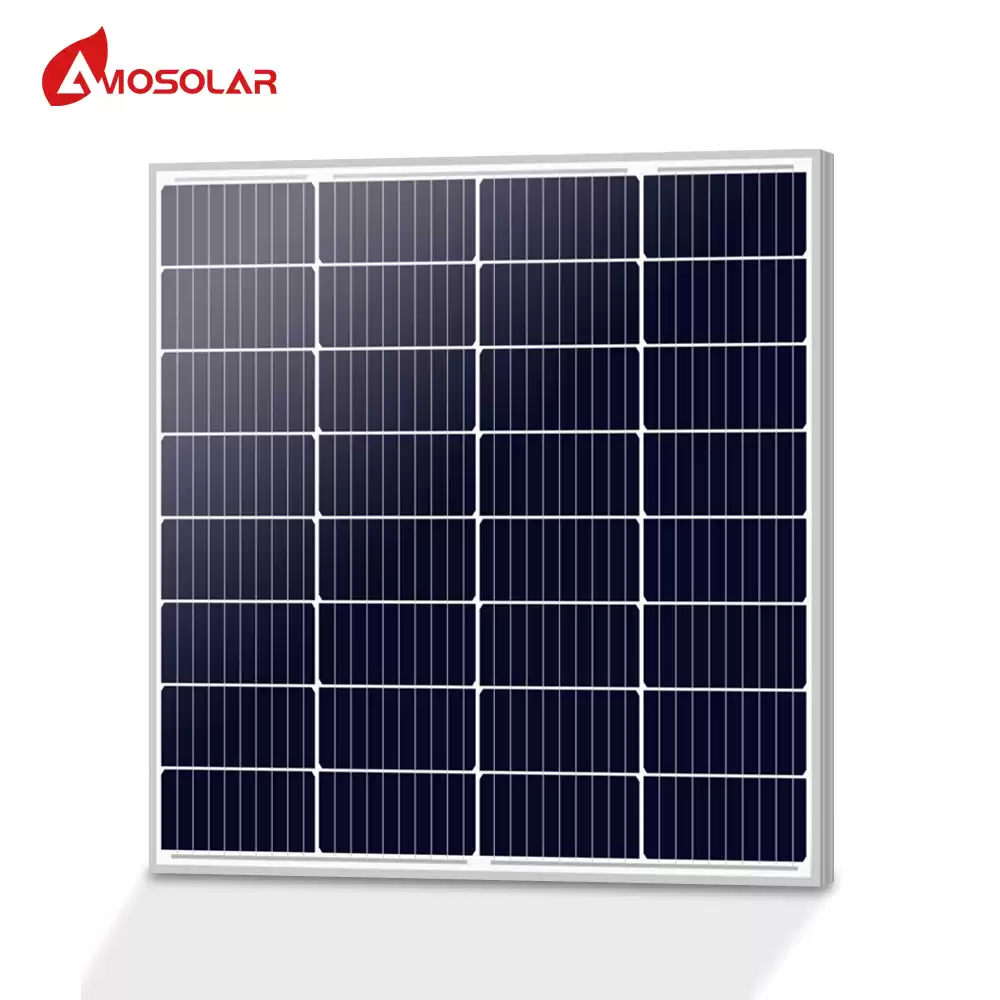

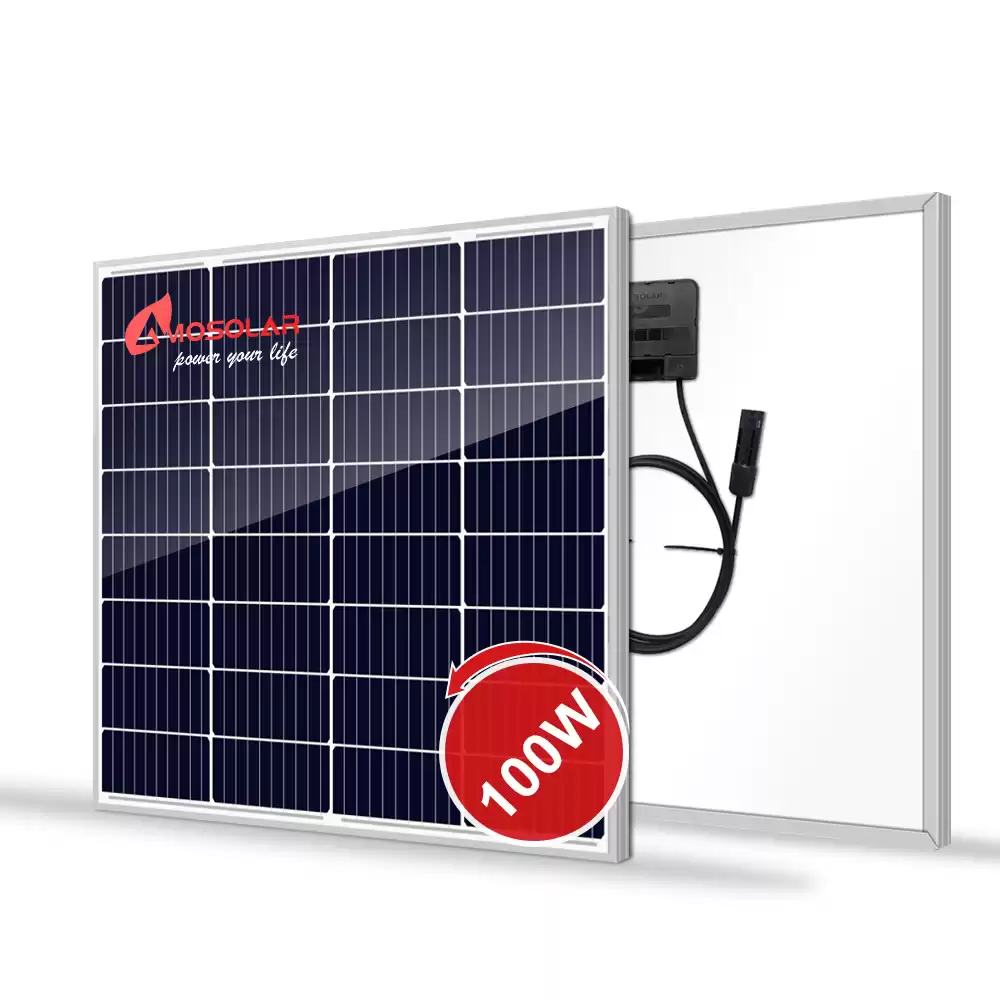

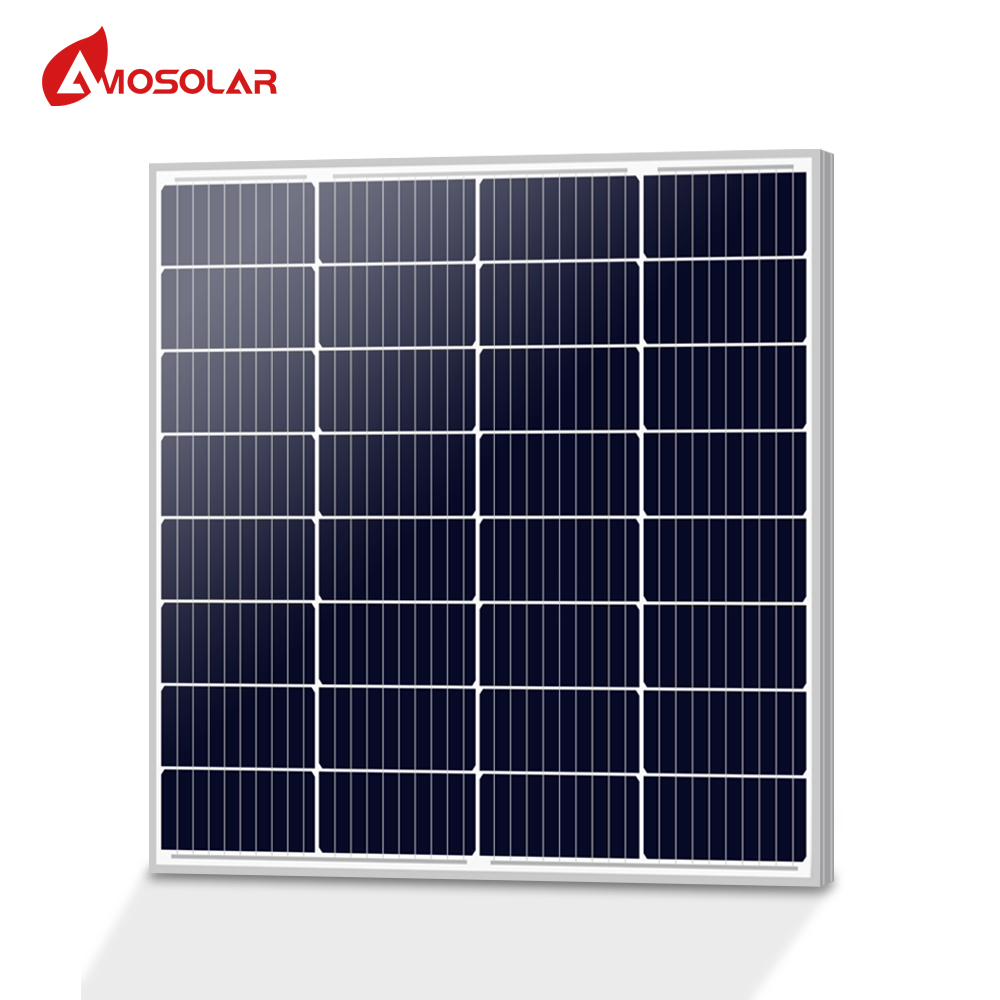

100W Small Monocrystalline PV Panel Chinese Manufactory : High efficiency solar panels. The same as 55W mini solar panels, 100W solar pv mudule have become increasingly efficient and cost-effective, providing more reliable power for years to come.
|
Model
|
AS100M6-32
|
|
Rated Maximum Power at STC
|
100W
|
|
Open Circuit Voltage (Voc)
|
21.98
|
|
Maximum Power Voltage (Vmp)
|
5.64
|
|
Short Circuit Current (Isc)
|
19.74
|
|
Maximum Power Current (Imp)
|
5.07
|
|
PV Module Efficiency (%)
|
18.16
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ，Air Mass 1.5
|
Mechanical Parameters

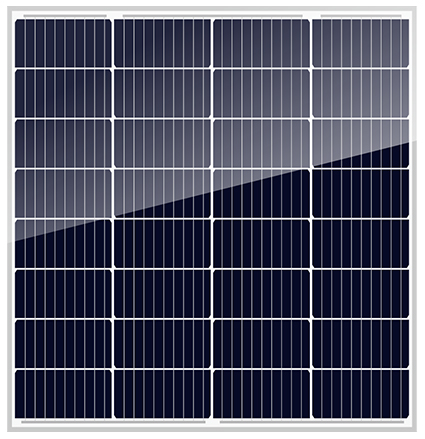

Layout : 32( 4 × 8 ）

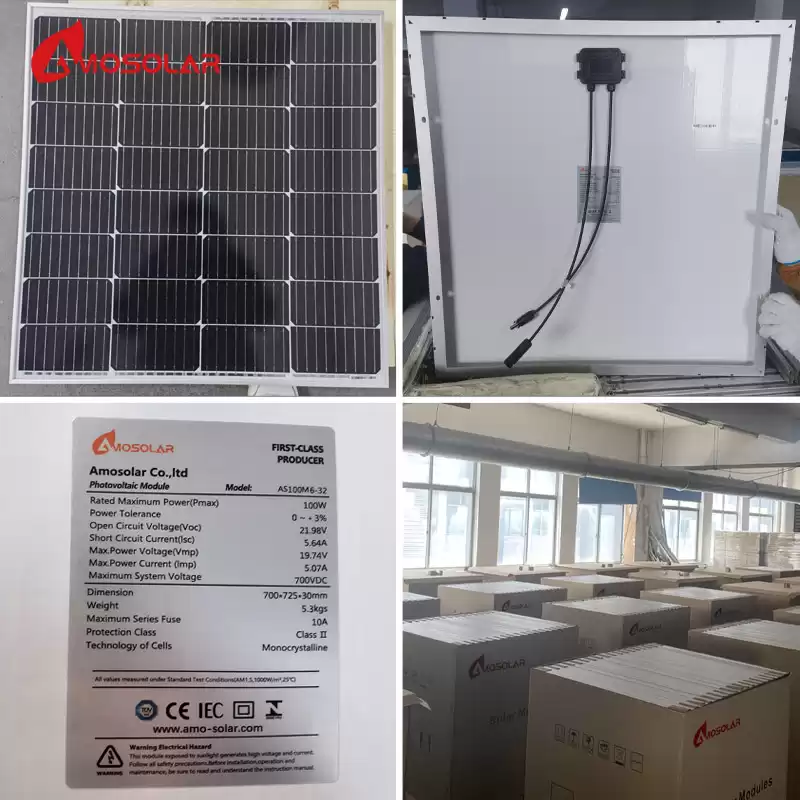

Junction Box : Split junction box, IP67
Weight: 5.3KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

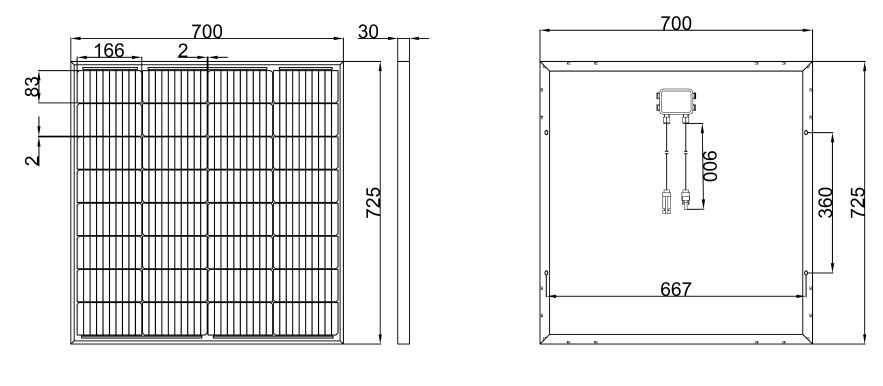

PV Size: 700x725x30mm
Packaging: 140 pcs / pallet
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
