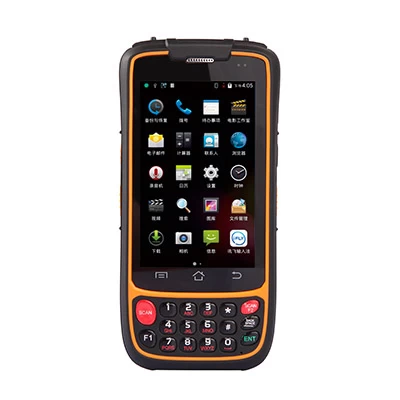

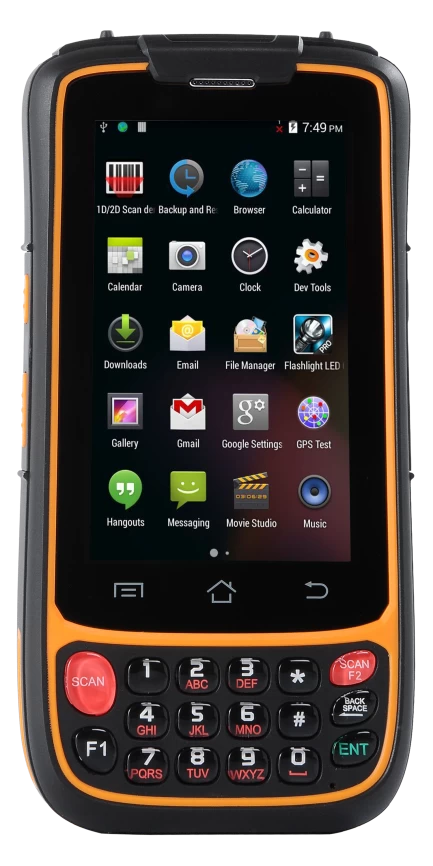

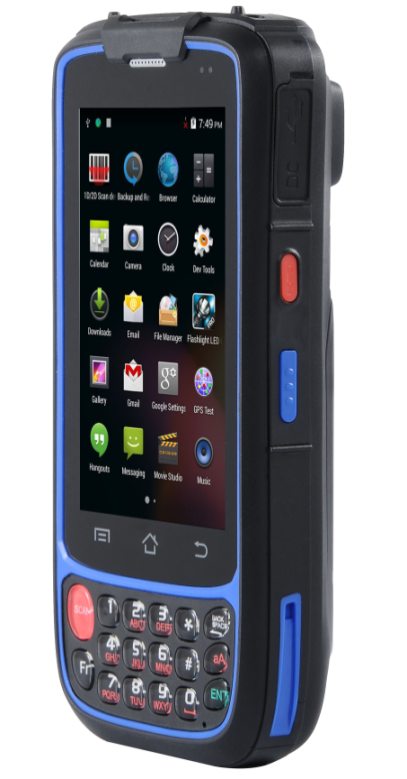

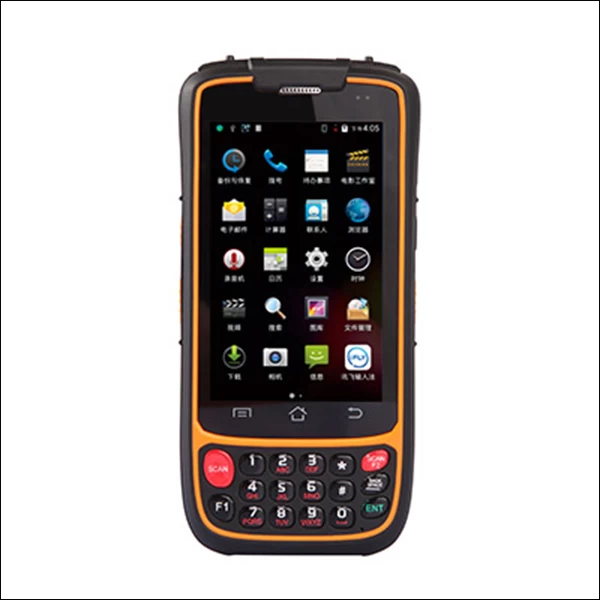

JT-H942 serial products extend Handheld-Wireless product serials into Android OS 5.1.1 handheld terminal with numeric keypad. Inside the compact terminals, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, and 4.0 inch tough screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.
FEATURES:
High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment;
Extraordinary Battery Life
Extremely battery of 5200mAh can ensure long battery in different using environment;
Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;
Extremely Stable Hardware Display
4.0 inch tough screen can ensure the performance under different tough environment;
Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware module integration based on different project requirements, especially like UHF+HF, UHF+LF, LF+HF;
High Efficiency Operating
Numeric keypad can ensure the high efficiency operating status;
Quick-Charging
Quick-charging technology can provide the most efficient experience;
Perfect Service
Professional and skillful service involving the whole life cycle can guarantee the stability.
|
SPECIFICATIONS
|
|
PHYSICAL CHARACTERISTICS
|
|
Dimension
|
158mm(H)x75mm(W)x28mm(D)±2 mm
|
|
Weight
|
Net Weight :300g (including battery&wrist strap)
|
|
Display
|
4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight
|
|
Backlight
|
LED backlight
|
|
Keypads
|
3 TP keys, 17 function keys, 4 side buttons
|
|
Expansions
|
2 PSAM, 1 SIM, 1 TF
|
|
Battery
|
Rechargeable li-ion polymer, 3.7V, 5200mAh
|
|
PERFORMANCE CHARACTERSTICS
|
|
CPU
|
Quad A53 1.3GHz quad-core
|
|
Operating System
|
Android 5.1.1
|
|
Storage
|
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)
|
|
USER ENVIRONMENT
|
|
Operating Temp.
|
-20℃ to 50℃
|
|
Storage Temp.
|
-20℃ to 70℃
|
|
Humidity
|
5%RH to 95%RH(non-condensing)
|
|
Drop Specifications
|
5ft./1.5 m drop to concrete across the operating temperature range
|
|
Sealing
|
IP65, IEC compliance
|
|
ESD
|
±15kv air discharge, ±8kv direct discharge
|
|
DEVELOPMENT ENVIRONMENT
|
|
SDK
|
HHW Software Development Kit
|
|
Language
|
Java
|
|
Environment
|
Android Studio or Eclipse
|
|
DATA COMMUNICATION
|
|
WWAN
|
TDD-LTE Band 38, 39, 40, FDD-LTE Band 1, 2, 3, 4, 7;
WCDMA(850/1900/2100MHz);
GSM/GPRS/Edge 850/900/1800/1900MHz)
|
|
WLAN
|
2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
|
|
WPAN
|
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
|
|
GPS
|
GPS(embedded A-GPS), accuracy of 5 m
|
|
DATA CAPTUER
|
|
BARCODE READER(OPTIONAL)
|
|
1D barcode
|
1D laser engine
|
Honeywell N431x
|
|
Symbologies
|
All major 1D barcodes
|
|
2D barcode
|
2D CMOS Imager
|
Honeywell N6603
|
|
Symbologies
|
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
|
|
COLOR CAMERA
|
|
Resolution
|
8.0 megapixel
|
|
Lens
|
Auto-focus with LED flash
|
|
RFID READER(OPTIONAL)
|
|
RFID LF
|
Frequency
|
125KHz/134.2KHz(FDX-B/HDX)
|
|
Protocol
|
ISO 11784&11785
|
|
R/W Range
|
2cm to 10 cm
|
|
RFID HF
|
Frequency
|
13.56MHz
|
|
Protocol
|
ISO 14443A&15693
|
|
R/W Range
|
2cm to 8cm
|
|
Active 2.45GHz
|
Read range more than 200 m
|
|
433MHz
|
Read range more than 200 m
|
|
ZigBee READER(OPTIONAL)
|
|
Protocol
|
IEEE 802.15.4
|
|
Reading Range
|
100 m to 200 m
|
|
PSAM SECURITY(OPTIONAL)
|
|
Protocol
|
ISO 7816
|
|
Baudrate
|
9600, 19200, 38400,43000, 56000, 57600, 115200
|
|
Slot
|
2 slots(maximum)
|
|
ACCESSORIES
|
|
Standard
|
1xPower Supply
1xLithium Polymer Battery
1xDC charging cable
1xUSB data cable
|
|
Optional
|
Magnetic charging cable
|
