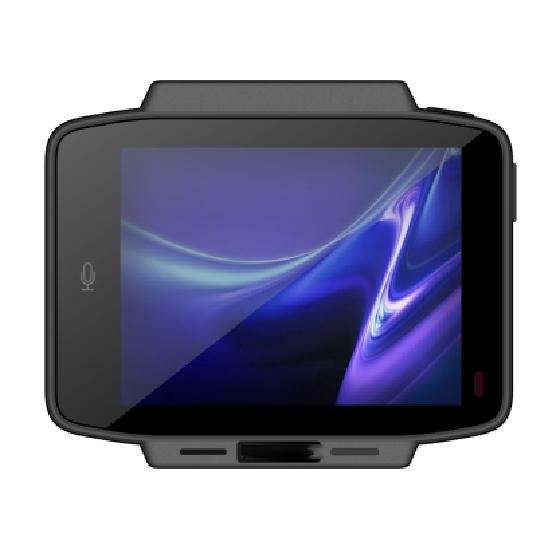

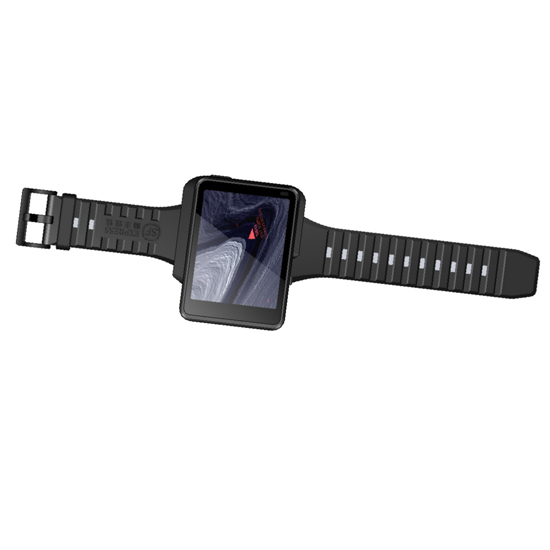

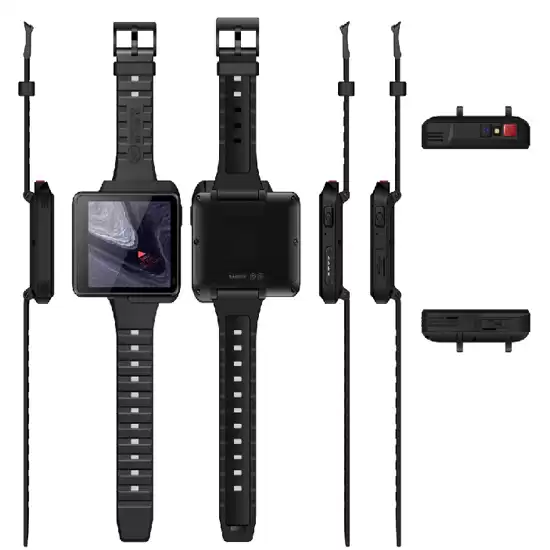

Android Wearable Terminal TEW01

Wearable Computer is the newest smart watch solution to combine with  rugged ring bluetooth scanner mainly for transmitting data .


CPU:Quad core 2.0GHz
Operation System:Android 9.0
ROM+RAM:3GB+32GB

Power supply: non detachable 3300mah lithium ion rechargeable battery, 500 cycles, capacity greater than 80%
Interface / communication :Type-C
Vibration motor:Yes
Audio: built in speaker, 8 Ω 1W * 1, built-in dual microphone



Performance parameter
CPU:Quad core 2.0GHz
Operation System:Android 9.0
ROM+RAM:3GB+32GB


Physical parameter
Dimension:54.7*80*17mm
Weight:100g(without strap)
Display:2.8 inch ful viewing ange LCD display, capacitive 3-point touch, resolution : 640x480
Maximum brightness : 400nit
Keyboard:2 buttons(Power supply, custom),1 million times lifespan

Power supply: non detachable 3300mah lithium ion rechargeable battery, 500 cycles, capacity greater than 80%
Interface / communication :Type-C
Vibration motor:Yes
Audio: built in speaker, 8 Ω 1W * 1, built-in dual microphone

Audio: built in speaker, 8 Ω 1 W * 1, (only support scan prompt), can be turned on or off by Bluetooth control

Automatic scanning: support (automatically scan light when pulling out)

Usage environment
Operating temperature: - 20 ℃ to + 60 ℃
Storage temperature: - 30 ℃ to + 70 ℃
Protection grade: IP67
Drop grade: 1.2m marble drop, 6 sides, 5 rounds, 30 times

Wireless Data Communication
WIFI:IEEE 802.11 a/b/g/n/ac
Bluetooth:Bluetooth 5.0(Dual mode,supporting BLE)
GPS:GPS+Beidou+GLONASS+Galilieo, supporting AGPS


Data Acquisition

Image acquisition: Post shot 13 million pixels
