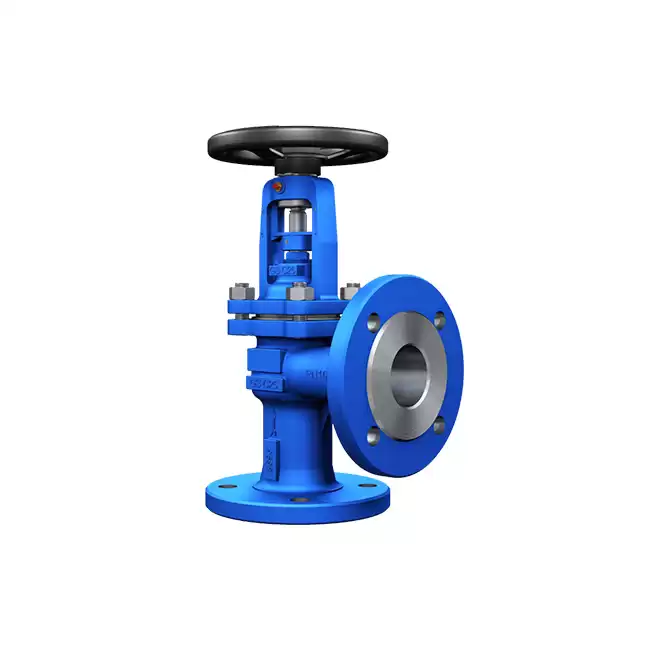

Angle Bellow Globe Valve DN150 PN16 GS-C25

EN13709 Angle Bellow Seal Globe Valve

DN150,PN16, GS-C25, SS304+STL, Handwheel

Manufacture STAVAL Factory Offers.

Key Specification

Type	Bellow Globe Valve
Size	DN150
Pressure	PN16
Construction	Angle type, Rising Stem, Bolt Bonnet, Full Bore,Bellow Seal
Connection	RF End
Body/Bonnet Material	GS-C25
Disc Material	WCB+STL
Bellow Material	A182 F304
Stem Material	A182 F6A
Seat Material	STL
Bolt/Nut	B7/2H
Design Standard	EN13709
Face to Face Dimension	EN558-1
End Connection	EN1092-1
Inspection & Test Std.	API598
Temperature Range	-60℃~+300℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
