| Product name |
Angle Gallop 25 Clamps |
| Installation Site |
Solar Roof Mounting system |
Tilt Angle
|
0-60°
|
| Surface Treatment |
Anodised |
PV module
|
framed,unframed
|
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |
Product Description

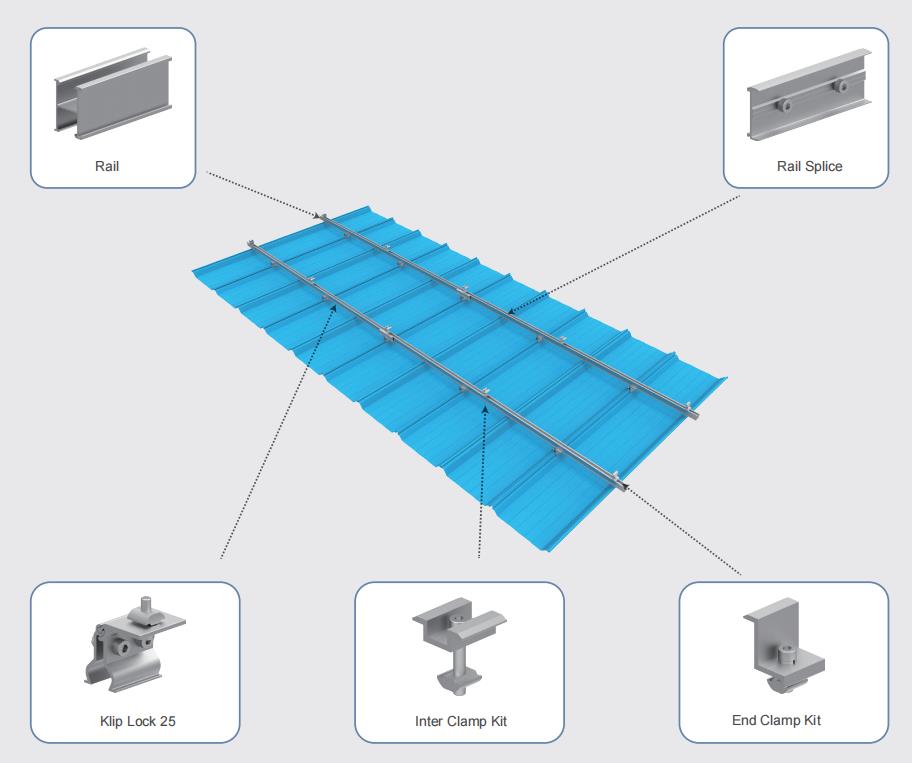

Angle Gallop 25 Clamps is suitable for vertical seam 25 color steel tile bracket, with H-shaped rail or 40 rail, no penetration to the roof, better ensure the waterproofness of the original roof.

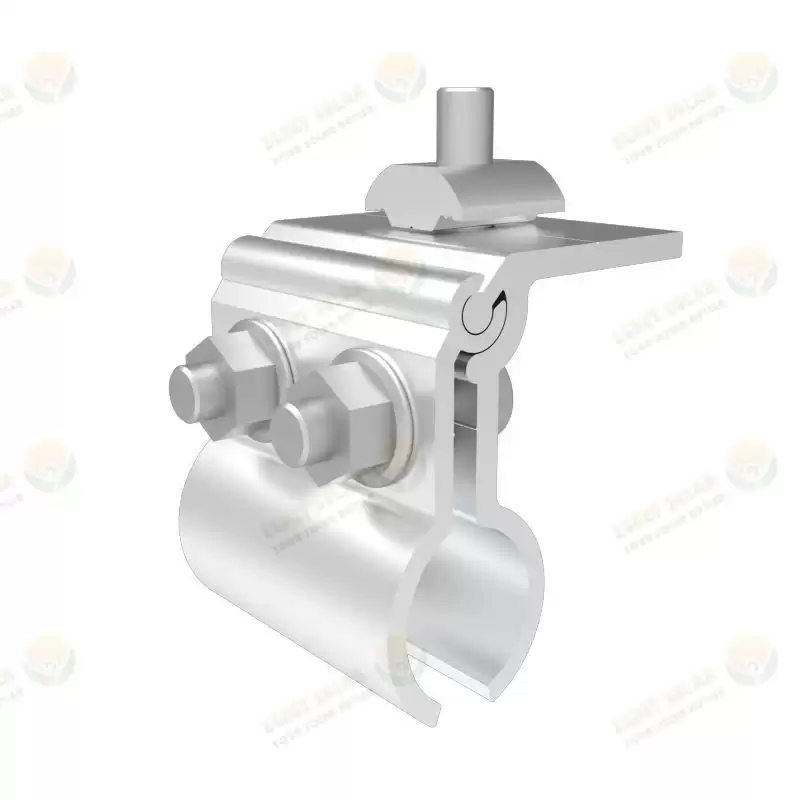

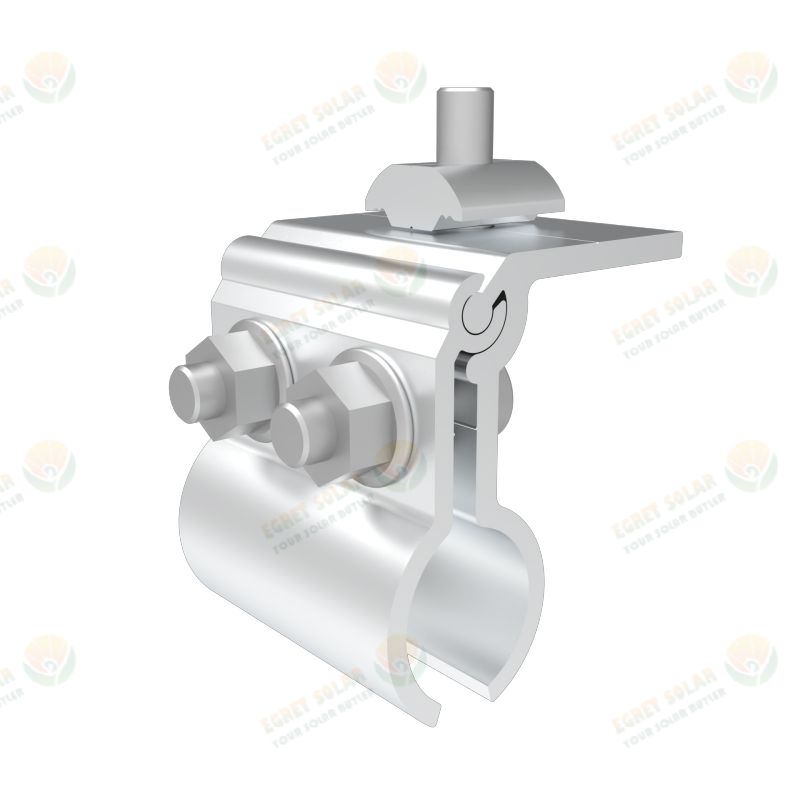

Product Show

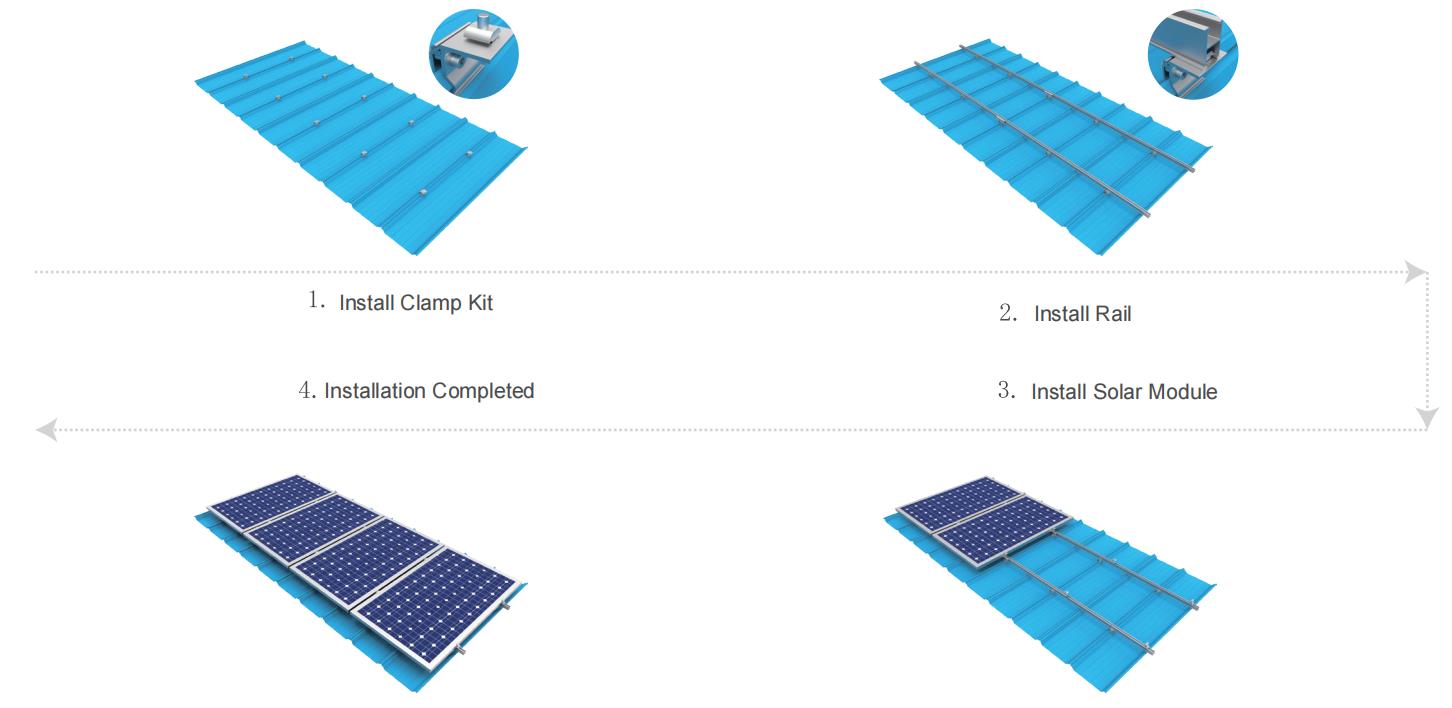

Installation Steps

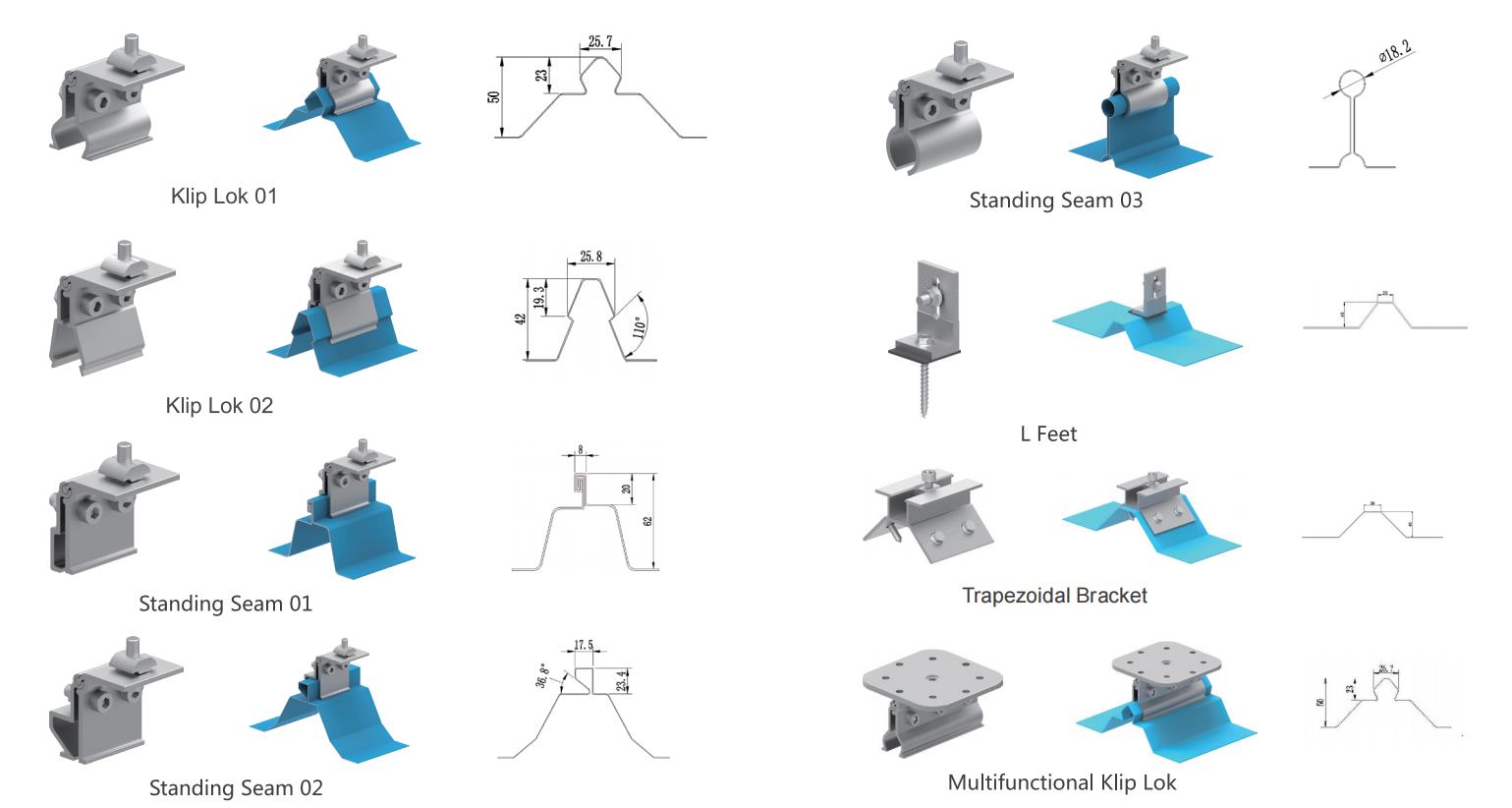

Others Model
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
