Anodized Aluminum Solar Carport Structure

Kingfeels Solar Aluminium Structure Carport is suitable for residential and commercial purposes. Most of its components are highly assembly at the factory, which saves installation time and cost.


  • ColorSilver, Black
  • MaterialAluminium, Steel

Anodized Aluminum Solar Carport Structure



Solar carport mounting system is designed for solar panel installation on parking areas,both for commercial and residential installation.The structures is made of high grade aluminum with anodized finishes which makes it super performance on corrosion resistance. They are come with pre-assembled,no on-site assembled requested,therefore, it is easy to install. In the meantime. It can be designed and engineered on each individual project,to ensure each project safe and cost-effective.



Technical Data

Install Site Open field area
Max Wind Speed ≤60m/s
Snow Load ≤1.4KN/M2
Tilt Angle 0-45 degree
Applicable Module Framed or frameless
Module Orientation Landscape, portrait
Standards AS/NZS 1170, ASCE 7-10, JIS2017
Material AL6005-T5, SUS304
Anti-corrosive Anodized
Color Silver, Black
Foundation
Concrete, Ground Screw
Warranty 12 years



Key Features

 - Using aluminum as main material can anti-corrosion well and stainless steel makes sure the intensity. Aluminum carport is more economicial solution than others.has anti-corrosion.

 - this solar pv carport system with functions of parking, producing green power, and it can full ultilize the space.

 - Rigorous test under harsh outdoor conditions;

-  Charging station can be optional to matched our carport mounts;

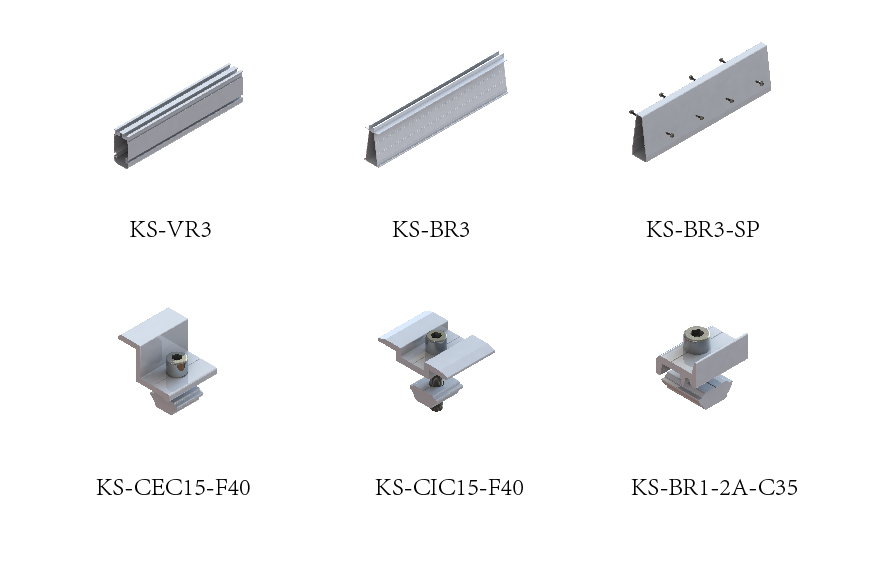

Components

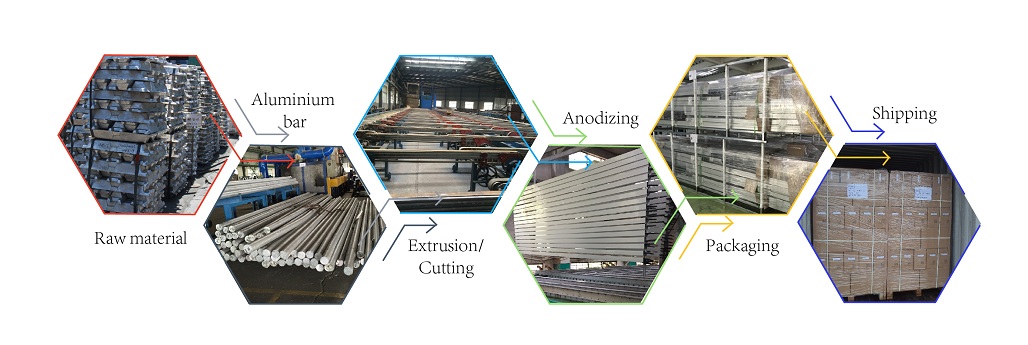

Production Process

Why choose Kingfeels ?

1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.

2. Full anodize for all components---offering 12 year warranty and 25 year life time.

3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
